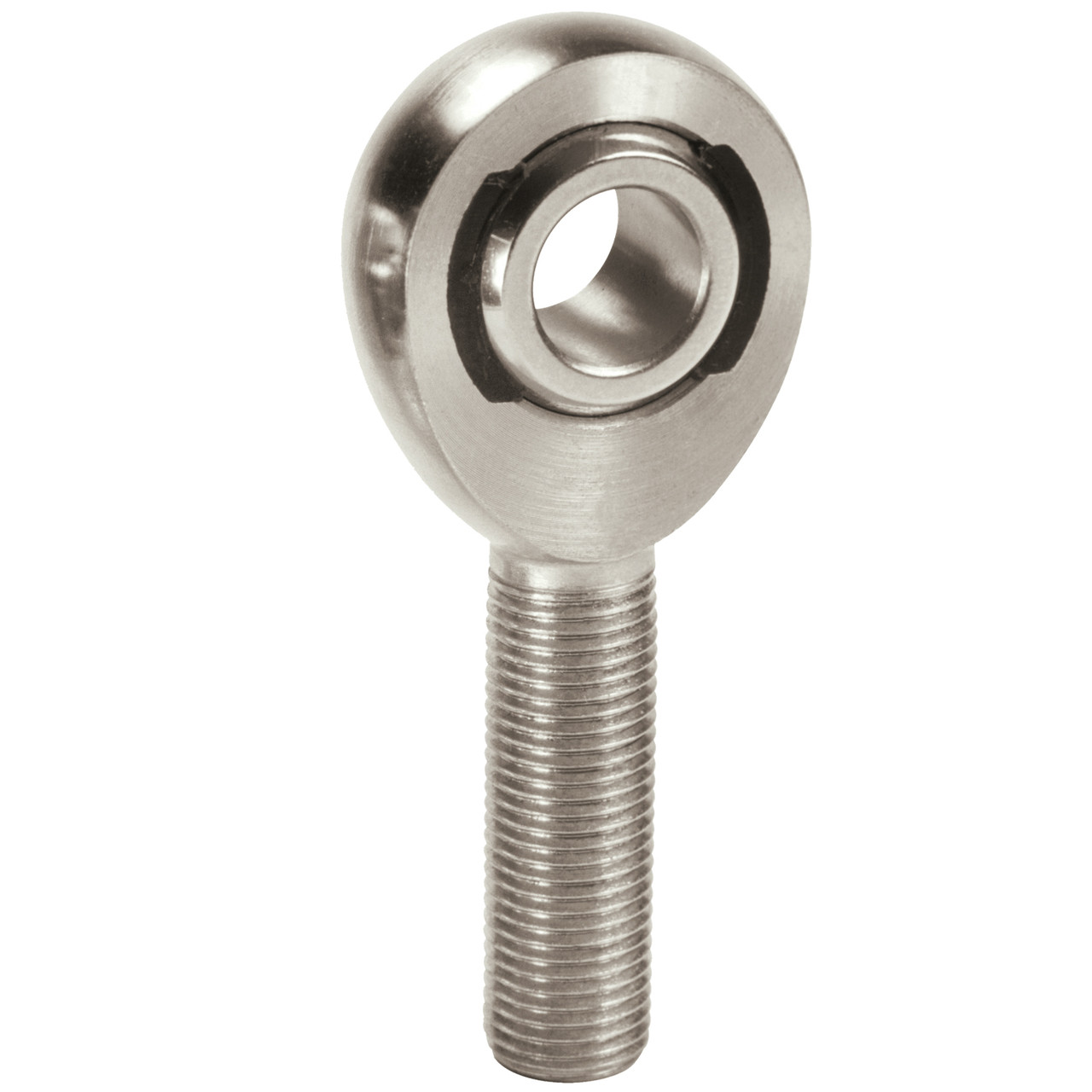

QA1 XMR12-14 XM Series Chromoly Male Rod End 3/4 Bore 7/8-14 Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XMR12-14
7 reviews
Sale Price

$38.68

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XMR12-14 is a heavy-duty chromoly steel male rod end from QA1's XM Endura Series, engineered for ultimate strength and performance in demanding motorsports applications. Featuring a unique loader slot design, this rod end delivers exceptional durability and is commonly used on 4-link suspension systems, ladder bars, and other high-stress linkage applications.

Advanced Loader Slot Design:

The XM Series utilizes QA1's exclusive loader slot construction, where the body is machined with a continuous groove around the interior. A reinforced Nylon 12 race with self-lubricating PTFE material is injection molded into the slot, creating a completely self-sealing and self-lubricating bearing that won't pound out like traditional liners. This design provides metal-to-metal support for heavy shock loads while maintaining smooth operation under low loads.

Key Specifications:

  • Bore Size: 3/4 inch (0.750 in)
  • Thread Size: 7/8-14 RH (right-hand)
  • Thread Length: 1.875 inches
  • Rod End Centerline Length: 3.375 inches
  • Head Diameter: 2.000 inches
  • Head Width: 0.875 inches
  • Misalignment Angle: 12 degrees
  • Static Load Capacity: 43,486 lbs

Premium Construction Features:

  • Ball: 52100 bearing steel, heat treated, hard chrome plated, and precision ground for maximum durability
  • Race: Reinforced Nylon 12 with self-lubricating PTFE for maintenance-free operation
  • Body: Heat treated chromoly steel with protective coating for corrosion resistance
  • Increased cross-sectional thickness for greater tensile strength
  • 2-piece construction for reliability
  • No grease fitting required - completely self-lubricating

The XMR12-14 combines race-proven performance with long-lasting durability, making it ideal for street performance, drag racing, off-road, and circle track applications where strength and reliability are paramount.

Products specifications

A (+/-0.015)

3.375

Approx Bearing Weight

0.88

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.875

D (+/-0.010)

2

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

3.375 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

2.000 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

43,486 lbs.

Rod End Static Load Capacity (lbs)

43,486 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

7/8-14 RH in.

T (+/-0.005)

0.687

Thread Length

1.875 in.

Thread Type

Right Hand

Thread UNF-3A

7/8 -14

UTL Radical Static

43486

W (+/-0.005)

0.875

Title

QA1 Suspension Rod End Bearing XMR12-14
