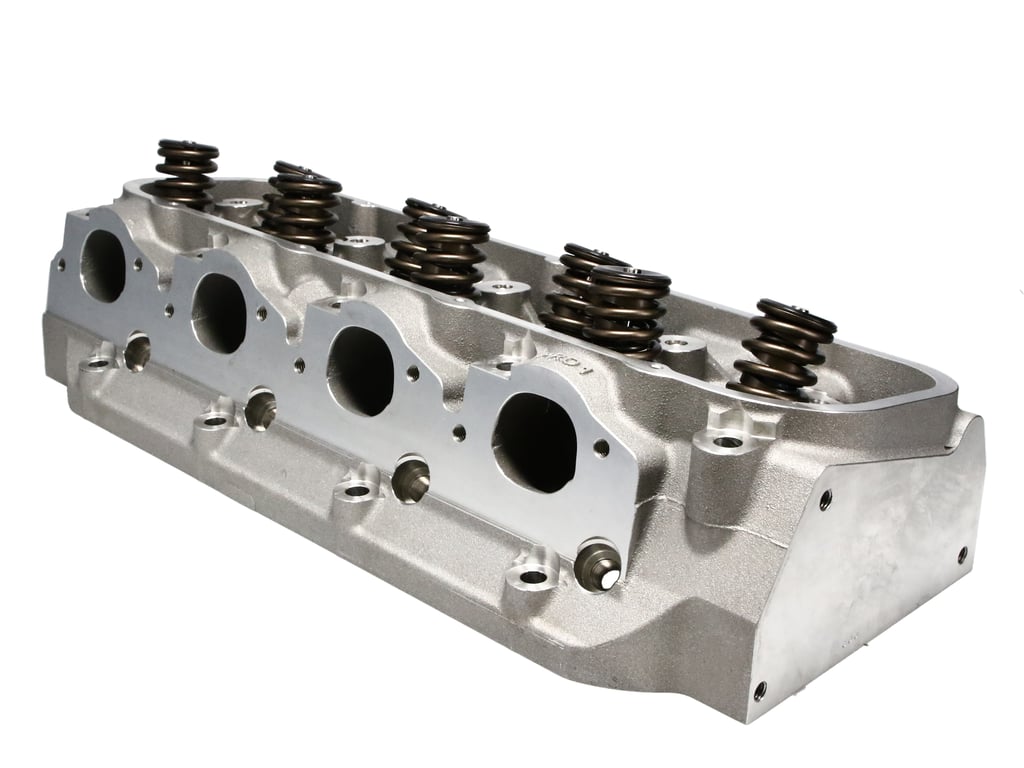

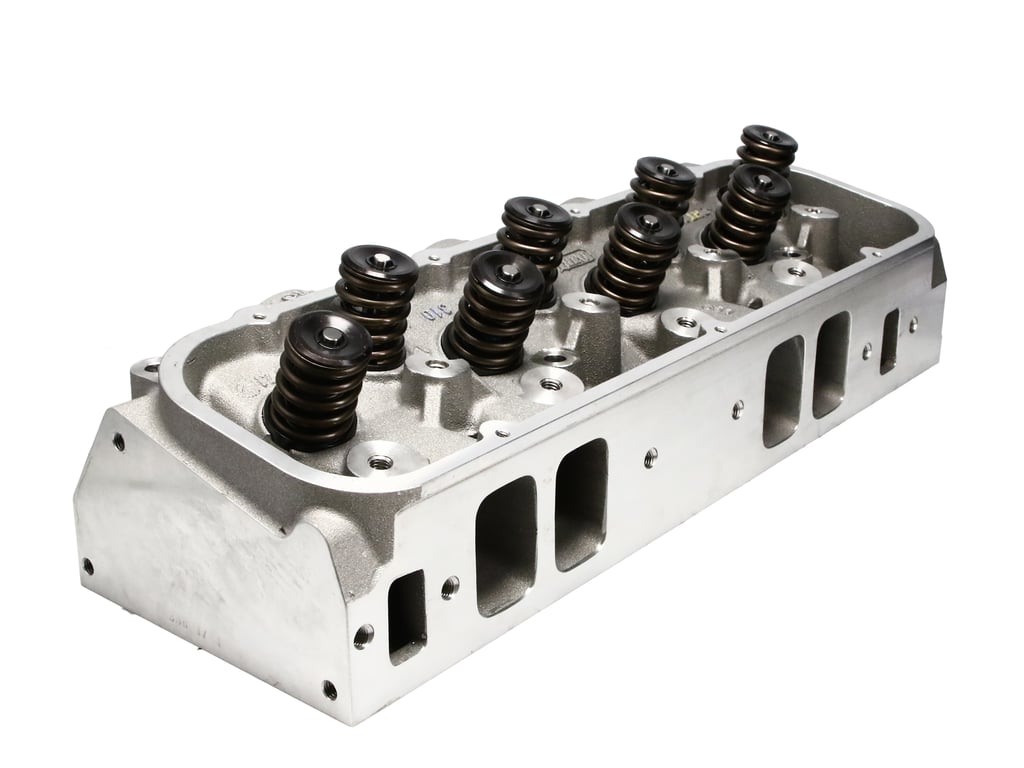

Dart 19100112 Cylinder Heads



FULLY CNC PORTED.

Pro 1 BBC 310 Cylinder Head

Every intake port, every exhaust port, every valve bowl and every combustion chamber is 100% CNC machined on special, dedicated Pro 1 castings. Our 5-axis computer controlled machining centers produce compound curves and complex shapes that no human could duplicate with a hand grinder.

Features:

  • Premium alloy: Dart aluminum heads are cast from virgin 355-T61 aerospace alloy for superior strength and integrity.
  • Bolt on compatibility: 2 degree rolled valve angle and standard spacing accommodates all stock accessories.
  • Heart shaped 121cc chambers improve combustion efficiency.
  • CNC machining ensures that every chamber has the same volume so that every cylinder maintains equal compression.
  • Raised spark plug location improves flame travel for a quicker, more complete burn, producing more power.
  • Multi-angle intake seats and radiused exhaust seats greatly improve air flow.
  • Hardened exhaust seats are compatible with unleaded gasoline.
  • Exhaust ports raised .300 to improve flow (requires 1 longer head bolts next to exhaust ports).
  • Spark plug holes are machined for gasketed 3/4 reach plugs.
  • Manganese bronze valve guides ensure long term reliability.
  • All cylinder heads sold individually.

Products specifications

Accessory Bolt Holes Drilled

Yes

Calculator

Compression Calculator

CNC-Machined Combustion Chamber

No

CNC-Machined Exhaust Runner

No

CNC-Machined Intake Runner

No

Comb Chamber

121cc

Combustion Chamber Style

Heart

Combustion Chamber Volume (cc)

119

Cylinder Head Finish

Natural

Cylinder Head Material

Aluminum

Cylinder Head Style

Assembled

Damper Spring Included

No

Exhaust Port Location

Raised

Exhaust Port Shape

Round

Exhaust Runner Volume (cc)

129cc

Exhaust Valve Angle

15

Exhaust Valve Diameter (in)

1.880 in.

Exhaust Valves Included

Yes

Guideplate Pushrod Size

3/8 in.

Guideplates Included

Yes

Heat Crossover

No

Intake Port Location

Standard

Intake Port Shape

Rectangular

Intake Runner Volume (cc)

310cc

Intake Runners

310cc

Intake Valve Angle

24

Intake Valve Diameter (in)

2.250 in.

Intake Valves Included

Yes

Lock Style

10 degree

Locks Included

Yes

Machined for O-Ring

No

Maximum Valve Lift (in)

0.690 in.

Notes

Exhaust flange will accept stock-type gasket.

Number of Springs Per Valve

Dual

Oiling Style

Through pushrod

Outside Diameter of Outer Spring (in)

1.550 in.

Quantity

Sold individually.

Retainer Material

Steel

Retainers Included

Yes

Rocker Arm Nut Thread Size

7/16-20 in.

Rocker Arm Nuts Included

No

Rocker Arm Studs Included

Yes

Rocker Arms Included

No

Steam Holes Drilled

No

Valve Cover Mounting Style

Perimeter bolt

Valve Guide Material

Manganese bronze

Valve Seat Machine Style

4-angle intake/3-angle exhaust

Valve Seat Material

Ductile iron

Valve Seats Machined

Yes

Valve Stem Seal Style

PC seal

Valves

2.250 Int / 1.880 Exh
