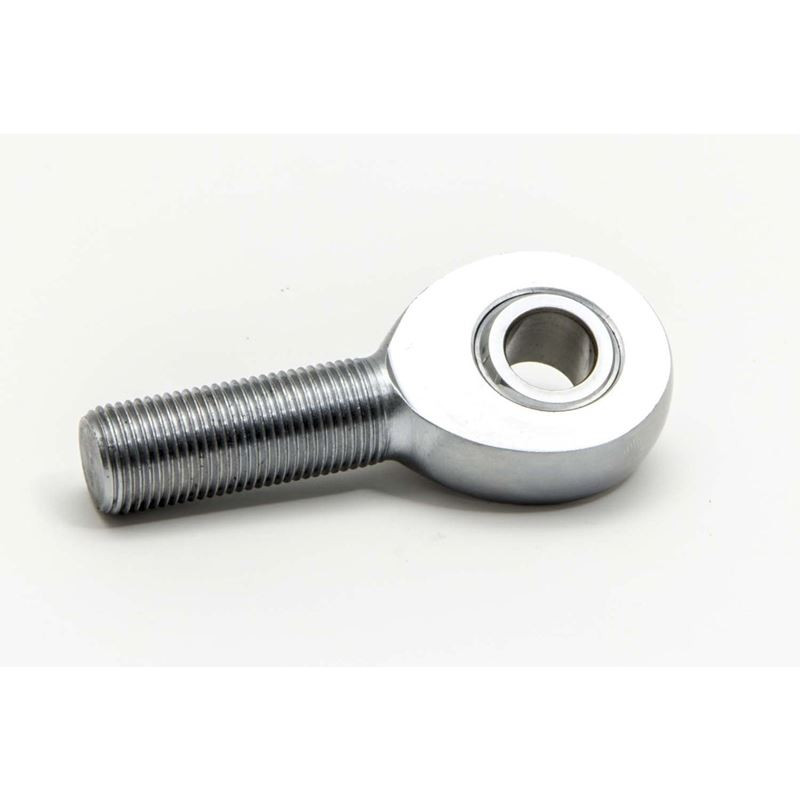

QA1 XMR10 XM Series Chromoly Rod End 5/8-18 Male Thread 5/8" Bore

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XMR10
16 reviews
Sale Price

$21.96

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XMR10 is a premium chromoly steel male rod end from the XM Series, featuring QA1's innovative loader slot design for superior strength and performance. This rod end has a 5/8 inch bore with 5/8-18 right-hand male threads, making it ideal for demanding suspension applications.

QA1's XM Series alloy/chromoly steel male rod ends deliver ultra-high strength and performance, commonly used in 4-link and ladder bar applications. The reinforced Nylon 12 injection molded race with self-lubricating PTFE helps keep out dirt and debris, resulting in metal-to-metal support for heavy shock loads and smooth operation for low loads.

Ball Construction:

  • 52100 bearing steel, heat treated and precision ground
  • Hard chrome plated for durability

Race Features:

  • Reinforced Nylon 12 with self-lubricating PTFE
  • Self-sealing to keep contaminants out
  • Won't pound out like traditional liners

Body Construction:

  • Heat treated alloy/chromoly steel
  • Protective coating for corrosion resistance

Key Features:

  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • 16 degree misalignment angle
  • 17,955 lbs static load capacity
  • 2-piece construction

Specifications: 0.625 inch bore diameter, 1.5 inch head diameter, 0.75 inch ball width, 2.625 inch centerline length, 1.625 inch thread length. The XM Series offers excellent overall value and provides the best performance for most motorsports applications.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.36

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.625

D (+/-0.010)

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

16

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.750 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

16 degrees

Rod End Static Load Capacity

17,955 lbs.

Rod End Static Load Capacity (lbs)

17,955 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

5/8-18 RH in.

T (+/-0.005)

0.562

Thread Length

1.625 in.

Thread Type

Right Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

17955

W (+/-0.005)

0.75

Title

QA1 Suspension Rod End Bearing XMR10
