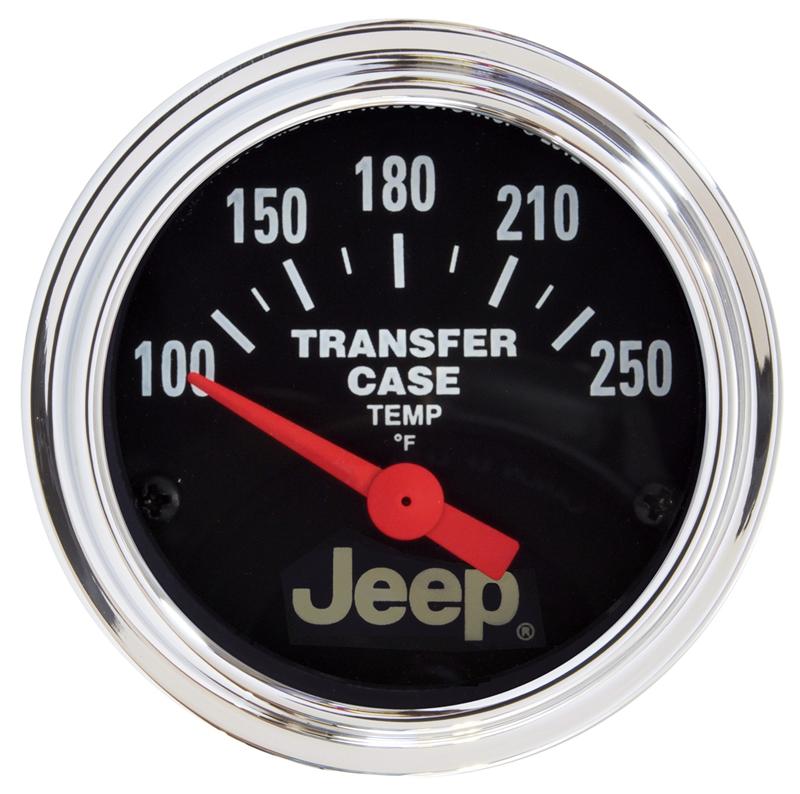

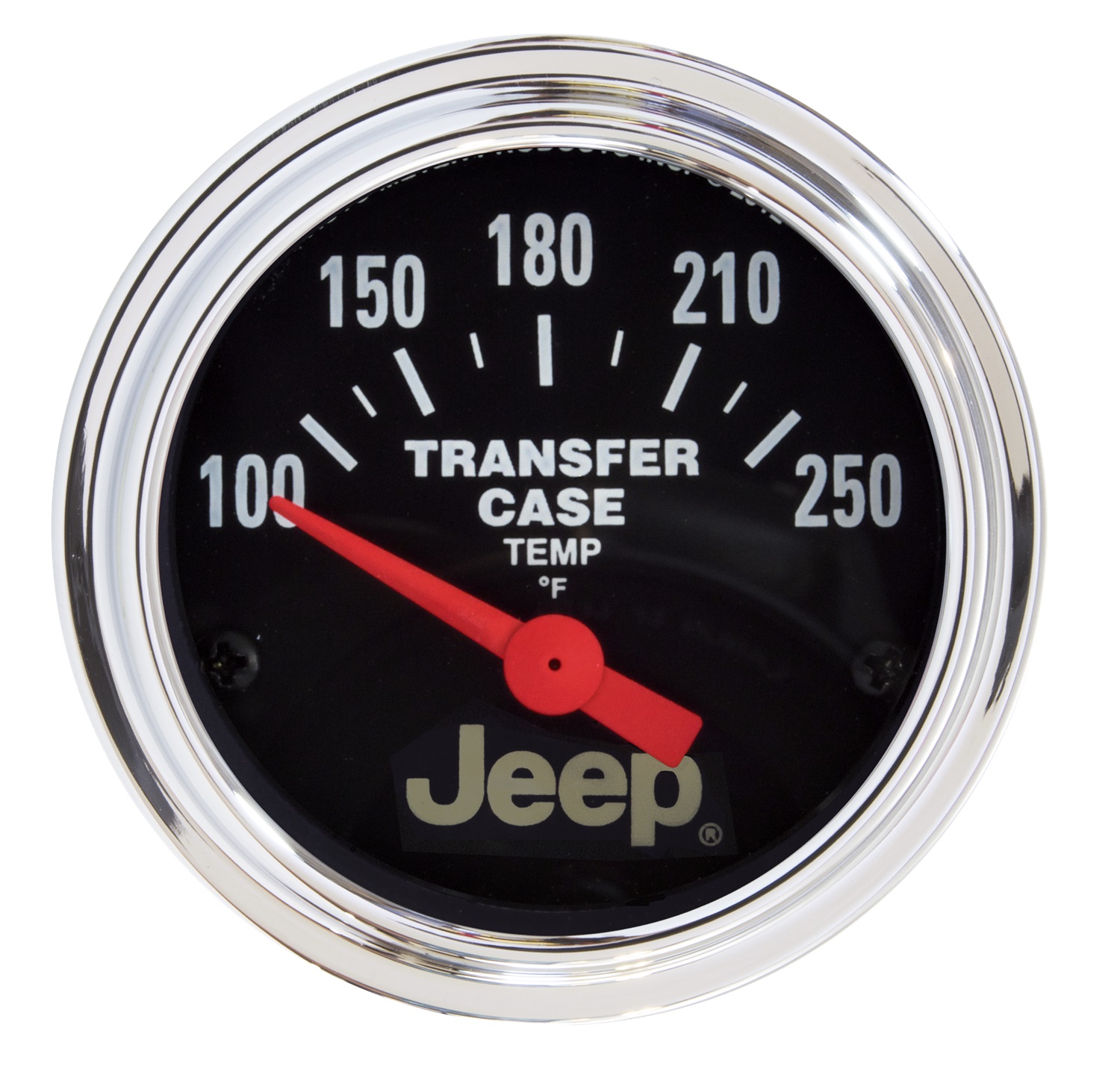

High transfer case temps mean the difference between having 4WD and not having 4WD. Monitoring this critical parameter ensures that your cooling system is performing properly and your transfer case will continue to transfer the power to all of the drivetrain. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender is included.
Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Incandescent Lighting Illuminates Around Perimeter Of Dial
12 And 16V Compatible
Incl. 1/8 in. NPT Temp Sender
Incl. 3/8 And 1/2 in. NPT Adapters
Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
Air-Core Electric Instruments Provide Quick And Accurate Readings
Dial Color : Black
Lens Style : Flat, Clear
Bezel Color : Chrome
Bezel Style : SAE
Size (Standard) : 2-1/16"
Cup/Hole Size (Standard) : 2-1/16"
Outer Bezel Diameter : 2-5/16"
Lighting Type : Incandescent
Lighting Color : White Incandescent
Pointer Color : Fluorescent Red
Movement : Electric, Air-Core
Gauge Type : Transfer Case Temperature
Range : 100-250 °F
