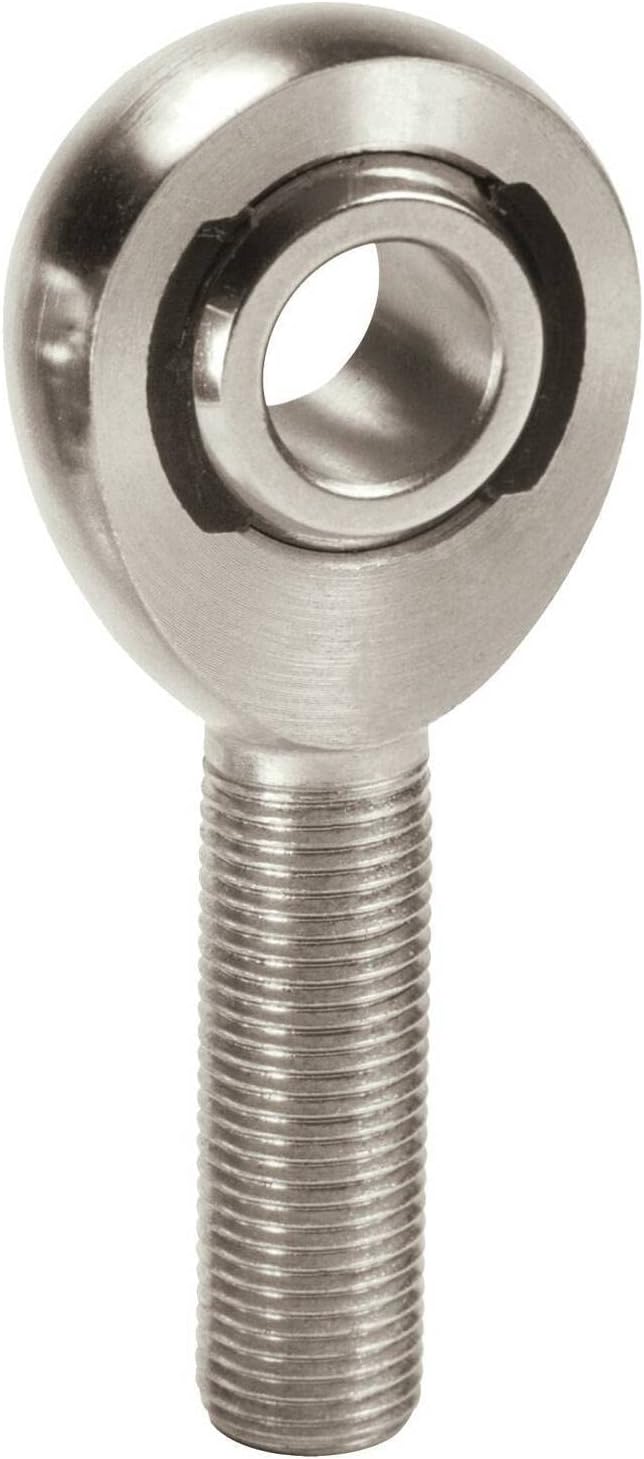

QA1 XMR8 X Series Chromoly Steel Male Rod End 1/2in Bore 1/2-20 RH Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XMR8
9 reviews
Sale Price

$17.13

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XMR8 is part of the XM Series alloy/chromoly steel male rod ends featuring a unique loader slot design that delivers ultra-high strength and performance. These heavy-duty rod ends are commonly used on 4-link and ladder bars for their exceptional strength and durability, making them ideal for high-performance suspension applications.

Loader Slot Technology:

The XMR8 features a reinforced Nylon 12 injection molded race with self-lubricating PTFE that keeps out dirt and debris while providing metal-to-metal support for heavy shock loads and smooth operation for low loads. This self-sealing and self-lubricating liner won't pound out like traditional designs, significantly extending the service life of the rod end.

Specifications:

  • Thread Size: 1/2"-20 RH (right-hand)
  • Bore Size: 0.500 in (12.7 mm)
  • Head Diameter: 1.312 in (33.3 mm)
  • Ball Width: 0.625 in (15.9 mm)
  • Thread Length: 1.500 in
  • Centerline Length: 2.438 in (61.9 mm)
  • Misalignment Angle: 12 degrees
  • Static Load Capacity: 16,238 lbs
  • Construction: 2-piece

Premium Component Construction:

  • Ball: 52100 bearing steel, heat treated, precision ground, and hard chrome plated
  • Race: Reinforced Nylon 12 with self-lubricating PTFE
  • Body: Heat-treated alloy/chromoly steel with protective coating for corrosion resistance

Key Features:

  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Self-sealing and self-lubricating design eliminates the need for grease fittings
  • Superior wear resistance compared to traditional three-piece rod ends
  • Precision ground components for smooth operation and long service life

The XM Series rod ends offer excellent overall value and provide the best performance for most motorsports applications. Sold individually without jam nut.

Products specifications

A (+/-0.015)

2.437

Approx Bearing Weight

0.24

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.5

D (+/-0.010)

1.312

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.438 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

16,238 lbs.

Rod End Static Load Capacity (lbs)

16,238 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

1/2-20 RH in.

T (+/-0.005)

0.5

Thread Length

1.500 in.

Thread Type

Right Hand

Thread UNF-3A

1/2 -20

UTL Radical Static

16238

W (+/-0.005)

0.625
