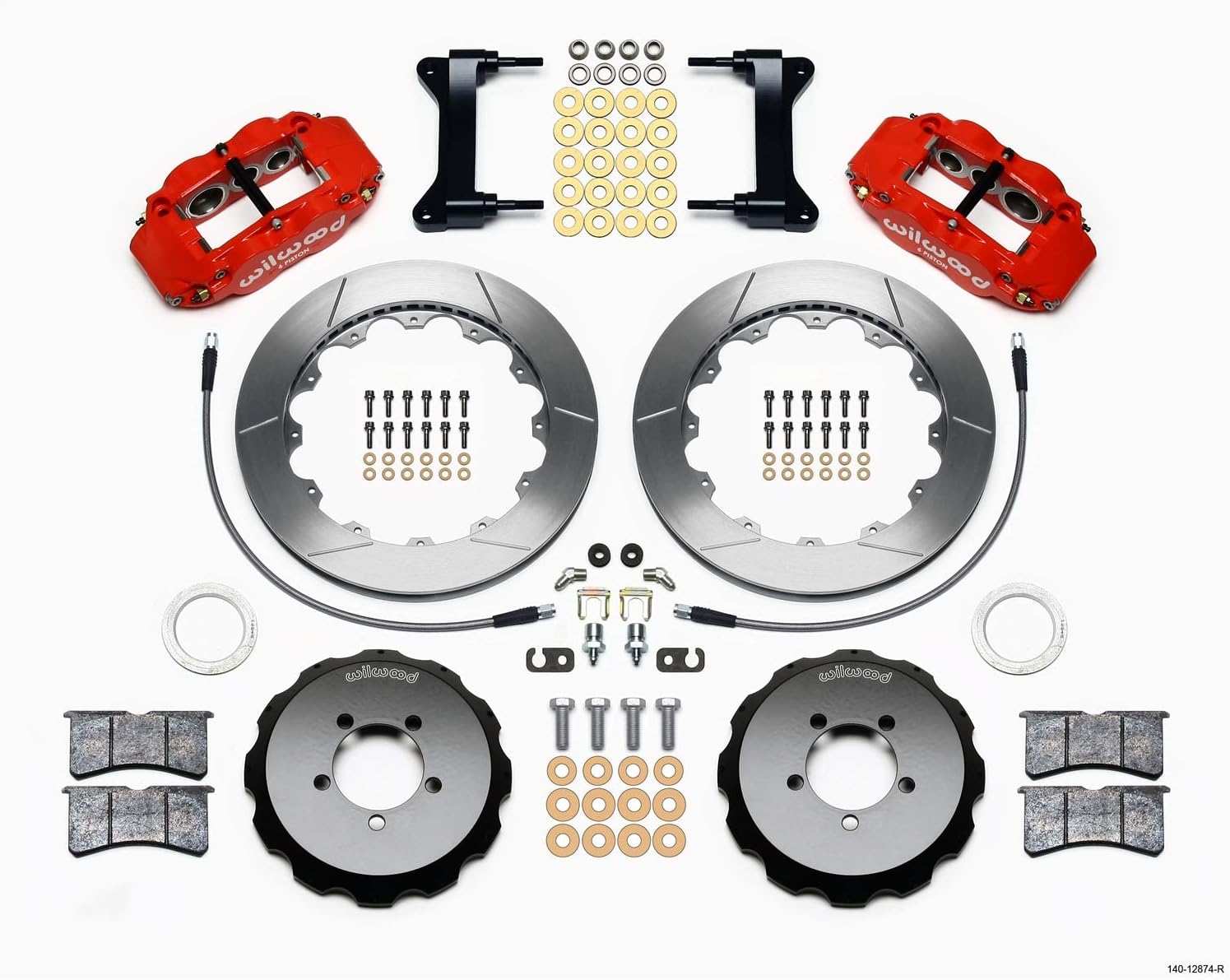

Wilwood 140-12874 Front Brake Hat Kit - FNSL6R 12.88 Inch 6-Piston

(1999-2016 Subaru Impreza; 2000-2002 Subaru Outback; 2001-2011 Subaru Forester; 2013-2021 Subaru WRX; 2000-2002 Subaru Legacy + 3 more models)

Manufacturer

Part Number

140-12874
Black Friday Price

$2,308.86

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 140-12874 FNSL6R Front Hat Kit features a 12.88-inch rotor diameter design engineered for high-performance braking applications. This big brake kit is built around Wilwood's Forged Narrow Superlite 6R six-piston caliper, delivering superior stopping power and heat dissipation for demanding street and track use.

Key Features:

  • Forged Narrow Superlite 6R (FNSL6R) six-piston caliper design for maximum clamping force
  • 12.88-inch rotor diameter provides increased thermal capacity and fade resistance
  • Application-specific engineering ensures compatibility with OE master cylinder output
  • Maintains full ABS functionality on equipped vehicles
  • Front axle brake hat kit configuration for simplified installation
  • Available with multiple caliper finish options for custom styling
  • Compatible with various rotor designs to match performance requirements

This front brake kit is designed for enthusiasts upgrading wheel, tire, and suspension packages on late model performance vehicles. The six-piston caliper provides increased pad contact area and improved modulation compared to factory brake systems, while the larger rotor diameter enhances heat management during aggressive driving. Engineered for bolt-on installation with vehicle-specific mounting solutions.

Products specifications

Fits

1999-2016 Subaru Impreza; 2000-2002 Subaru Outback; 2001-2011 Subaru Forester; 2013-2021 Subaru WRX; 2000-2002 Subaru Legacy; 2013-2021 Subaru WRX STI; 1986-1990 Buick Electra T-Type; 2005-2006 Saab 9-2X

Axle Offset

0

Caliper Color

Black Powder Coat

Caliper Style

6-Piston, Forged Narrow Superlite 6R

Kit Components

120-11779-BK, 120-11778-BK, 160-8166, 160-8165, 170-12845, 220-12857

Piston Area

4.04

Rotor Size

13.06x1.25in
