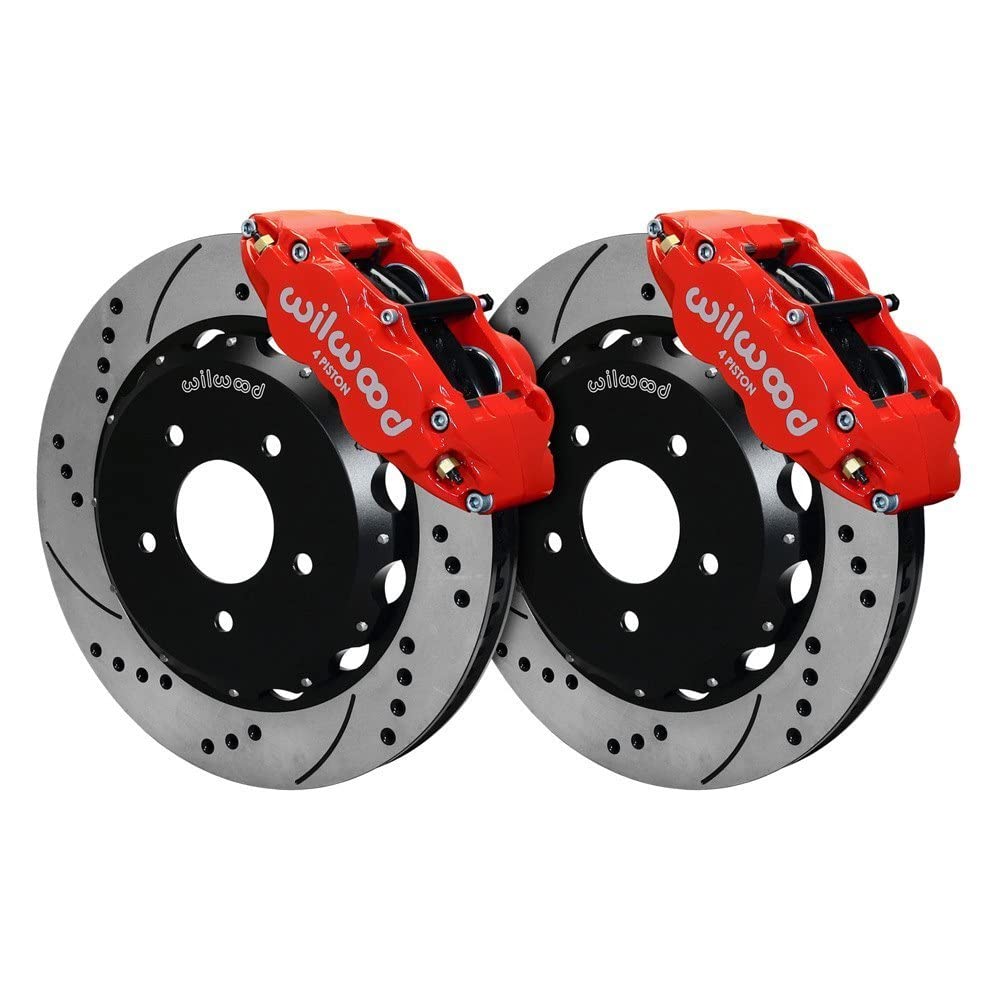

Wilwood 140-12440 BNSL4R Front Big Brake Hat Kit 14.00" Disc Brake Kit

(2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK)

Manufacturer

Part Number

140-12440
Sale Price

$2,411.90

In Stock (9)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 140-12440 BNSL4R Front Hat Kit is a 14-inch big brake upgrade kit engineered for high-performance street and off-road braking applications. Built around Wilwood's Forged Narrow Superlite 4-piston caliper, this kit delivers exceptional stopping power and fade resistance well beyond the capacity of factory brake systems.

Designed as a complete, application-specific solution, the BNSL4R kit is engineered for full compatibility with OE master cylinder output and ABS systems where equipped, ensuring a straightforward installation without the need for additional hydraulic modifications. The large 14.00-inch rotor diameter increases swept area and heat dissipation, reducing brake fade under demanding conditions — ideal for vehicles with larger wheels, tires, and suspension lift upgrades.

Key Features:

  • Forged Narrow Superlite 4R (BNSL4R) Caliper — Lightweight, high-strength forged billet aluminum construction with 4-piston design for even, consistent pad pressure
  • 14.00" Rotor Diameter — Increased rotor size for greater braking torque and improved thermal capacity over stock
  • OE Master Cylinder Compatible — Engineered to work within factory hydraulic system parameters; no proportioning valve or master cylinder upgrade required
  • ABS Compatible — Maintains full ABS functionality where applicable
  • Hat and Rotor Included — Precision-matched hat and rotor assembly for proper fitment and rotor alignment
  • Multiple Finish Options — Available in optional caliper finishes and rotor designs to personalize appearance and performance
  • Direct-Fit Application Specific Design — Simplified installation with all required brackets and hardware

The Wilwood 140-12440 BNSL4R front brake kit is a proven performance upgrade delivering the braking capacity needed to match aggressive wheel, tire, and suspension modifications while retaining street-legal functionality and OE system compatibility.

Products specifications

Fits

2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK

Axle Offset

0

Caliper Color

Black Powder Coat

Caliper Style

4-Piston, Forged Narrow Superlite 4R

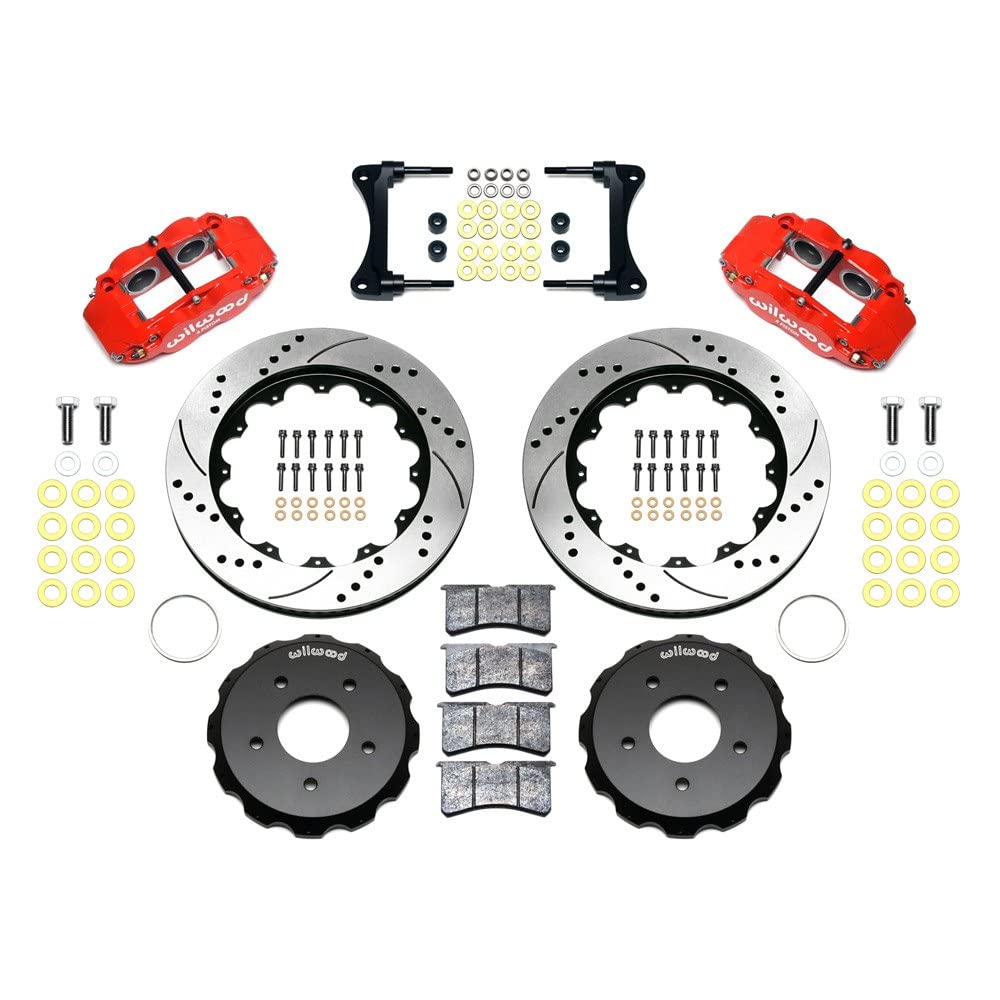

Kit Components

120-12501-BK, 120-12501-BK, 160-8399, 160-8398, 170-12399, 220-11237

Piston Area

4.8

Rotor Size

14x1.25in
