Wilwood 120-11871-BK Forged Billet Disc Brake Caliper - D154 Black

Manufacturer

Part Number

120-11871-BK
Sale Price

$214.92

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

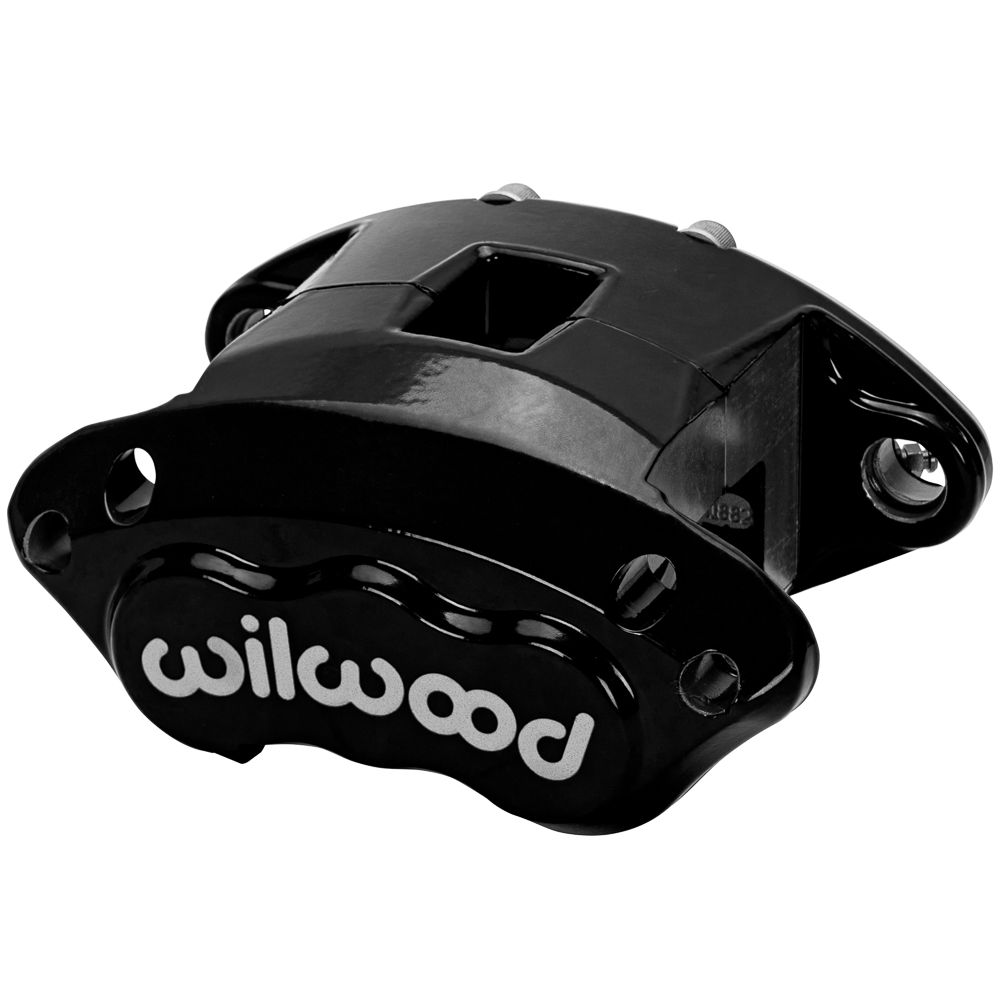

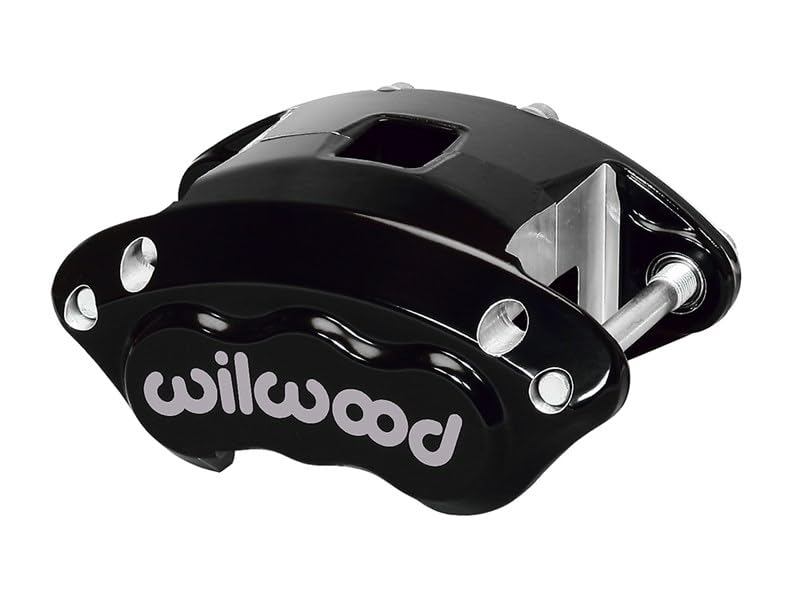

The Wilwood D154 Forged Billet Disc Brake Caliper (120-11871-BK) is a direct bolt-on, lightweight, high-strength replacement for OE cast iron calipers used on a wide range of factory disc brake-equipped mid-size GM cars and small trucks from 1978 onward. Finished in black, this caliper delivers extreme-duty performance in a significantly lighter and stronger package than the original equipment it replaces.

Piston Configuration:

Three piston configurations are available for the D154 platform:

  • Single piston: 2.50" large-bore design
  • Dual piston (Option 1): 1.62" / 1.62" two-piston configuration
  • Dual piston (Option 2): 1.12" / 1.12" two-piston configuration

Key Features:

  • Stainless steel pistons resist corrosion and retard heat transfer from brake pads into the caliper body
  • High-temperature square-faced bore seals provide controlled piston retraction and reliable sealing performance
  • Dampening rings fitted in the caliper slide pin holes to minimize noise from vibration
  • Dual bleed screws on both ends allow mounting in any position — left-hand or right-hand, front leading mount, or rear trailing mount
  • Forged billet aluminum construction delivers superior strength-to-weight ratio over cast iron OE calipers

The D154 is a proven performer with a long service life and a history of reliable operation across all driving environments, including extreme sustained high-temperature racing applications. Its versatile mounting configuration and dual bleed screw design make installation straightforward in virtually any brake system layout.

Products specifications

Caliper Color

Black Powder Coat

Caliper Style

1-Piston

Pad Type

D154

Piston Area

4.9

Position

Left/Right
