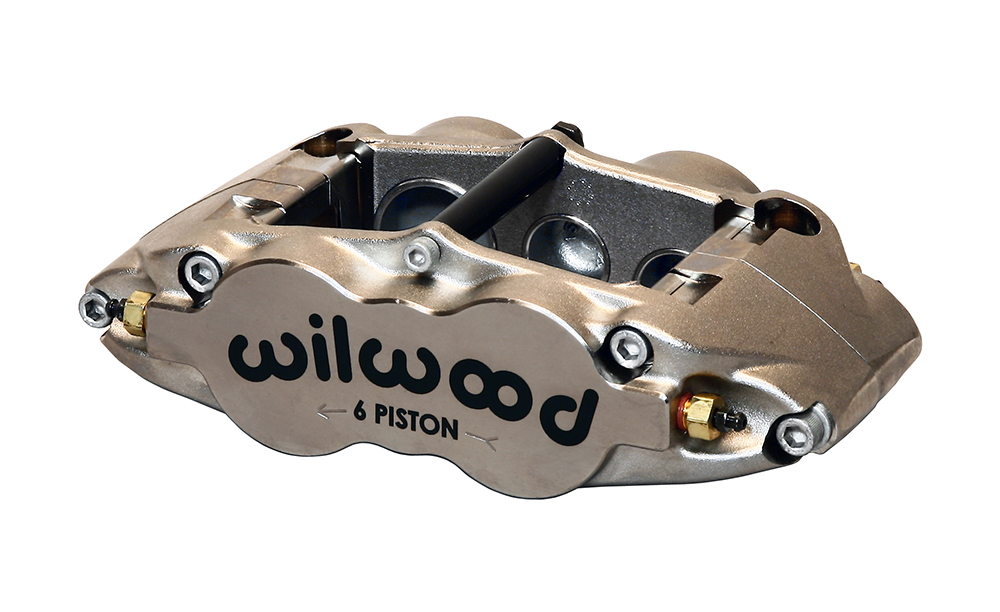

Wilwood 120-11778-N FNSL6R Six-Piston Forged Aluminum Brake Caliper Radial Mount Nickel Right-Hand

Manufacturer

Part Number

120-11778-N
Black Friday Price

$411.04

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 120-11778-N is a Forged Narrow Superlite 6R (FNSL6R) six-piston disc brake caliper in a striking nickel (Quick-Silver) finish. This right-hand radial mount caliper is a cornerstone of Wilwood's Big Brake kit lineup, combining race-proven engineering with a durable, corrosion-resistant exterior. Radial mounting simplifies installation and provides two planes of adjustment for precise alignment over the rotor.

The FNSL6R body is stress-flow forged from premium-grade aluminum alloy billets, a process that re-aligns the metal's internal grain structure to follow the contour of the caliper body. This eliminates the structural interruptions caused by straight-block billet machining, producing the strongest possible aluminum caliper body. Designed with the aid of computer-generated solid modeling and FEA (Finite Element Analysis) stress analysis, the result is an extremely rigid and efficient structure weighing just 4.9 pounds.

Key Features:

  • Six-piston differential bore configuration (1.62" / 1.12" / 1.12" pistons) for balanced clamping force and even pad wear under sustained high-heat conditions
  • One-piece stainless steel pistons standard — chosen for slow heat transfer and high corrosion resistance; upgradeable to Wilwood's Thermlock multi-part pistons for maximum thermal isolation
  • SRS (Self-Retracting Spring) bridge plates eliminate pad gouging wear on the caliper bridge, prevent pad rattle, and dampen harmonic vibrations that contribute to brake squeal
  • Two-piece bleed screw assemblies on each end with internal fluid crossovers — no exposed external fluid lines, protecting against track debris damage
  • High-temperature square-faced bore seals maximize sealing surface area and deliver controlled piston retraction on brake release
  • Nickel (Quick-Silver) finish — a premium plated appearance with enhanced corrosion protection
  • Compatible with 1.25" wide rotors
  • Sold individually — right-hand (RH) caliper
  • Compatible with the full range of Wilwood brake pad compounds to suit competition and street performance applications

The FNSL6R's Thermlock piston upgrade option creates a highly efficient thermal barrier between the brake pads and the caliper body, seals, and brake fluid — reducing the risk of heat-induced pedal fade and extending service intervals. Whether used in road racing, autocross, or demanding street performance builds, the Wilwood 120-11778-N delivers the stopping power and reliability of a true Big Brake caliper in a refined nickel finish.

Products specifications

Caliper Color

Nickel Plate

Caliper Style

6-Piston

Pad Type

7416

Piston Area

4.04
