Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch

Part of: Weld Racing Wheels Draglite Polished Aluminum Wheel

Other options in this family: Weld Racing Wheels 90-58350 Weld Racing Wheels 90-510348 Weld Racing Wheels 90-510350 Weld Racing Wheels 90-57348 Weld Racing Wheels 90-510354

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

90-515350
5 reviews
Sale Price

$569.00

Estimated ship date Tuesday, November 24

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch
Picture of Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch
Picture of Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch
Picture of Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch
Picture of Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch
Picture of Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch

Wheels and Tires sold separately

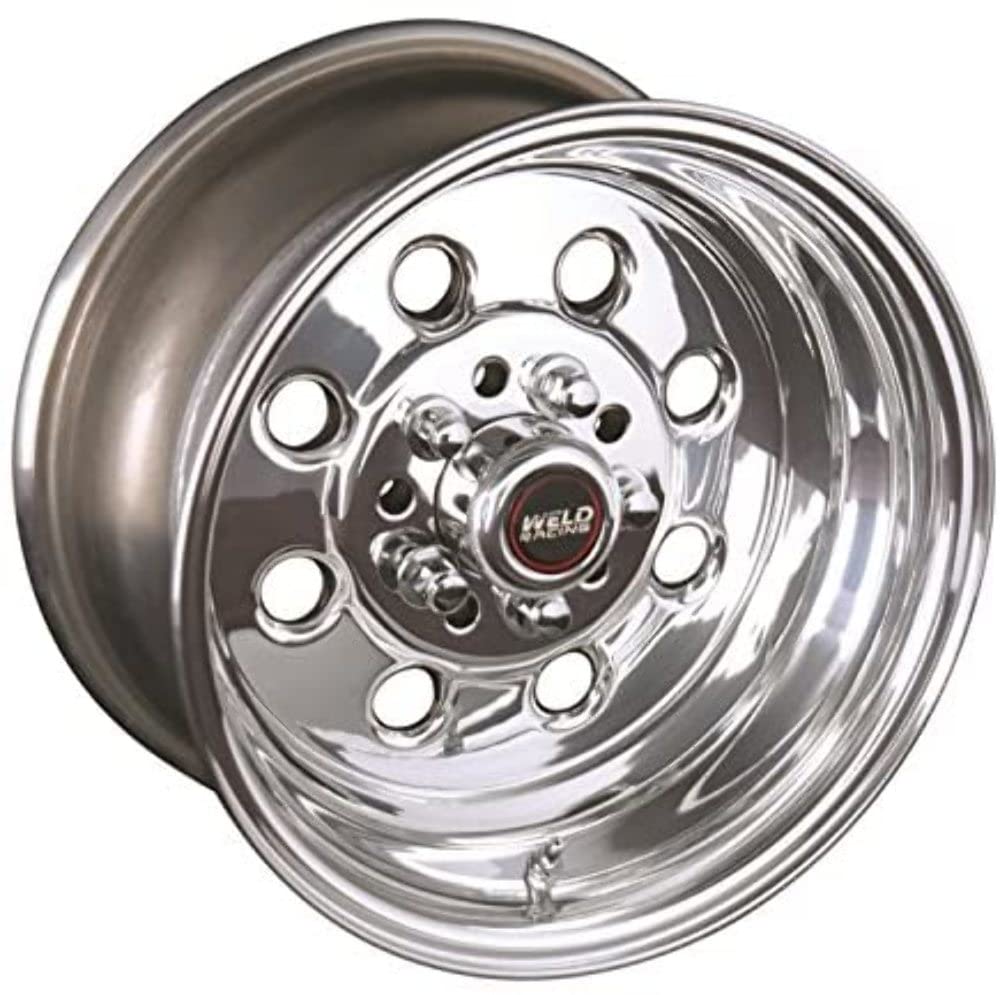

Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch — image 1

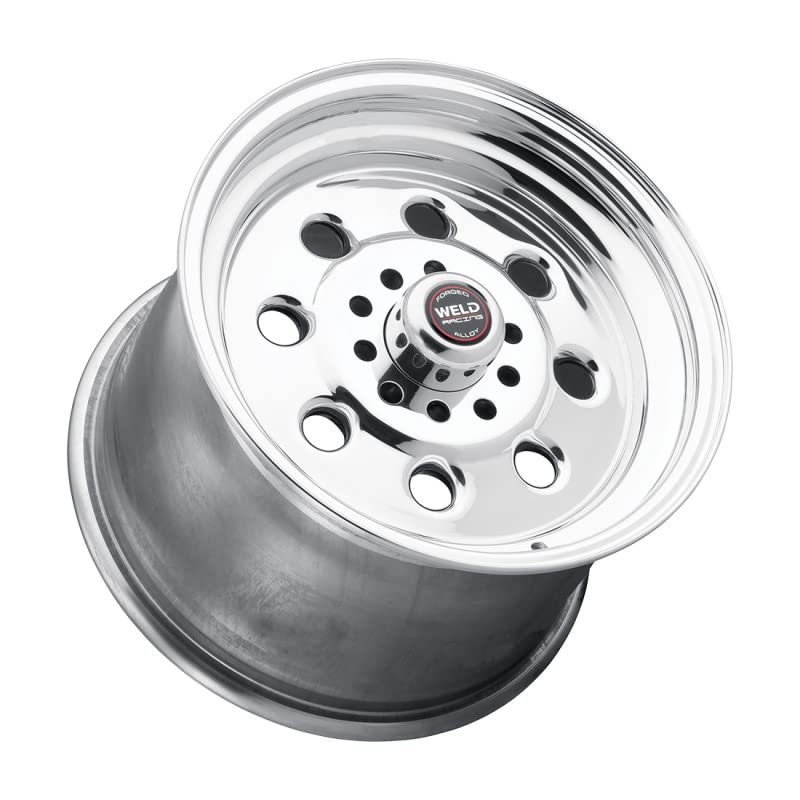

Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch — image 2

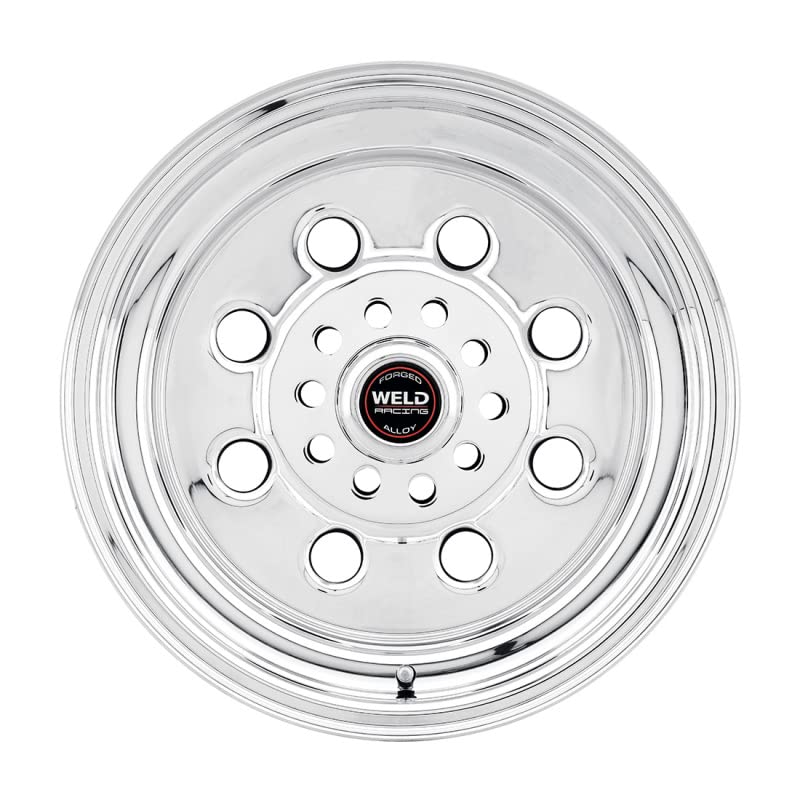

Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch — image 3

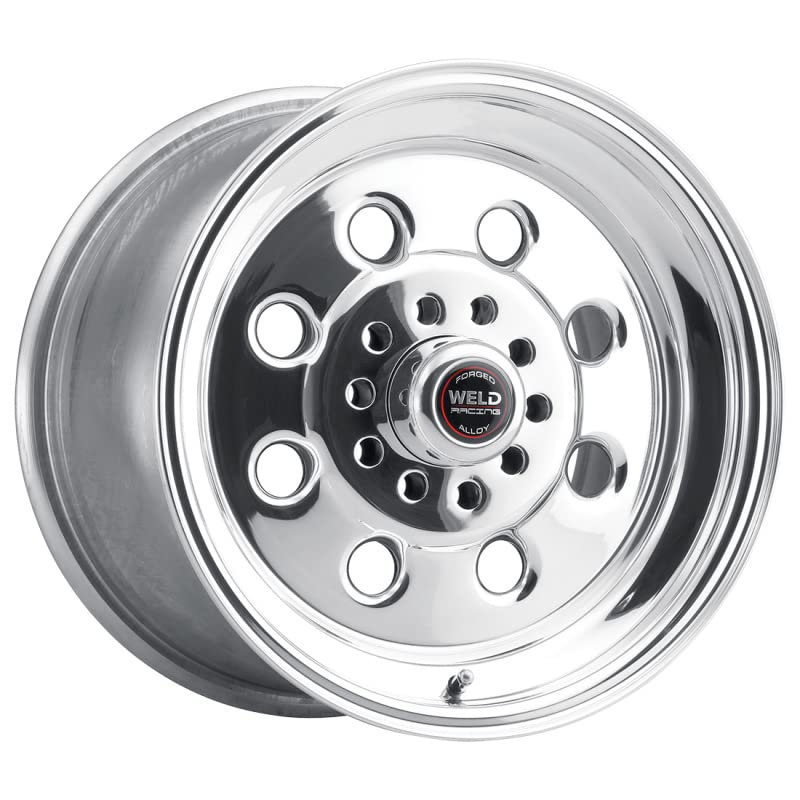

Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch — image 4
Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch — image 5
Weld Racing Wheels 90-515350 Draglite Polished Aluminum Wheel - 15x15 Inch — image 6
Product Details

The Weld Racing Draglite is a classic design for street and strip applications, featuring a timeless look that is one of the most well-known and established wheel designs in the industry. This model features 15 inch diameter by 15 inch width, with a 5 x 4.50/4.75 inch bolt circle and 5.50 inch backspace.

Key Features:

  • Cold-forged aluminum construction makes these wheels strong and lightweight—up to 40 percent lighter than other comparable race wheels
  • Two-piece wheel design uses revolutionary cold-forged and welded construction for superior strength-to-weight ratio
  • Built to take the abuse of street driving while reducing unsprung weight to help lower ETs and improve handling
  • Brilliant polished finish for show-quality appearance
  • Push-through center cap and valve stem included with every wheel
  • Rated for street and strip use up to 8 second, 160 MPH drag cars
  • Maximum load rating of 1200 lbs per wheel for street applications

Made in the U.S.A. Requires mag-style lug nuts with 1.310 to 1.375 inch shank length (sold separately). Sold individually.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

5.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Draglite Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

-63.00mm

Offset (mm)

-63.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

No

Washer Outside Diameter (in)

1.250 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

15.00 in.
