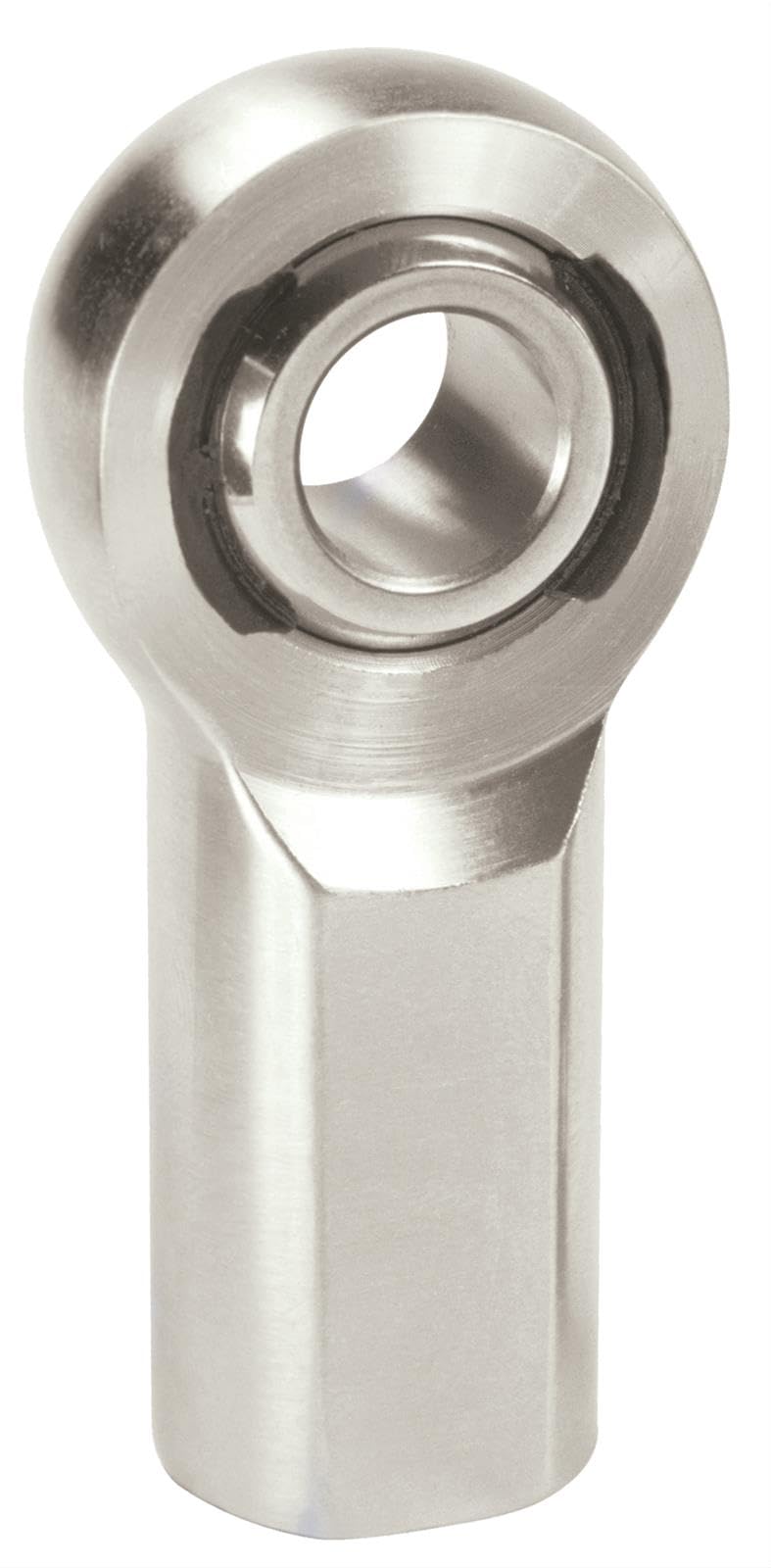

QA1 XFR16 Chromoly Steel Female Rod End

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XFR16
6 reviews
Sale Price

$103.04

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XFR16 is a premium chromoly steel female rod end from the XF Endura Racing Series, designed to deliver maximum strength and durability in demanding motorsports applications. Featuring QA1's innovative loaded slot design, this rod end utilizes a machined groove around the interior body where a Nylon/PTFE material is injection molded to create a self-sealing, self-lubricating race that keeps dirt and debris out while eliminating the pounding out issues common with traditional PTFE liners.

Key Features:

  • Chromoly steel body construction, heat treated for maximum strength
  • 52100 bearing steel ball that is heat treated, hard chrome plated, and precision ground
  • Nylon/PTFE injection molded race provides self-lubricating and self-sealing protection
  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Protective coating for corrosion resistance
  • Female thread configuration for versatile mounting options

Commonly used on 4-link and ladder bar suspension setups, the XF Series represents the ultimate in performance rod ends where strength and longevity are critical. The loaded slot design prevents race migration and wear, significantly extending service life compared to traditional three-piece rod ends.

Products specifications

A (+/-0.015)

4.125

Approx Bearing Weight

2.11

B (+0.0015/-0.0005)

1

Ball Dia Ref

1.875

C (+0.062/-0.031)

2.125

D (+/-0.010)

2.75

E (+/-0.010

1.625

F (+/-0.010)

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

17

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

4.125 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

1.000 in.

Rod End Head Diameter

2.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

17 degrees

Rod End Static Load Capacity

76,200 lbs.

Rod End Static Load Capacity (lbs)

76,200 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

1 1/4-12 RH in.

T (+/-0.005)

1

Thread Length

2.125 in.

Thread Type

Right Hand

Thread UNF-2B

1-1/4 -12

UTL Radical Static

76200

W (+/-0.005)

1.375

Title

QA1 Suspension Rod End Bearing XFR16
