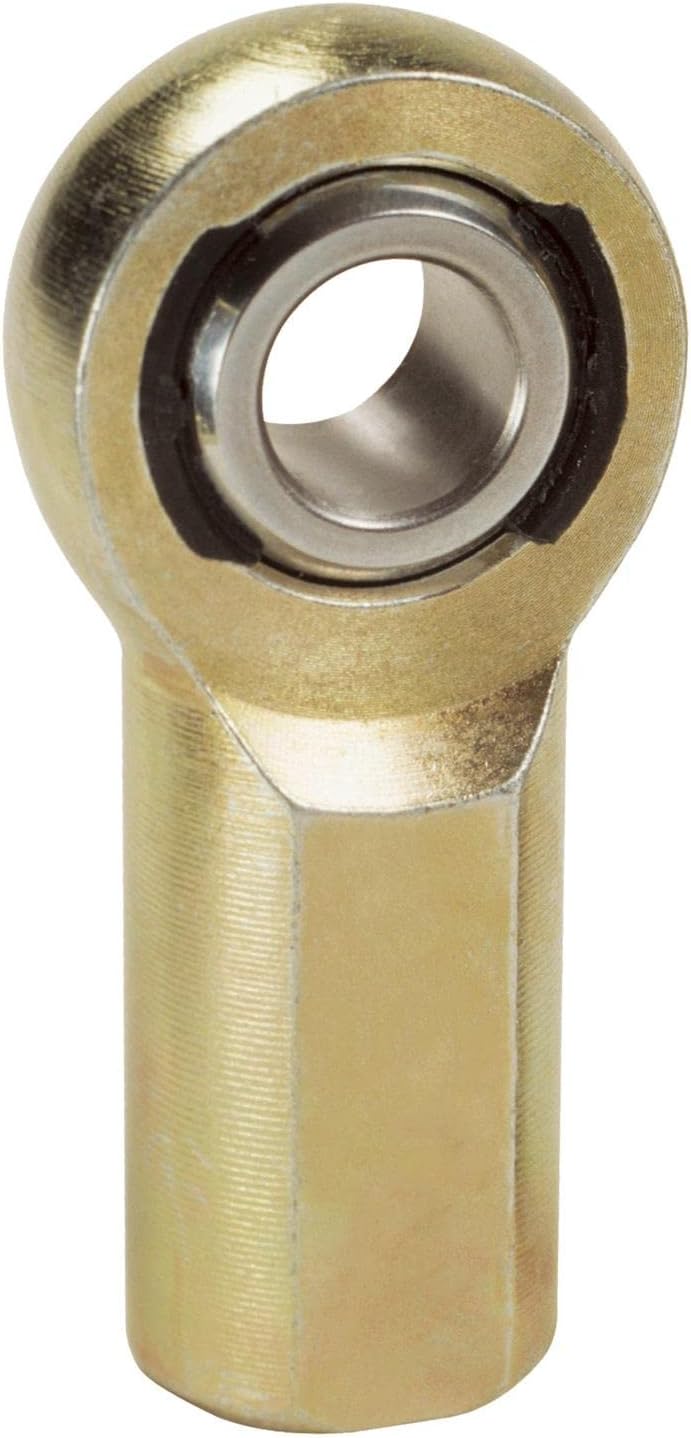

QA1 EXFR8 EX Series Carbon Steel Female Rod End 1/2in Bore 1/2-20 RH Thread

Part of: QA1 Carbon Steel Rod End

Other options in this family: QA1 Precision Products EXMR8-10 QA1 Precision Products EXFL8 QA1 Precision Products EXML6S QA1 Precision Products EXML6-7S

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

EXFR8
9 reviews
Sale Price

$12.85

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 EXFR8 is a carbon steel female rod end from QA1's EX Series, offering an economical alternative to chromoly steel while delivering exceptional performance and durability. Part of the innovative Endura Racing Series, this rod end features a unique loaded slot design that provides superior strength and longevity compared to traditional rod ends.

Loaded Slot Design Technology:

The body is machined with a precision groove around the interior. After the ball is inserted into the slot, a reinforced Nylon/PTFE material is injection molded to create a race that serves multiple functions. This race acts as a self-lubricating bearing surface while simultaneously sealing out dirt and debris. Unlike traditional PTFE liners that can pound out over time, the injection molded race maintains its integrity for extended service life.

Key Specifications:

  • Bore diameter: 1/2 inch
  • Thread size: 1/2-20 right-hand female
  • Self-sealing and self-lubricating design
  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength

Ball Construction:

  • 52100 bearing steel
  • Heat treated for maximum strength
  • Hard chrome plated for wear resistance
  • Precision ground for smooth operation

Race Material:

  • Nylon/PTFE injection molded compound
  • Self-lubricating for maintenance-free operation
  • Self-sealing to keep contaminants out
  • Won't pound out like traditional liners

Body Construction:

  • Carbon steel (alloy steel per manufacturer's option)
  • Protective coated for corrosion resistance
  • Increased wall thickness for superior strength

Applications:

Ideal for control arms, panhard bars, 4-link rods, circle track trailing arms, and pullbars where economical performance is needed. The EX Series provides excellent value for applications where the extreme strength of chromoly isn't required but reliability and longevity are still essential.

Products specifications

A (+/-0.015)

2.125

Approx Bearing Weight

0.31

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.187

D (+/-0.010)

1.312

E (+/-0.010

0.875

F (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

10,001 lbs.

Rod End Style

PTFE/KEVLAR® lined

Rod End Thread Size

1/2-20 RH in.

T (+/-0.005)

0.5

Thread Length

1.187 in.

Thread Type

Right Hand

Thread UNF-2B

1/2 -20

UTL Radical Static

10001

W (+/-0.005)

0.625

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
