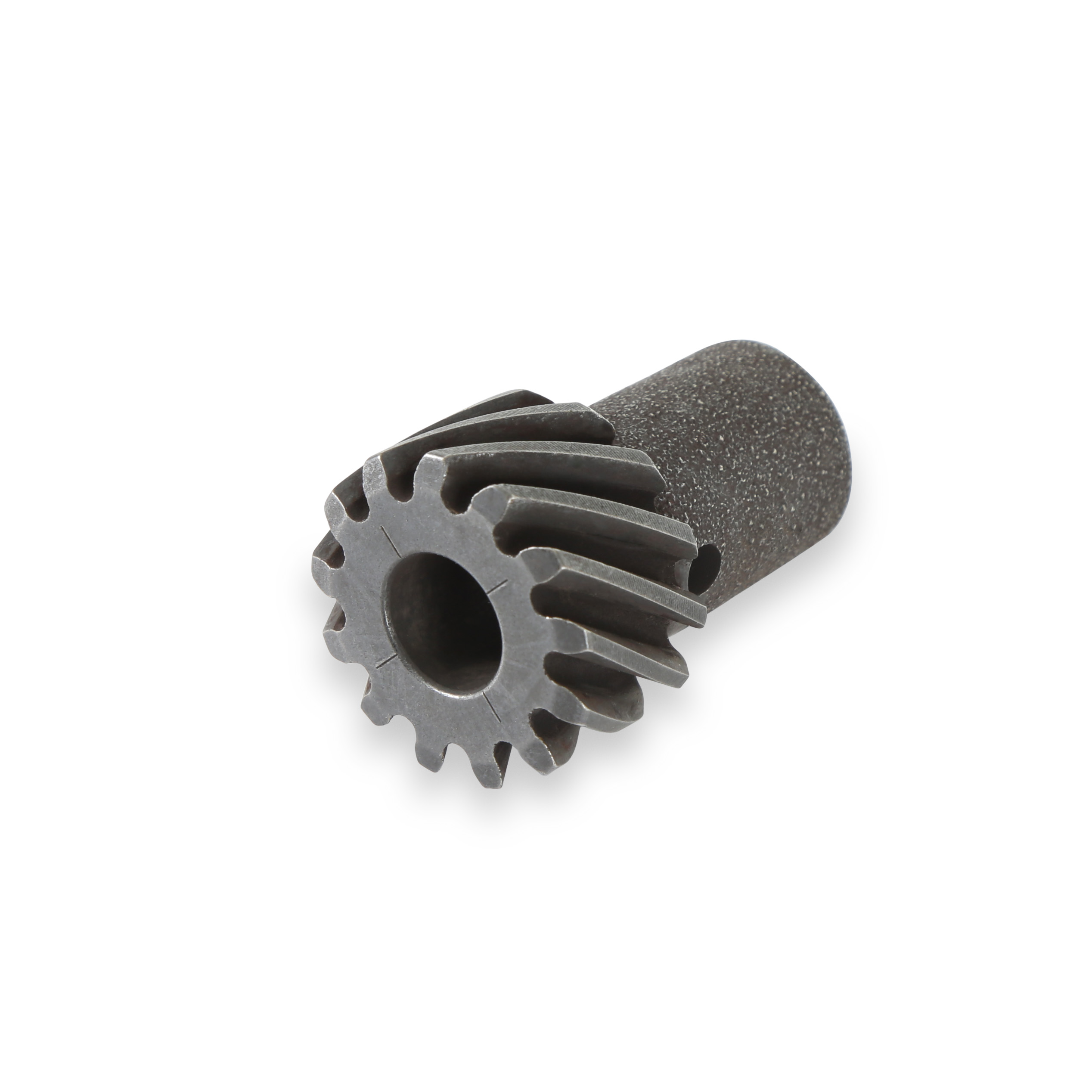

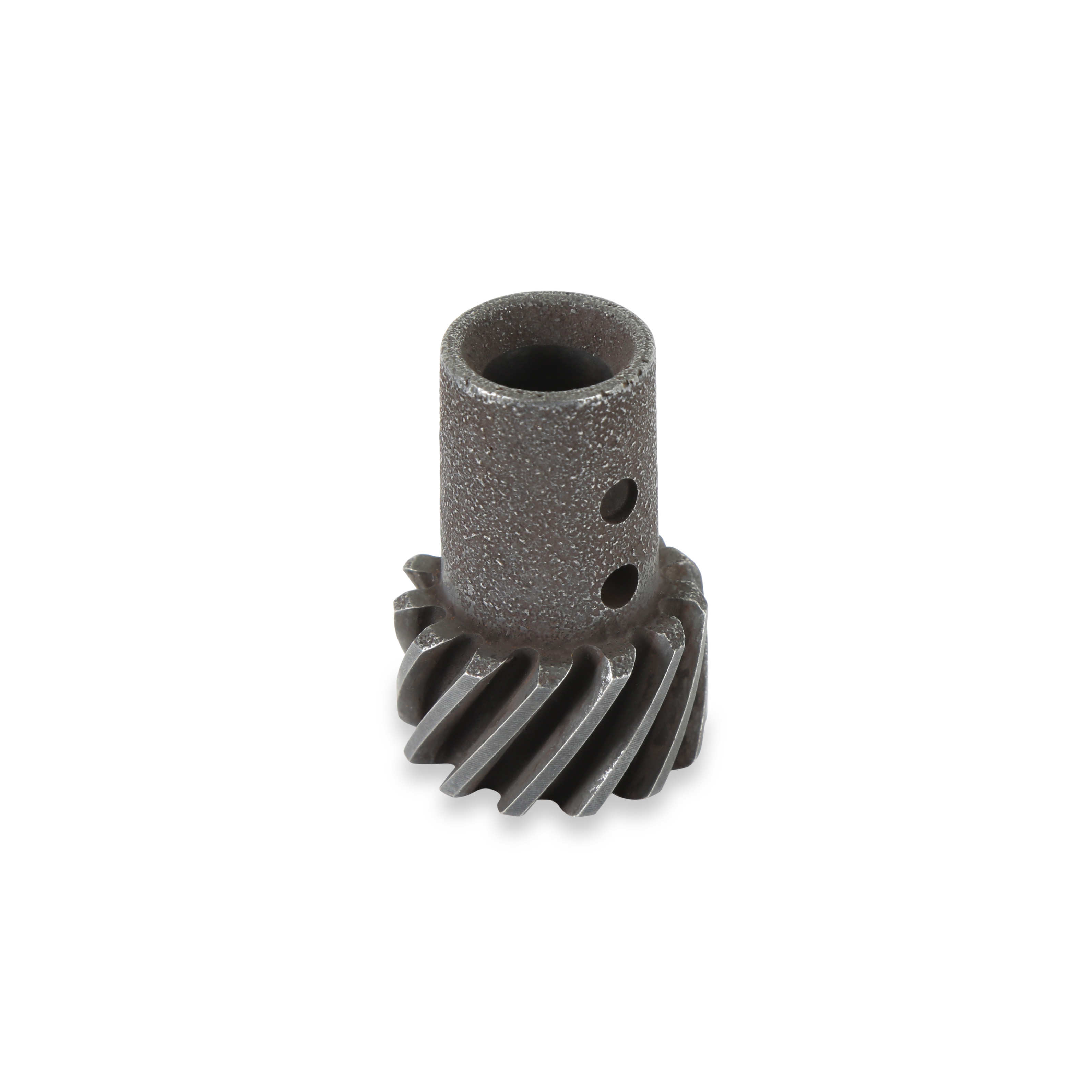

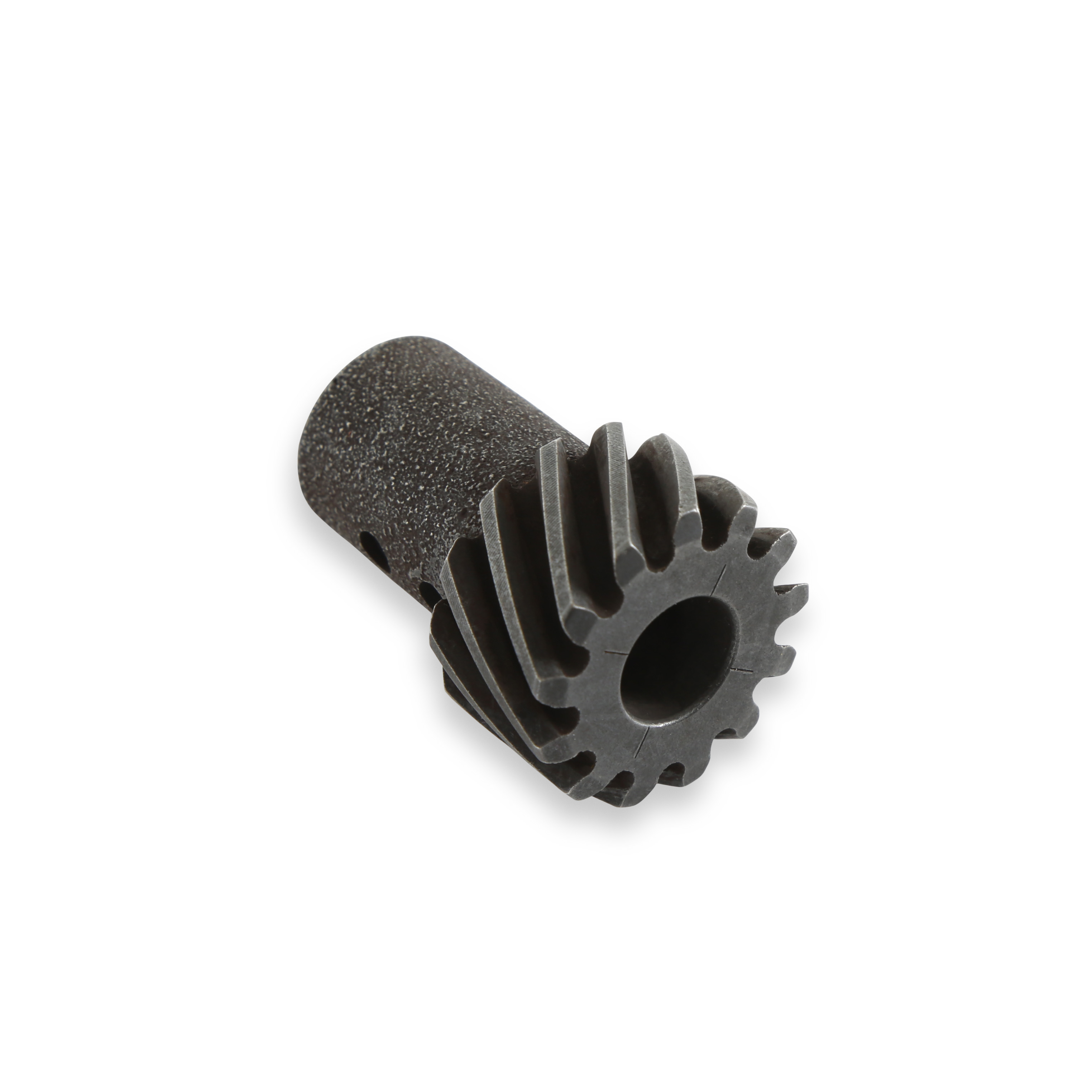

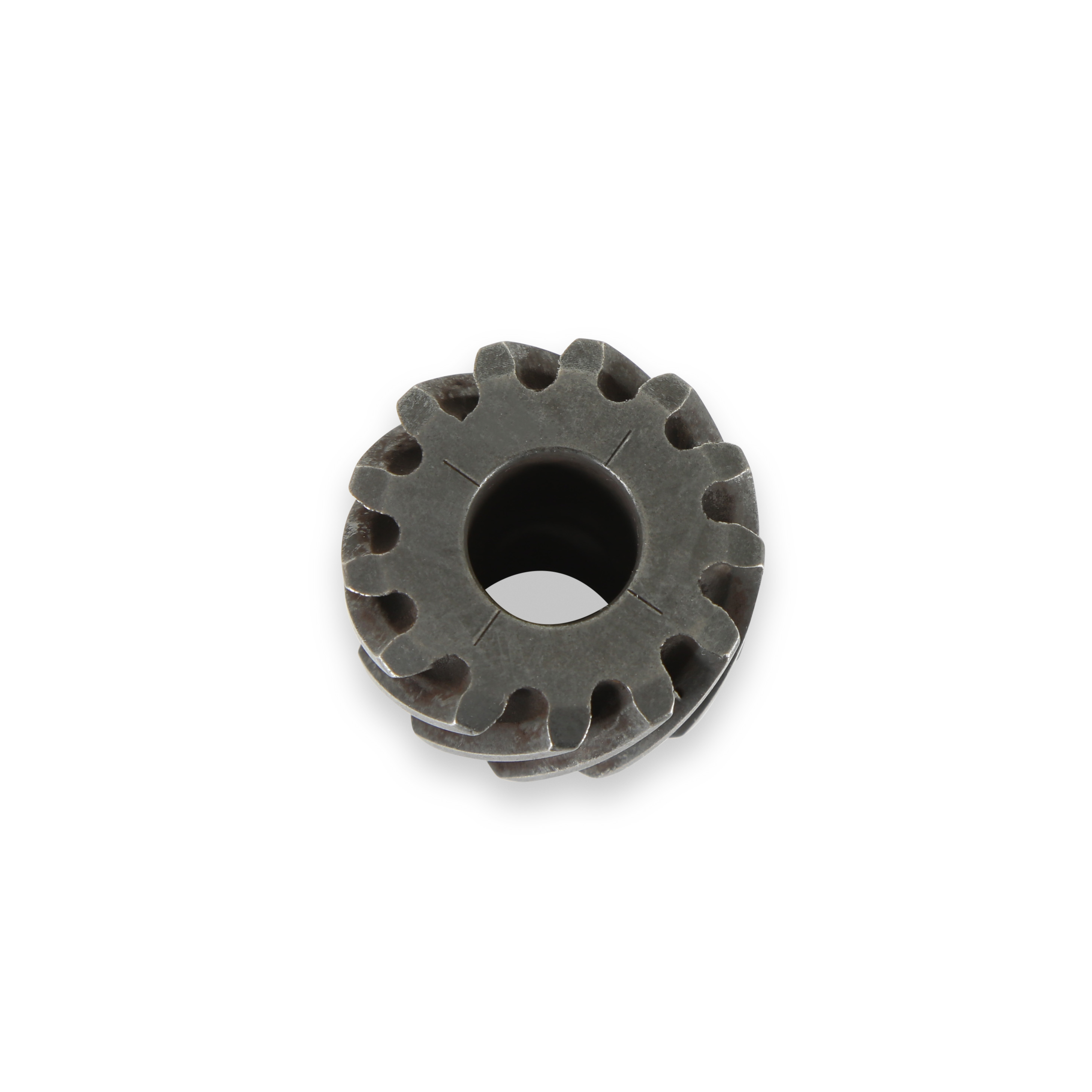

MSD 8561 Iron Melonized Distributor Gear for Chevy Marine Distributors

Manufacturer

Part Number

8561
Sale Price

$108.85

3 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MSD 8561 is a high-grade ductile iron distributor drive gear engineered specifically for MSD Chevy marine distributors. A distributor's performance is only as good as its drive gear, and MSD has invested extensive research and testing into the metallurgical composition, heat treatment, and surface coatings of this gear to deliver long service life, a smooth initial break-in, and dependable ignition timing accuracy.

MSD engineers developed purpose-built test fixtures with variable RPM and oil pressure control to simulate real-world operating conditions, pushing gears to extreme loads at speeds up to 10,000 RPM. The result is a proprietary iron alloy gear treated to a low-friction Melonite QPQ coating process — engineered for use with hydraulic roller camshafts on aftermarket distributors with a 0.500" diameter shaft.

Key Features:

  • Proprietary formulated ductile iron — precision-machined for consistent quality and strength
  • Micro-polished surface — promotes smooth gear-to-cam contact from the first start
  • Increased outer hardened layer thickness (RC 55–60) — enhanced durability under sustained load
  • Melonite QPQ coating — reduces friction and minimizes initial break-in wear
  • Interstitial carbide concentration — improves overall wear resistance and long-term running characteristics
  • 0.500" shaft inside diameter — fits aftermarket MSD Chevy marine distributors

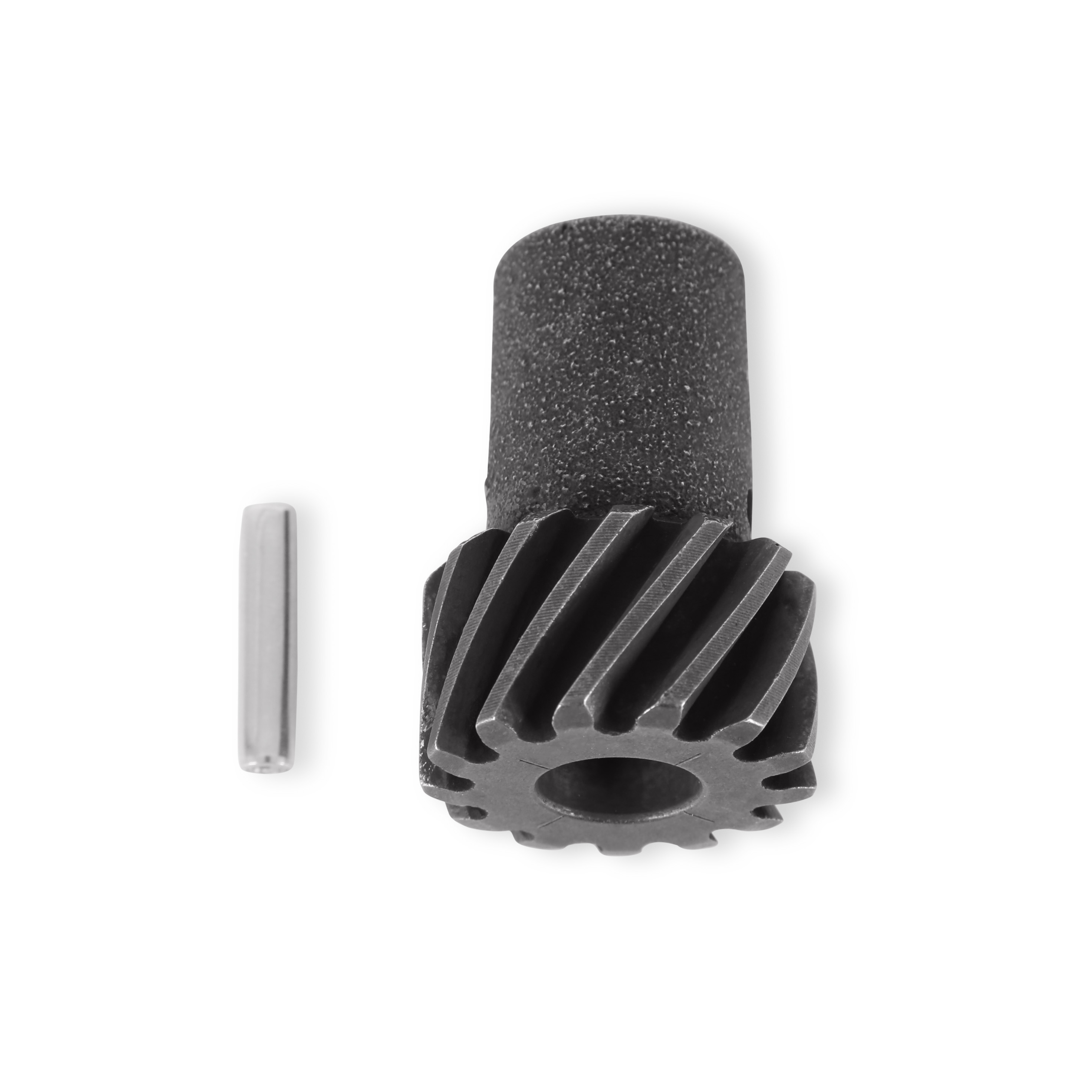

  • Roll pin included — no drilling required, sold individually

This distributor gear is emissions-compliant and legal for use on emissions-controlled vehicles, non-emissions-controlled vehicles, and racing applications. It carries a 1-year limited manufacturer's warranty when purchased from an authorized MSD dealer and properly installed.

Products specifications

Prop 65

No

Gear Inside Diameter

0.500 in.
