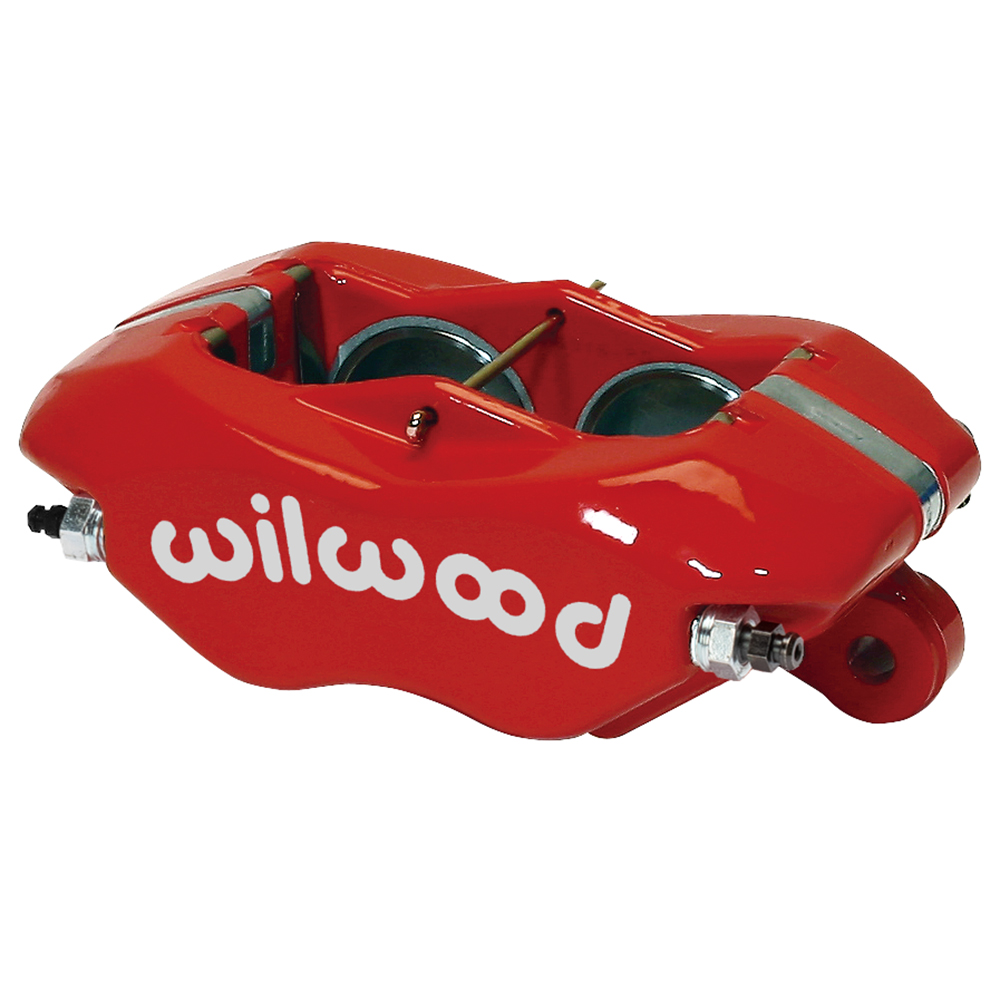

Wilwood 120-6806-RD Forged Dynalite 4-Piston Disc Brake Caliper Red Powdercoat

Manufacturer

Part Number

120-6806-RD
Sale Price

$214.95

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 120-6806-RD Forged Dynalite Caliper is a high-performance, 4-piston disc brake caliper finished in a bold red powdercoat. Built from forged aluminum, it delivers class-leading strength and braking efficiency for motorsports, street performance, and custom builds alike. It serves as the foundation caliper in the majority of Wilwood's Bolt-On Disc Brake Kits and is compatible with rotors measuring 10" to 13.06" in diameter.

At the core of this caliper's superiority is Wilwood's stress-flow forging process, which re-aligns the metal's grain structure to match the contour of the caliper body — eliminating the internal grain interruptions that result from machining a straight billet block. Combined with an FEA-generated radial transition design, this eliminates steps and shoulders between the piston housing and caliper bridges, dramatically increasing resistance to deflection and caliper separation under load. The result: reduced fluid volume displacement, greater clamping efficiency, less pedal travel, and a taller, more confident brake pedal feel.

Key Features:

  • Forged aluminum construction — starting weight of 2.80 lbs, among the lightest in class
  • Four stainless steel 1.38" bore pistons with high-temperature seals to resist corrosion and retard heat transfer
  • SRS stainless steel bridge plates eliminate pad gouging wear and extend caliper service life
  • Spring-loaded SRS plates suppress pad rattle and dampen vibration harmonics that cause brake squeal
  • Internal fluid passages — no external tubes required
  • Four-corner bleed screws for complete air evacuation; universal mount fits front, rear, left, or right positions
  • 1/8"-27 NPT fluid inlet; 5.25" centered mounting lug spacing
  • Red powdercoat finish for a custom, show-quality appearance
  • Direct replacement for all Wilwood Dynalite and compatible competitor calipers with 5.25" mounting centers
  • Uses Wilwood 7112-type brake pads — full range of Wilwood compounds available

Compatible with rotors from 10" to 13.06" O.D. and 0.81" rotor width. Sold individually; brake pads not included. OEM cross-reference: replaces all Wilwood Dynalite series calipers with 5.25" lug centers.

Products specifications

Brackets Included

No

Brake Pads Included

No

Caliper Color

Red Powder Coat

Caliper Finish

Red powdercoated

Caliper Logo

Wilwood

Caliper Material

Aluminum

Caliper Piston Quantity

Four

Caliper Series

Dynalite

Caliper Style

4-Piston

Fitting Attachment 1

Female threads

Pad Type

7112

Parking Brake Provision

No

Piston Area

3

Piston Diameter (in)

1.380 in.

Quantity

Sold individually.

Rotor Thickness (in)

0.810 in.

Thread Size

1/8 in. NPT
