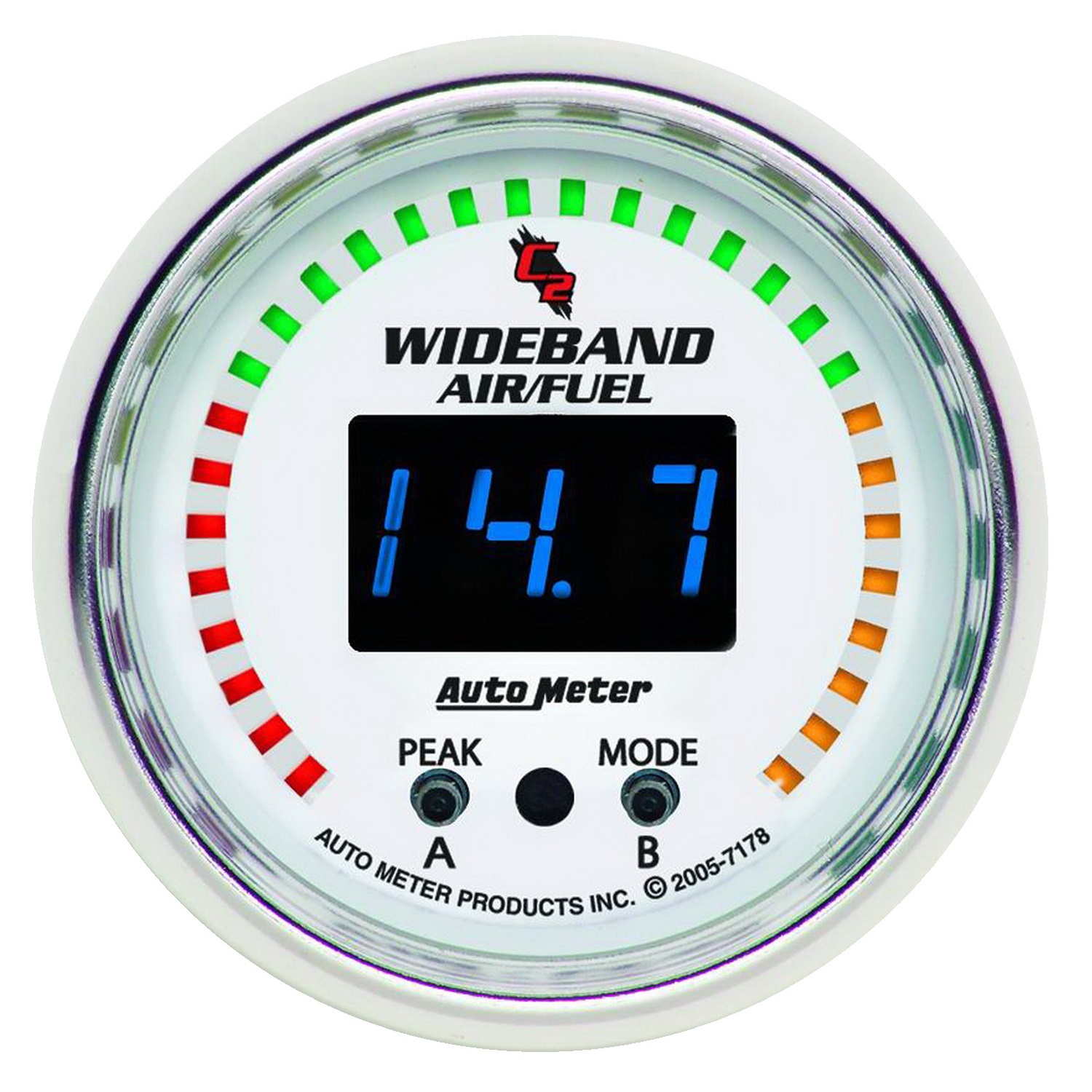

AutoMeter 7178 C2 Wideband Air/Fuel Ratio Gauge 2-1/16" Digital AFR 10:1-20:1

Manufacturer

Part Number

7178
Black Friday Price

$416.98

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The AutoMeter C2 Pro Wideband Air/Fuel Ratio Gauge delivers precision AFR monitoring essential for maximizing engine performance and longevity. This advanced digital gauge features automatic calibration on every startup, eliminating the need for manual free air calibration and ensuring accuracy throughout the sensor's entire lifespan.

Key Features:

  • 2-1/16" digital gauge with 10:1 to 20:1 AFR range for gasoline applications
  • Automatic calibration system maintains peak accuracy without user intervention
  • Peak recall function and programmable lean warning system for safe operation
  • Configurable display range lets you focus on critical AFR zones
  • Auto-dimming display adjusts brightness for optimal visibility in any lighting condition
  • Data logging output (0-4V) compatible with ECUs, data acquisition systems, and laptop tuning software
  • Display data in Lambda or numerical AFR format
  • Compatible with 12V and 16V electrical systems
  • Bright anodized bezel with red LCD display and color-coded segments

Complete Kit Includes:

  • Custom-tuned Bosch LSU4.2 wideband O2 sensor with 0.1 AFR resolution
  • 8-foot sensor wiring harness for flexible installation
  • 304 stainless steel weld-in bung
  • Mounting hardware and detailed installation instructions

The AutoMeter 7178 combines race-proven accuracy with user-friendly features, making it ideal for both track and street applications. Compatible with nearly all fuel types, this wideband gauge provides the critical data needed for precision tuning and safe operation.

Products specifications

Size

2.3125 in.

Bezel Color

Bright Anodized

Hole size

0.0625 in.

Bezel Style

Super Bezel

Gauge Size

2.0625 in.

Hole size

52.4mm

Gauge Size

52.4mm

Lighting Type

Digital LED

Lighting Color

Red LCD/Red Yellow Green Segments

Gauge Type

Wideband Air/Fuel Ratio (AFR)

Face Color

White

Outer Bezel Diameter

2.250 in.

Lens

Flat Clear

Movement Type

Digital

Prop 65

Yes
