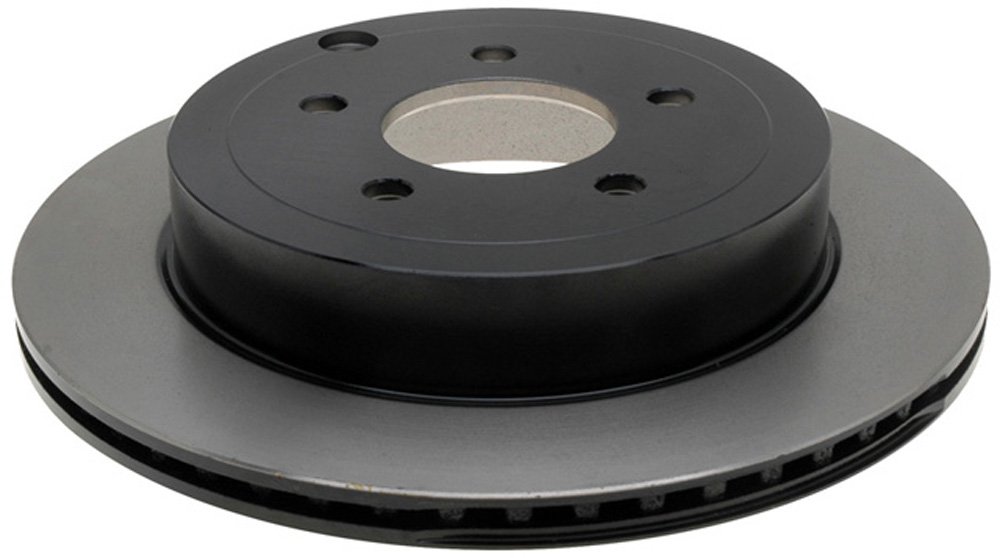

Raybestos 680546 Advanced Technology Vented Disc Brake Rotor

The Raybestos 680546 Advanced Technology disc brake rotor is engineered for superior stopping power, exceptional cooling properties, and outstanding noise control. This vented rotor is designed for reliable performance in demanding braking situations.

Advanced Metallurgy and Construction:

• Cast from damped iron alloy, metallurgically formulated to disrupt vibration and suppress noise for quiet stopping power
• Vented design with optimized vane configuration dissipates heat efficiently and maintains lower operating temperatures
• Black polymer coating provides superior protection against corrosion and the elements
• Mill balanced for smooth, vibration-free operation and extended service life

Specifications:

• Outside diameter: 11.88 inches
• Bolt pattern: 5 x 4.50 inches (5 x 114.3mm)
• Nominal thickness: 0.709 inches
• Discard thickness: 0.630 inches
• Rotor construction: Vented
• Rotor finish: Black painted
• Material: Iron

OEM Cross-Reference Numbers: Ford 7T4Z2C026A, Ford 9T4Z2C026A, Motorcraft BRR153, Brembo 09.B541.10

The Raybestos 680546 rotor meets SAE-compliant standards for strength and durability, featuring tight lateral runouts and minimal thickness variation. Installation-ready with a non-directional finish, this rotor is designed for use with stock calipers and delivers consistent, predictable, and safe braking performance. Ideal for severe duty applications, fleet vehicles, and enthusiast drivers who demand reliable stopping power.

Sold individually.
