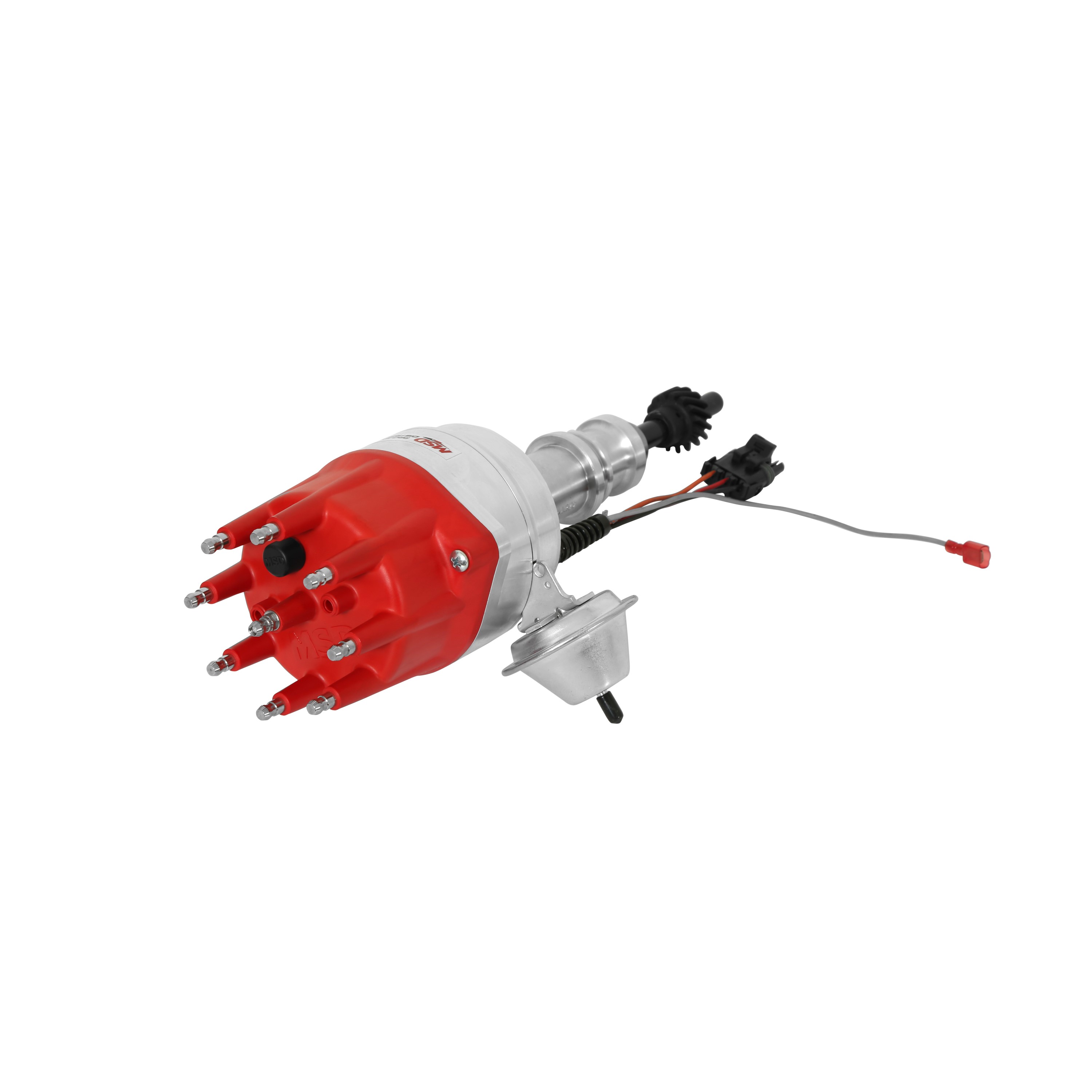

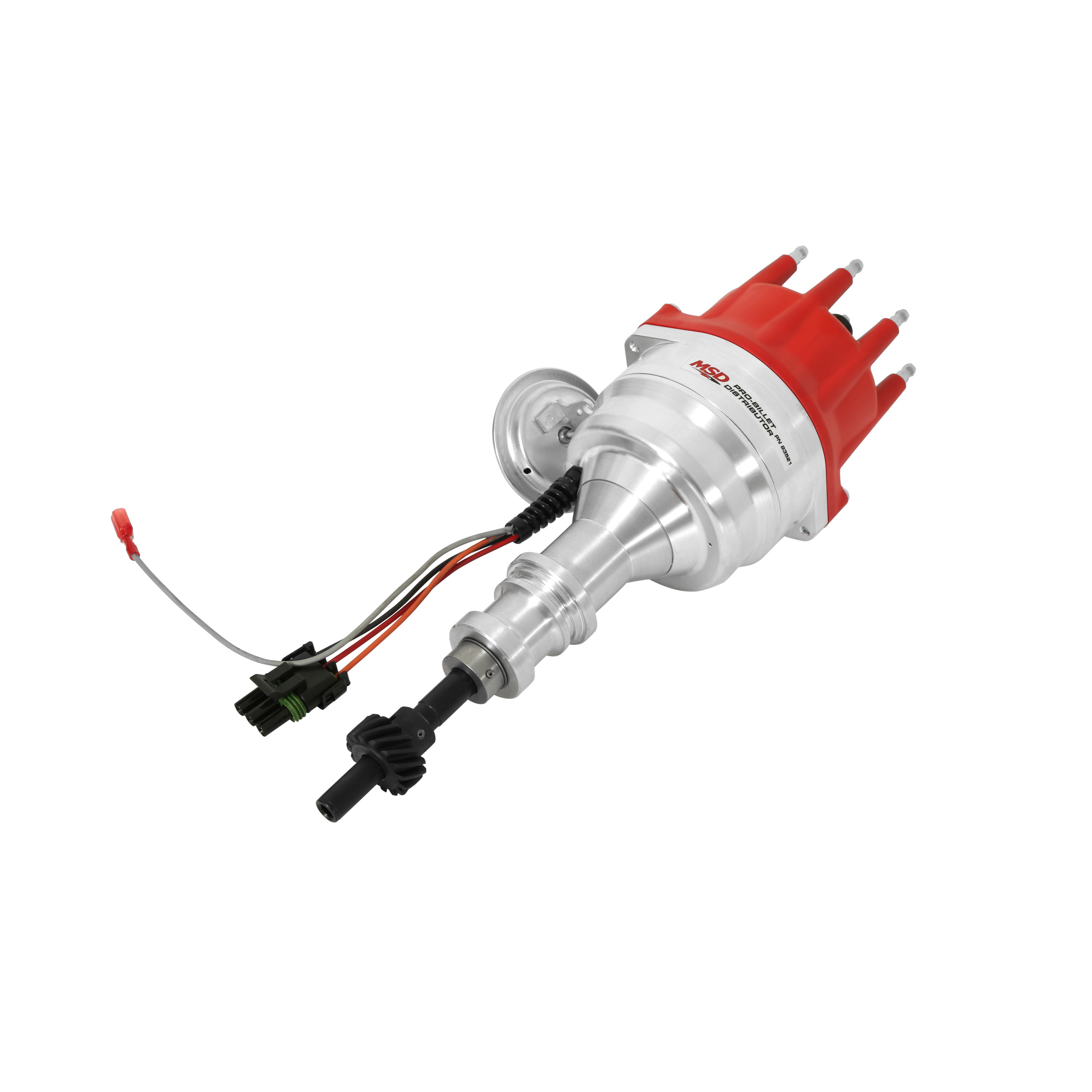

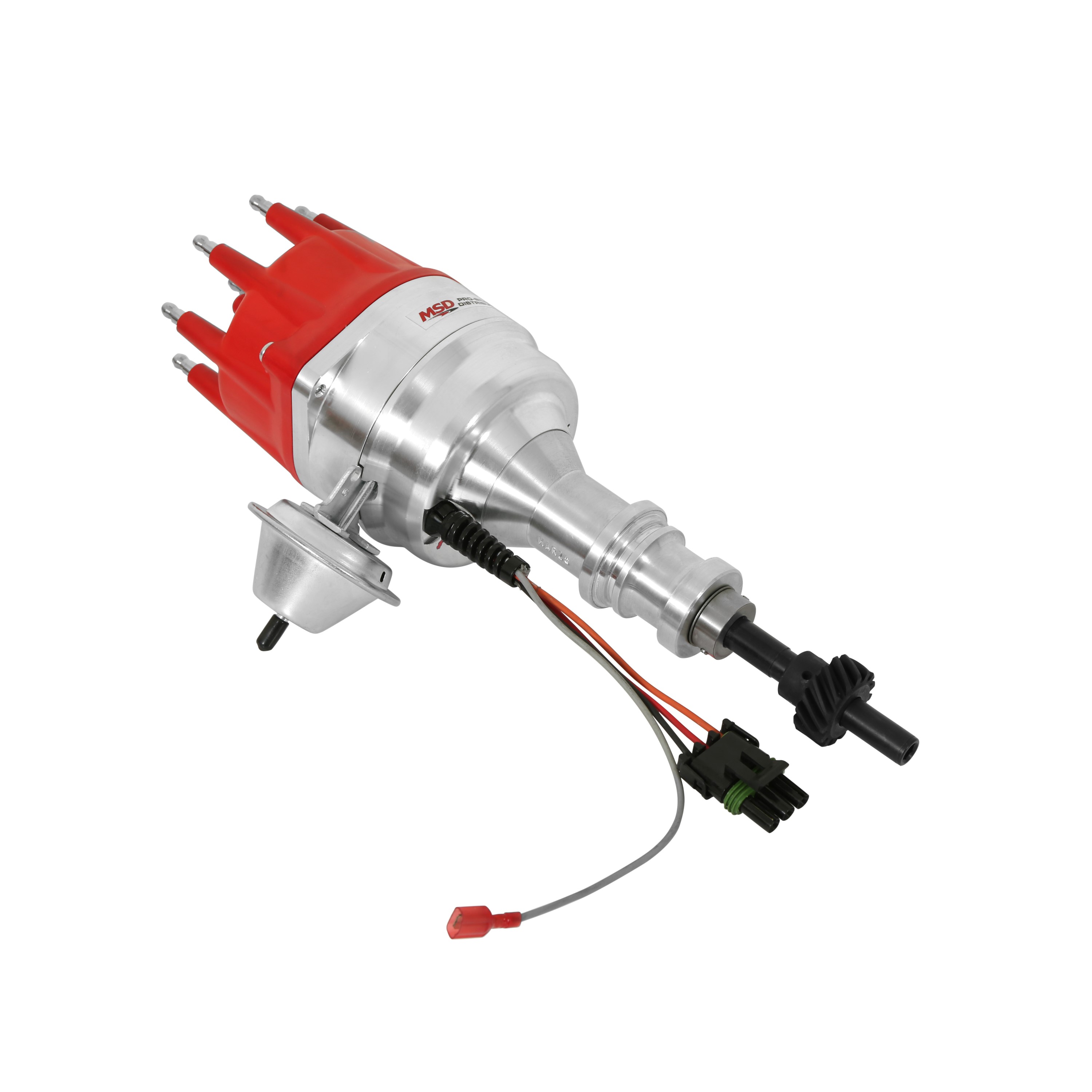

MSD 83521 Ford 289/302 Ready-To-Run Billet Distributor with Steel Gear and Rev Limiter

The MSD 83521 Ready-To-Run Distributor is a complete, drop-in ignition upgrade engineered specifically for Ford 289, 302, and 260 small block V8 engines. Designed to replace bulky DuraSpark systems, outdated OE electronic distributors, or ancient breaker point setups, this billet distributor delivers a powerful inductive spark right out of the box — no separate MSD ignition control required.

Installation is straightforward: simply drop the unit into the engine, connect three wires, and fire it up. The built-in ignition module generates a strong inductive spark that improves combustion efficiency, resulting in quicker starts, a smoother idle, and improved overall performance.

Key Features:

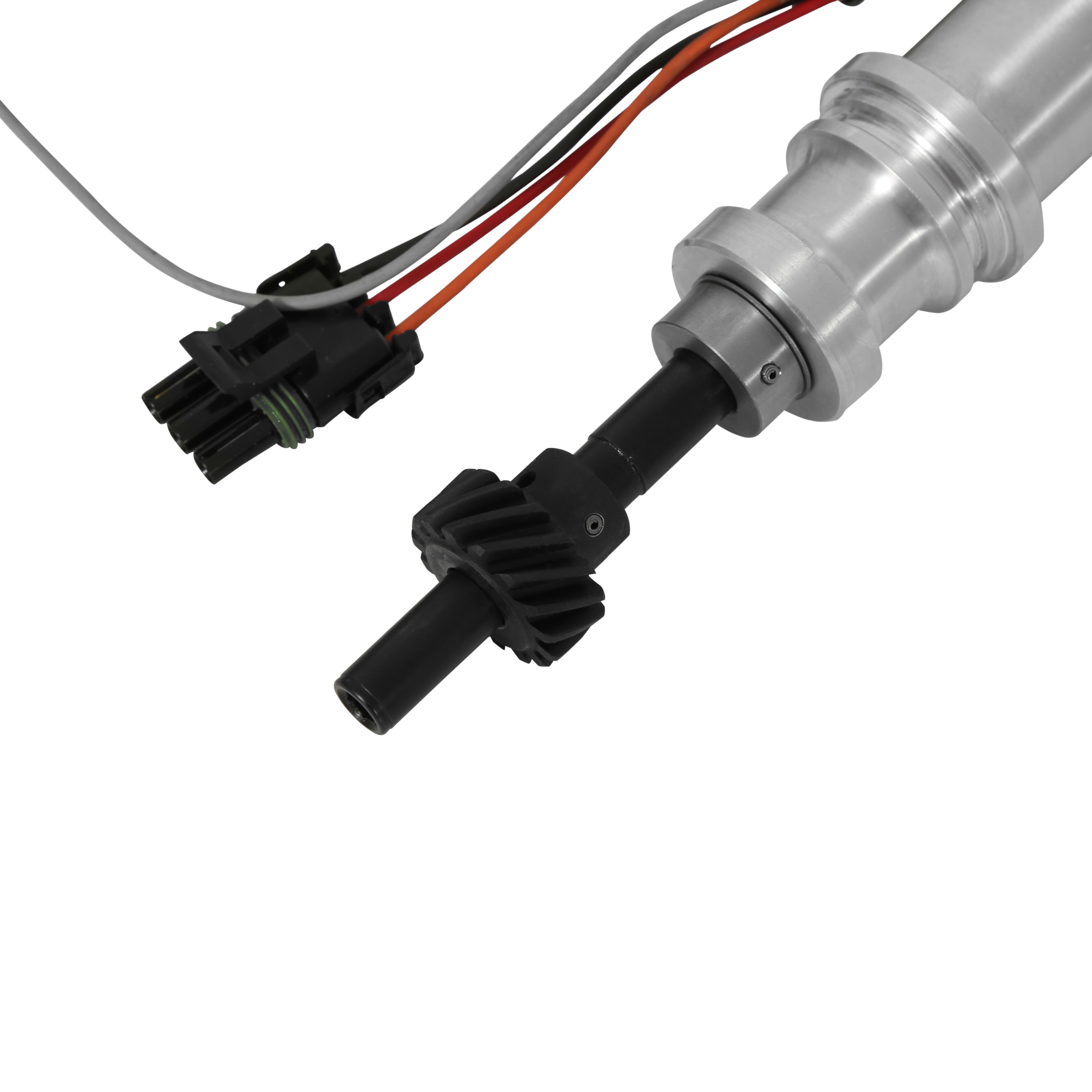

• Steel gear for durability and compatibility with hydraulic roller camshafts
• Built-in rev limiter for engine protection — easy to set, no external box needed

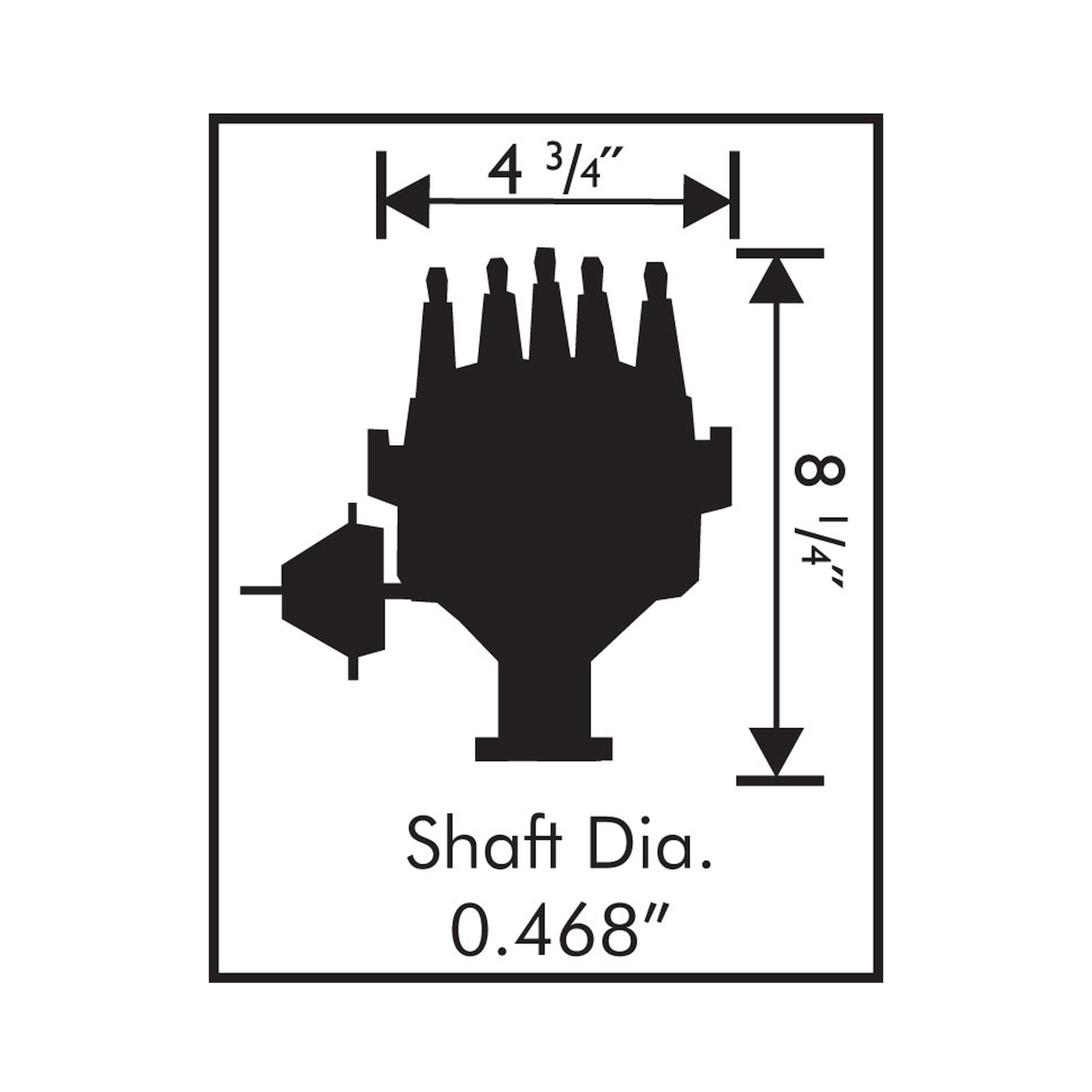

• CNC machined billet aluminum housing and base — 5/8" smaller in diameter than stock Ford distributors to accommodate supercharger, carb, or intake clearance issues
• Maintenance-free magnetic pickup with precision reluctor for stable trigger signals across the full RPM range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing for long-lasting reliability
• Advance plate and weights fine-blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and TIG welded to the plate for precision and durability
• Nylon pads ensure smooth, rattle-free operation of the advance weights
• Mechanical advance assembly can be locked out for use with crank trigger systems
• Tunable advance curve — supplied advance springs and stop bushings allow easy customization to match your engine's needs
• Vacuum advance canister included for improved fuel economy during light-load driving (can be locked out)

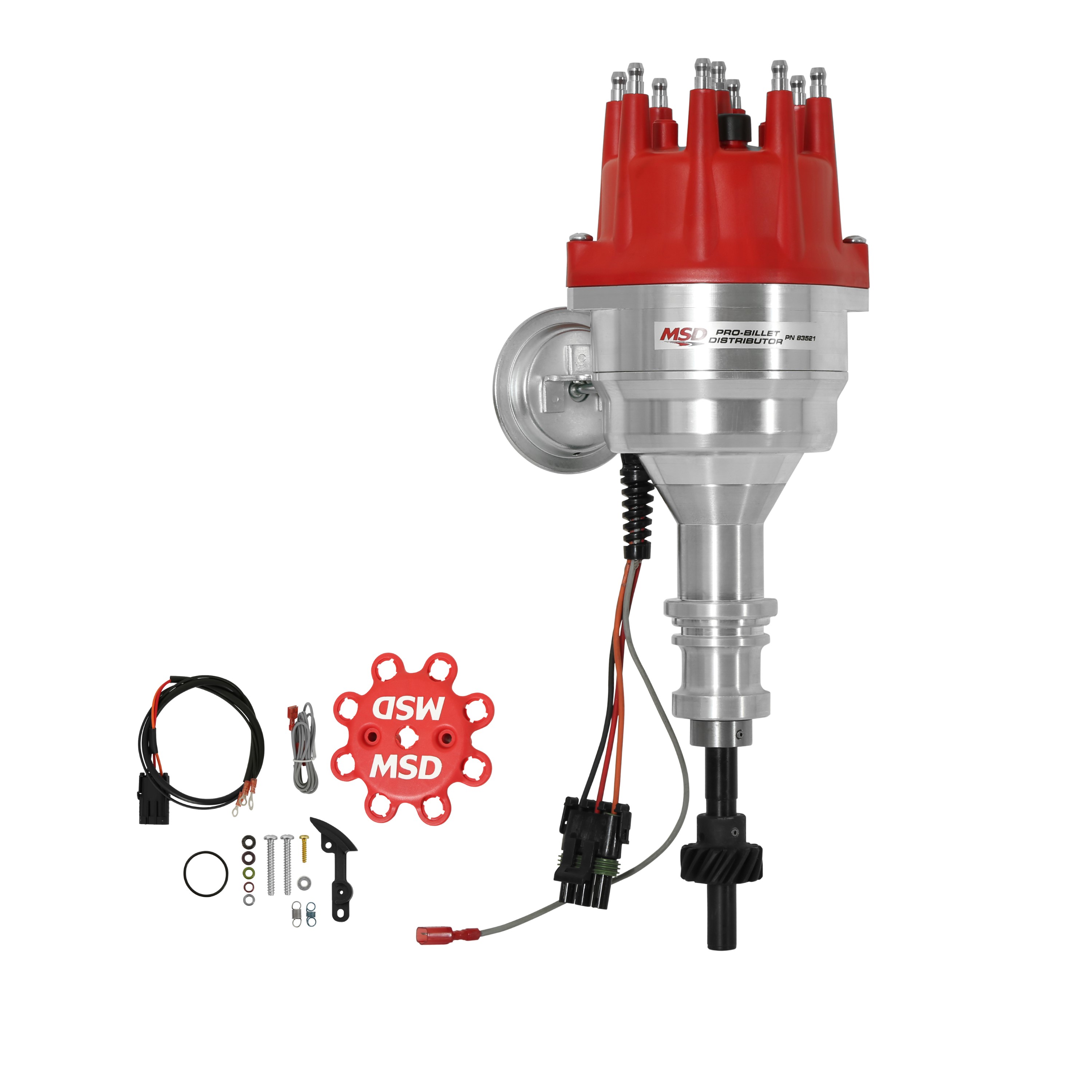

• Includes red distributor cap and MSD race rotor with HEI-style terminals (accepts 8441 Cap-A-Dapt)
• CARB E.O. Approved for emissions-legal use on applicable vehicles

The MSD 83521 is a complete, self-contained ignition solution that combines the reliability of a billet aluminum distributor with the convenience of a built-in electronic module. Whether you're building a street cruiser or a weekend racer, this ready-to-run distributor delivers consistent ignition performance with minimal wiring and maximum dependability.
