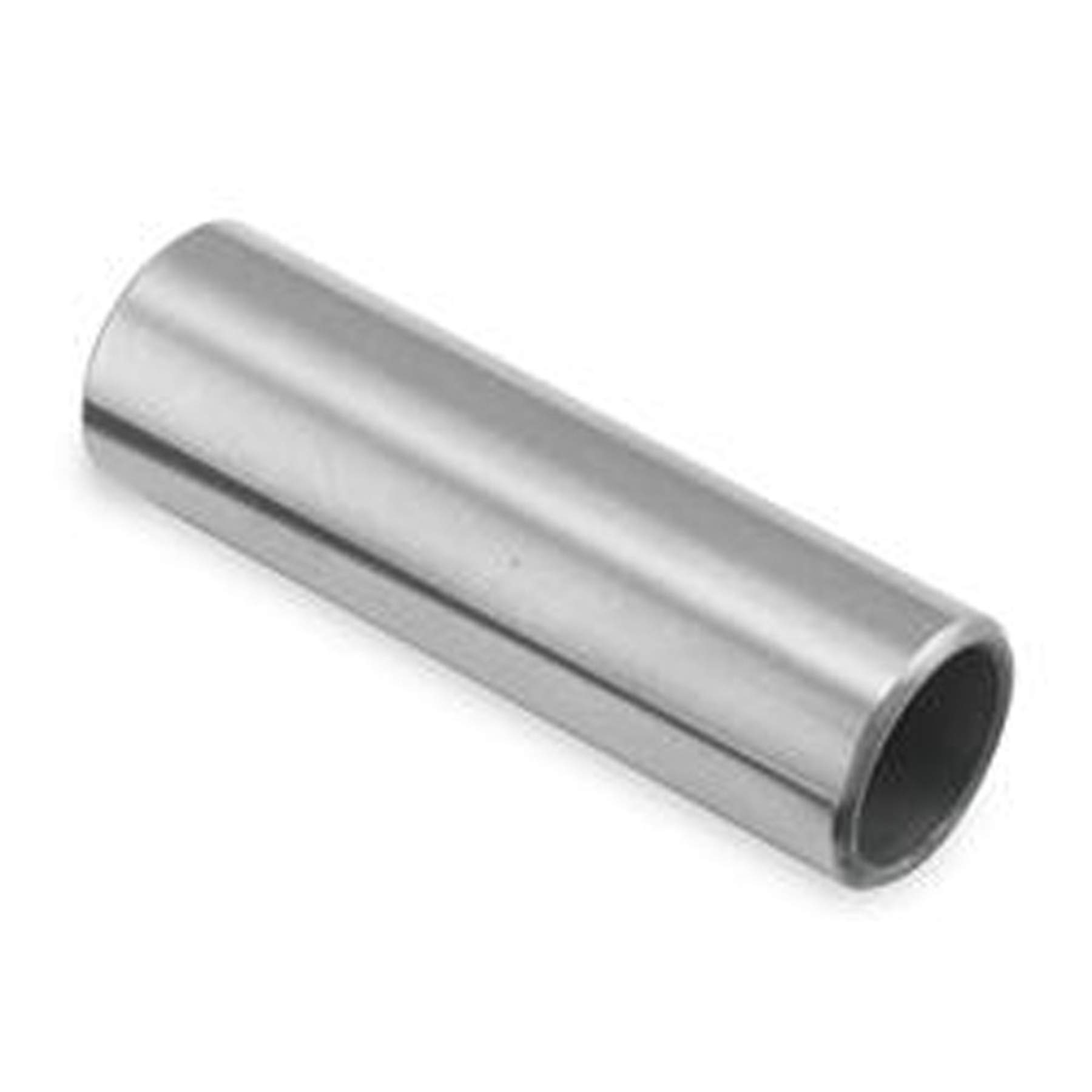

Wiseco S708 Piston Pin 20mm x 2.5in 9310 Steel SW Turbo Upgraded

The Wiseco S708 is a 20mm x 2.5-inch upgraded piston pin engineered for high-performance and forced-induction engine builds. Constructed from 9310 material — a high-quality, low-carbon case-hardened steel — this pin is purpose-built for applications demanding exceptional surface strength combined with high core toughness, making it the ideal choice for turbocharged and nitrous-assisted engines.

Wiseco offers piston pins in three distinct material grades to match the demands of any build level. Understanding the differences helps ensure the right pin is selected for the application:

5115 Material Pin — Standard Grade

• Chromium alloy steel construction
• Case hardened to 58–64 Rockwell C
• Ground to a surface finish of .15 Ra or better
• Designed to withstand normal wear and tear in aftermarket engine builds

52100 Material Pin — High Load Grade

• High carbon, chromium-bearing steel of aircraft-quality alloy
• Case hardened to 54–56 Rockwell C
• Through hardened for consistent strength across the full cross-section
• Ground to a fine finish
• Designed for high load capacity and outstanding wear and abrasion resistance

9310 Material Pin — Turbo / Nitrous Grade (S708)

• High-quality, low-carbon case-hardened steel
• Case hardened to 59–63 Rockwell C
• Ground to a superfinish of .025 Ra or better
• Engineered for applications requiring high surface strength combined with high core toughness
• Ideal for high contact stress environments with shock and impact loading — including turbo and nitrous applications
• Dimensions: 20mm outer diameter x 2.5 inches in length

The Wiseco S708 is sold individually. Order the quantity required for your engine build. This pin is also compatible with select OEM piston applications where an upgrade is desired.
