Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5

Name: Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5
Brand: Weld Racing Wheels
SKU: W16-90512424
Price: 505.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Part of: Weld Racing Wheels Draglite Polished Aluminum Wheel

Other options in this family: Weld Racing Wheels 90-58350 Weld Racing Wheels 90-510348 Weld Racing Wheels 90-510350 Weld Racing Wheels 90-57348 Weld Racing Wheels 90-510354

Manufacturer

Part Number

90-512424

5 reviews

Sale Price

$505.00

Estimated ship date Sunday, November 22

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5

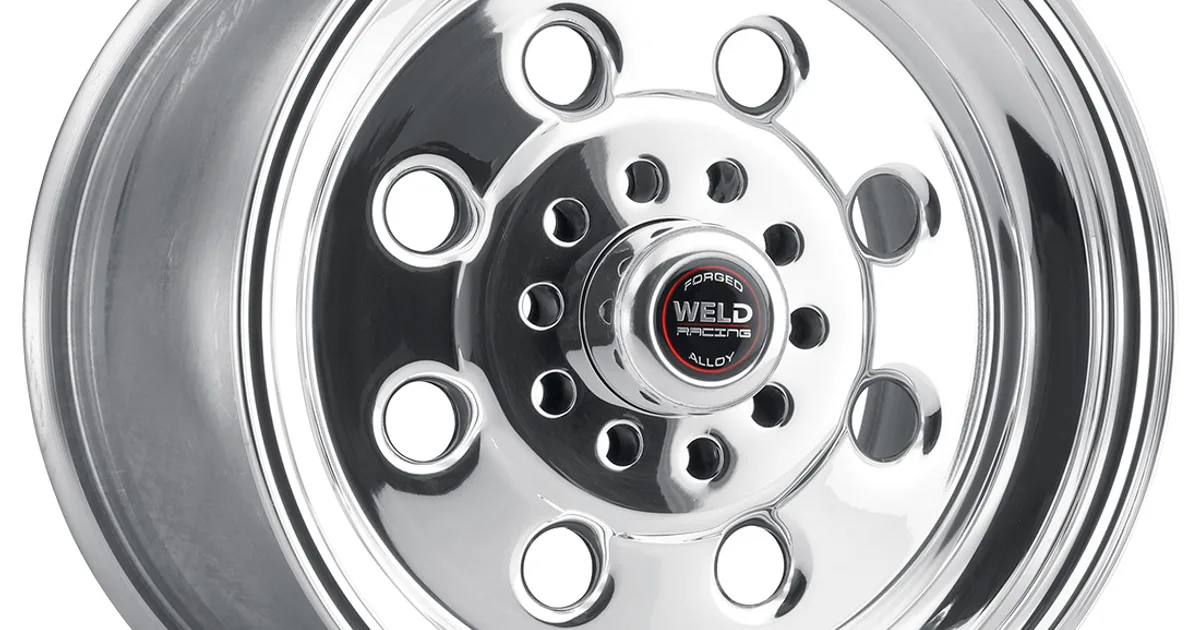

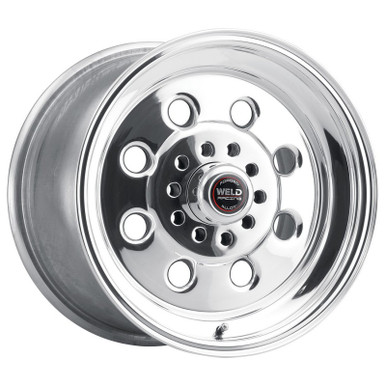

Picture of Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5

Wheels and Tires sold separately

Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5 — image 1

Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5 — image 2

Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5 — image 3

Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5 — image 4

Weld Racing Wheels 90-512424 Sport Forged Draglite Polished 15x12 Wheel 5x5 — image 5

Product Details

The Weld Racing Sport Forged Draglite 90-Series Wheel represents one of the most iconic and well-established designs in street and strip performance. This 15x12 inch polished aluminum wheel delivers a timeless classic look combined with modern forged construction technology.

Key Features:

Two-piece cold-forged aluminum construction for superior strength-to-weight ratio
15 inch diameter x 12 inch width for wide rear fitment
5x5 inch (5x127mm) bolt pattern
7.5 inch backspacing with +25mm offset
Brilliant polished center and shell finish
Revolutionary cold-forged rim and welded construction
Blueprint-perfect runout tolerances for smooth operation
Push-thru center cap included with every wheel
Rated for street/strip use up to 8-second, 160 MPH drag cars
Made in the USA

The Draglite wheel design has been in production for over 30 years and features a revolutionary cold-forged and welded construction that delivers a lighter and stronger wheel compared to traditional cast construction. This design eliminates air pockets and voids that weaken standard cast wheels, providing the best strength-to-weight ratio and lowest rotational moment of inertia in its class. The polished aluminum finish provides the classic hot rod look that has made this wheel a legend in the racing community.

Note: Requires mag-style lug nuts with 1.310 to 1.375 inch shank length (sold separately). Optional 3-bar knockoff or hex-nut lug cover caps are available to further enhance the traditional appearance.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

7.500 in.

Beadlock Functional

Beadlock Included

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Draglite Series

Notes

Will not fit applications with 14mm studs. The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

+25.00mm

Offset (mm)

+25.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

Yes

Washer Outside Diameter (in)

1.250 in.

Wheel Bolt Pattern

5 x 5 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

12.00 in.
