Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace

Part of: Weld Racing Wheels Draglite Polished Aluminum Wheel

Other options in this family: Weld Racing Wheels 90-58350 Weld Racing Wheels 90-510348 Weld Racing Wheels 90-510350 Weld Racing Wheels 90-57348 Weld Racing Wheels 90-510354

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

90-514350
15 reviews
Sale Price

$565.00

Estimated ship date Tuesday, November 24

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace

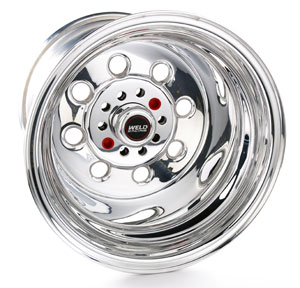

Picture of Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace
Picture of Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace
Picture of Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace

Wheels and Tires sold separately

Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace — image 1
Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace — image 2
Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace — image 3
Weld Racing Wheels 90-514350 Draglite Polished Aluminum Wheel - 15x14 5-Lug 5.5in Backspace — image 4
Product Details

The Weld Racing Draglite 90-514350 is one of the most iconic street and strip wheels ever produced — a 15 x 14-inch, two-piece polished aluminum wheel built for performance-driven builds that demand both style and strength. With its timeless spoke design and mirror-like polished finish, the Draglite has been a staple of the hot rod and drag racing community for decades.

Constructed using Weld Racing's cold-forged aluminum process and welded two-piece assembly, the Draglite delivers a significantly lighter and stronger wheel compared to conventional cast alternatives. The cold-forging process produces blueprint-level runout tolerances and an exceptional strength-to-weight ratio, reducing unsprung weight to help improve elapsed times and overall handling.

Key Features:

  • Construction: Two-piece cold-forged and welded aluminum
  • Finish: Mirror-polished aluminum
  • Wheel Diameter: 15 in.
  • Wheel Width: 14 in.
  • Bolt Circle: 5 x 4.50 / 4.75 in. (dual-drilled)
  • Backspacing: 5.500 in.
  • Center Bore Diameter: 3.180 in.
  • Lug Nut Seat Style: Shank (mag-style)
  • Lug Nut Shank Length Required: 1.300–1.380 in.
  • Push-thru center cap included
  • Valve stem: Not included
  • Lug nuts: Not included
  • Sold individually (each)
  • Made in the USA

The Draglite is dual-drilled to accept both 5x4.50 and 5x4.75 bolt patterns, making it a versatile fitment option for a wide range of street and strip applications. An optional 3-bar knockoff or hex-nut lug cover cap is available separately to further complement the classic look. Note: some aftermarket brake kits may require modification for clearance due to the inner barrel construction.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

5.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Draglite Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

-51.00mm

Offset (mm)

-51.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

No

Washer Outside Diameter (in)

1.250 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

14.00 in.
