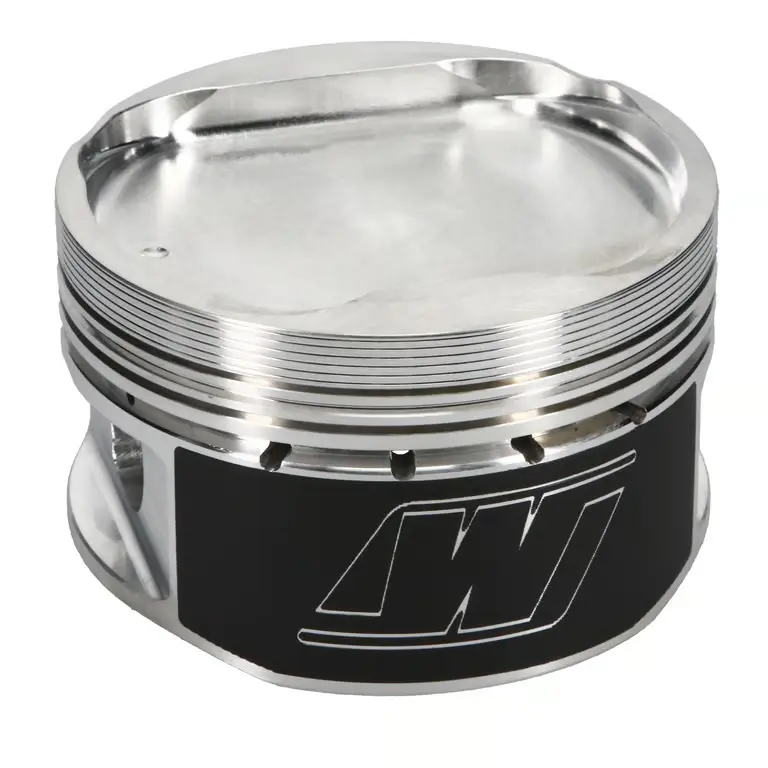

Wiseco 6641M90 Toyota 2AZ-FE Professional Series Forged Piston 90mm Bore

(2005-2010 Scion tC)

Manufacturer

Part Number

6641M90
Black Friday Price

$217.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 6641M90 is a Professional Series Sport Compact forged piston designed for the Toyota 2AZ-FE engine, featuring a 90.00mm bore and 33.25mm compression height with a 0.866 in. pin diameter. This single replacement piston is engineered for serious engine builders demanding no-compromise performance and durability in heavy to severe duty race builds.

Key Features:

  • Professional Series Construction: Engineered, forged, and machined in the USA from 2618 high-strength aluminum alloy for superior tensile strength under extreme conditions
  • ArmorGlide® Skirt Coating: Wiseco's proprietary coating provides seizure resistance, friction reduction, and quieter engine operation
  • Fully Machined Crown Features: Precision-machined crown geometry optimized for the Toyota 2AZ-FE combustion chamber
  • Precision Ring Grooves: Anti-detonation groove and additional ring seal features for improved combustion sealing
  • Forced Pin Oiling: Ensures consistent lubrication to the wrist pin under high-load race conditions
  • Rings and Pins Included: Sold as an individual replacement piston complete with rings and wrist pin (Recommended ring set: 9000XX)
  • Made in the USA: Forged and machined at Wiseco's Mentor, Ohio manufacturing facility

Wiseco's Professional Series represents their highest-tier piston line — no-expense-spared components packed with custom-level performance features designed and built to withstand the demands of boosted, high-compression, and race applications. Each piston is CNC-machined to tight tolerances on state-of-the-art equipment, ensuring consistent quality and optimal engine performance.

Products specifications

Fits

2005-2010 Scion tC

Bore

90mm

Comp Height

33.25

Comp Ratio

9.0:1

Dome Volume

-29

Gram Weight

337

Rod

149.5

Stroke

96

Piston Quantity

1

Wrist Pin Style

Floating

Make

Toyota

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

90.00

Industry

Automotive

Product Market

Sport Compact

Engine Type

ICE

Oil Ring Thickness

2.8

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Wrist Pin Outer Diameter

0.866

Forging Type

Full Round

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1.0

EBAY Category ID

33623

Make - Web

Toyota

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

-29.00

Engine

2AZFE

Compression Height

33.25

Engine - Web

2AZFE

Title

Wiseco - Toyota, 2AZ-FE, 90.00 mm Bore, Piston

Title - Web

Professional Toyota 2AZ-FE Piston - 90.00 mm Bore - 33.25 mm CH, -29.00 CC
