Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel

Part of: Weld Racing Wheels Draglite Polished Aluminum Wheel

Other options in this family: Weld Racing Wheels 90-58350 Weld Racing Wheels 90-510348 Weld Racing Wheels 90-510350 Weld Racing Wheels 90-57348 Weld Racing Wheels 90-510354

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

90-510040
6 reviews
Sale Price

$465.00

Estimated ship date Tuesday, November 24

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel

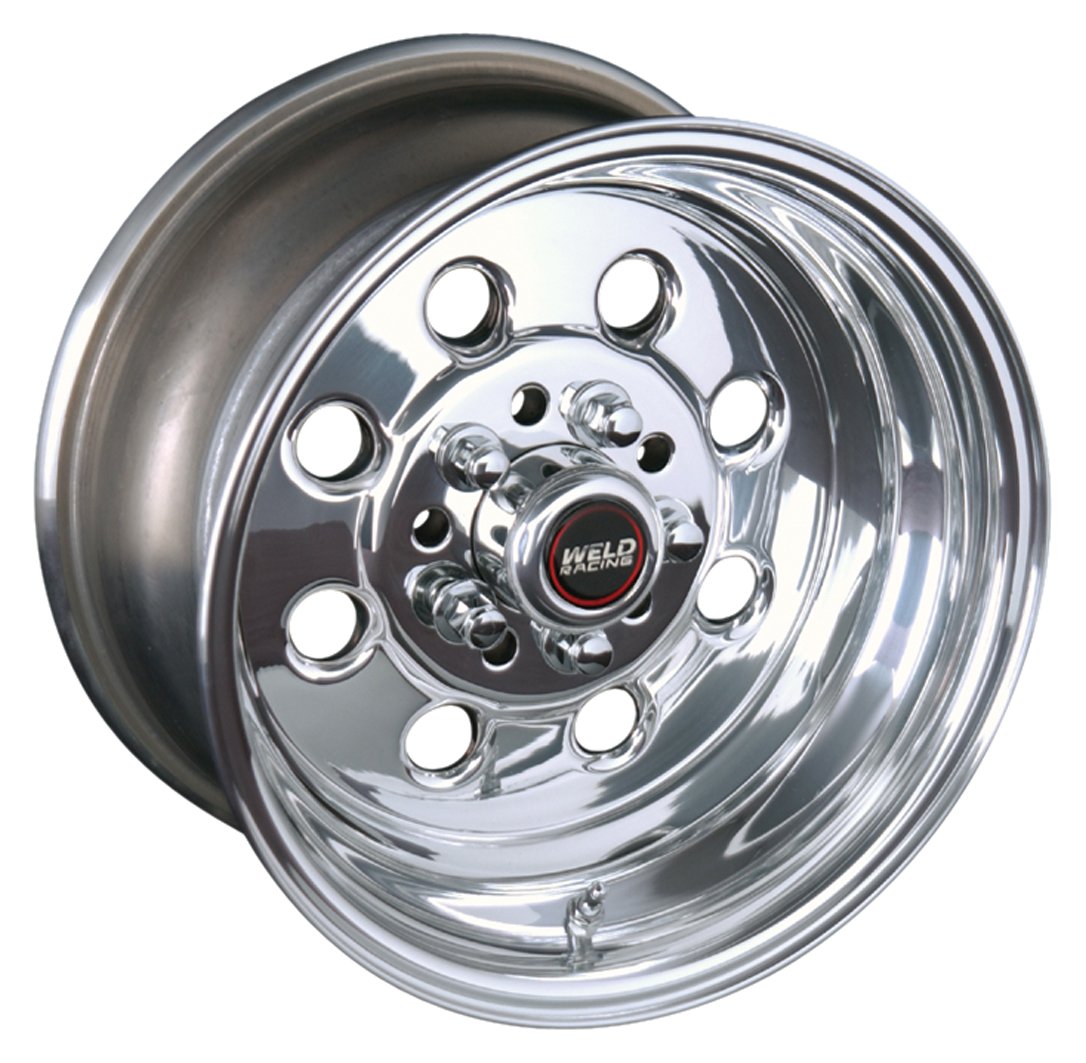

Picture of Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel
Picture of Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel

Wheels and Tires sold separately

Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel — image 1
Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel — image 2
Weld Racing Wheels 90-510040 Sport Forged Draglite 15x10 Polished Aluminum Wheel — image 3
Product Details

The Weld Racing Sport Forged Draglite 90-Series wheel represents one of the most iconic and established designs in street and strip performance. This 15x10 inch polished aluminum wheel combines timeless styling with advanced engineering to deliver exceptional strength, reduced weight, and proven durability for drag racing and high-performance street applications.

Two-Piece Cold-Forged Construction:

  • Revolutionary cold-forged aluminum rim with welded construction
  • Significantly lighter and stronger than comparable cast wheels
  • Up to 40 percent lighter than other race wheels
  • Superior strength-to-weight ratio and lowest rotational moment of inertia in its class
  • Reduces unsprung weight for improved handling and quicker ETs

Specifications:

  • Size: 15 inches diameter x 10 inches width
  • Bolt Pattern: 4x4.25 inch (4x108mm) and 4x4.5 inch dual drill
  • Backspace: 5.5 inches (0mm offset)
  • Finish: Brilliant polished aluminum
  • Weight: Approximately 15 lbs per wheel
  • Exceeds SFI Spec 15.1 for drive wheels
  • Rated for use up to 8-second, 160 MPH drag cars

What's Included:

  • Push-through center cap
  • Valve stem
  • Made in Kansas City, Missouri, USA

The Draglite's classic five-spoke design has remained a favorite among street and strip enthusiasts for decades. Optional 3-bar knockoff or hex-nut lug cover caps are available separately to further enhance the wheel's timeless appearance. Whether you're building a dedicated drag car or a street/strip cruiser, the Weld Sport Forged Draglite delivers the perfect combination of style, strength, and performance.

Products specifications

Backspacing (in)

5.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Draglite Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

0.00mm

Offset (mm)

0.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

Yes

Washer Outside Diameter (in)

1.250 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

10.00 in.
