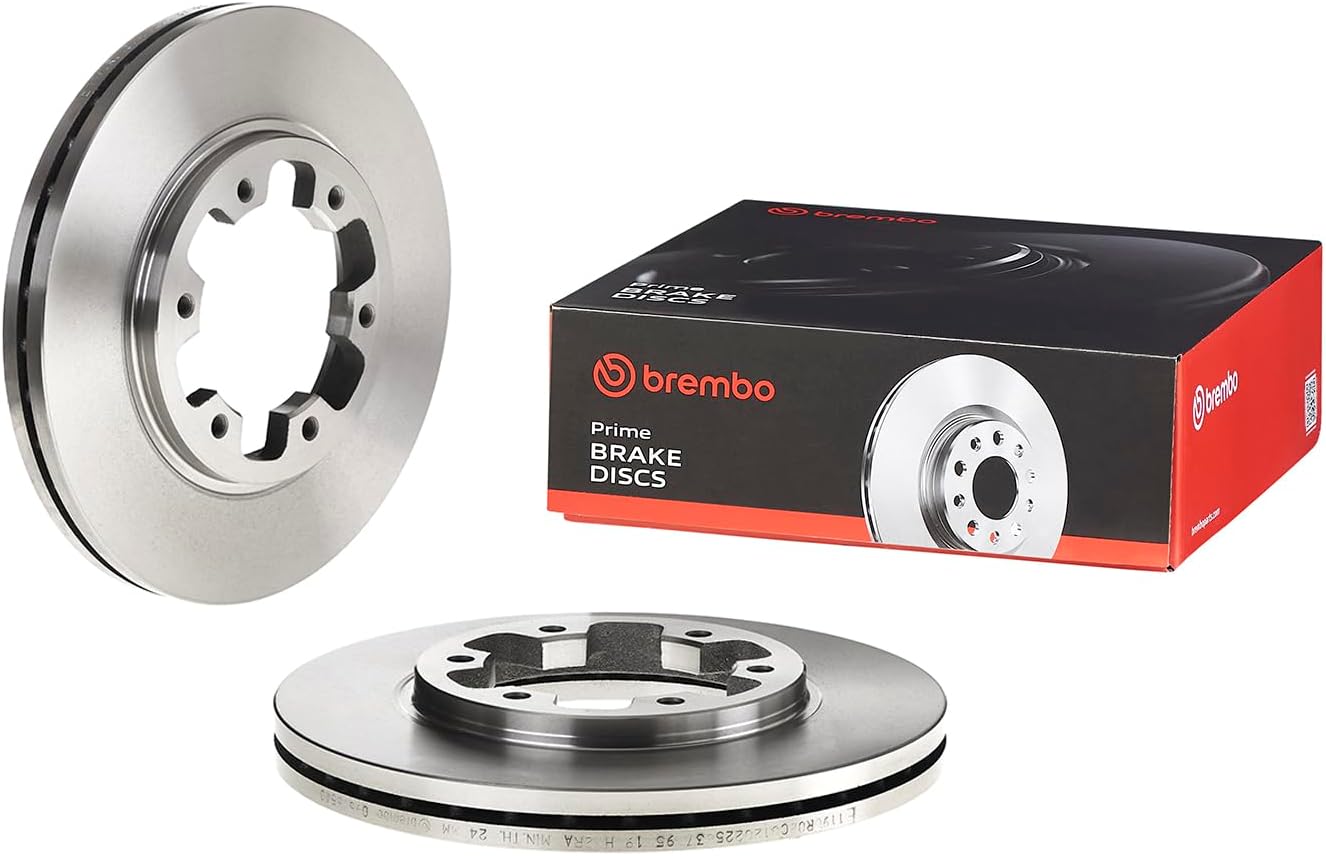

Brembo 09505510 Front Vented Brake Rotor - 277mm

The Brembo 09.5055.10 Front Brake Rotor is a precision-engineered replacement disc designed to deliver reliable stopping power and performance for select Ford and Nissan vehicles. This vented rotor measures 277mm in diameter with a 26mm thickness, providing optimal heat dissipation and fade-resistant braking performance.

Key Features:

• Original Equipment Certified - meets or exceeds material specifications used by the original manufacturer
• Smooth, machined surface minimizes vibration between the braking surface and pads for a quiet, comfortable drive
• Premium cast iron construction optimized for strength, heat dissipation, and vibration control
• Precision balanced with tight manufacturing tolerances to minimize runout and vibration
• ECE-R90 homologation certified
• Minimum thickness specification: 24mm

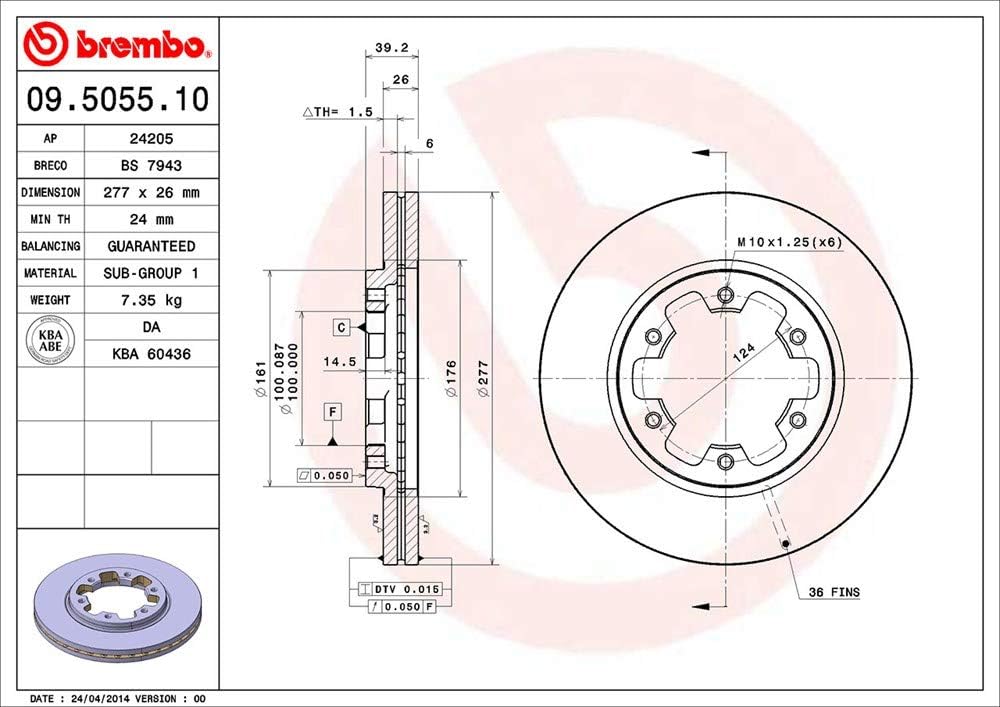

Technical Specifications:

• Axle Position: Front
• Rotor Diameter: 277mm (10.9 inches)
• Rotor Thickness: 26mm
• Minimum Thickness: 24mm
• Overall Height: 39.2mm
• Centring Diameter: 100mm
• Number of Holes: 6
• Tightening Torque: 133 Nm
• OE Numbers: Ford 1954433, 1954434 / Nissan 402060F000, 402060F001, 4020631G00, 4020631G01, 40206VJ200

Brembo's commitment to quality control throughout the entire production cycle ensures this rotor delivers the performance, reliability, and comfort expected from the global leader in braking systems. For optimal performance and safety, rotors and brake pads should be replaced together.
