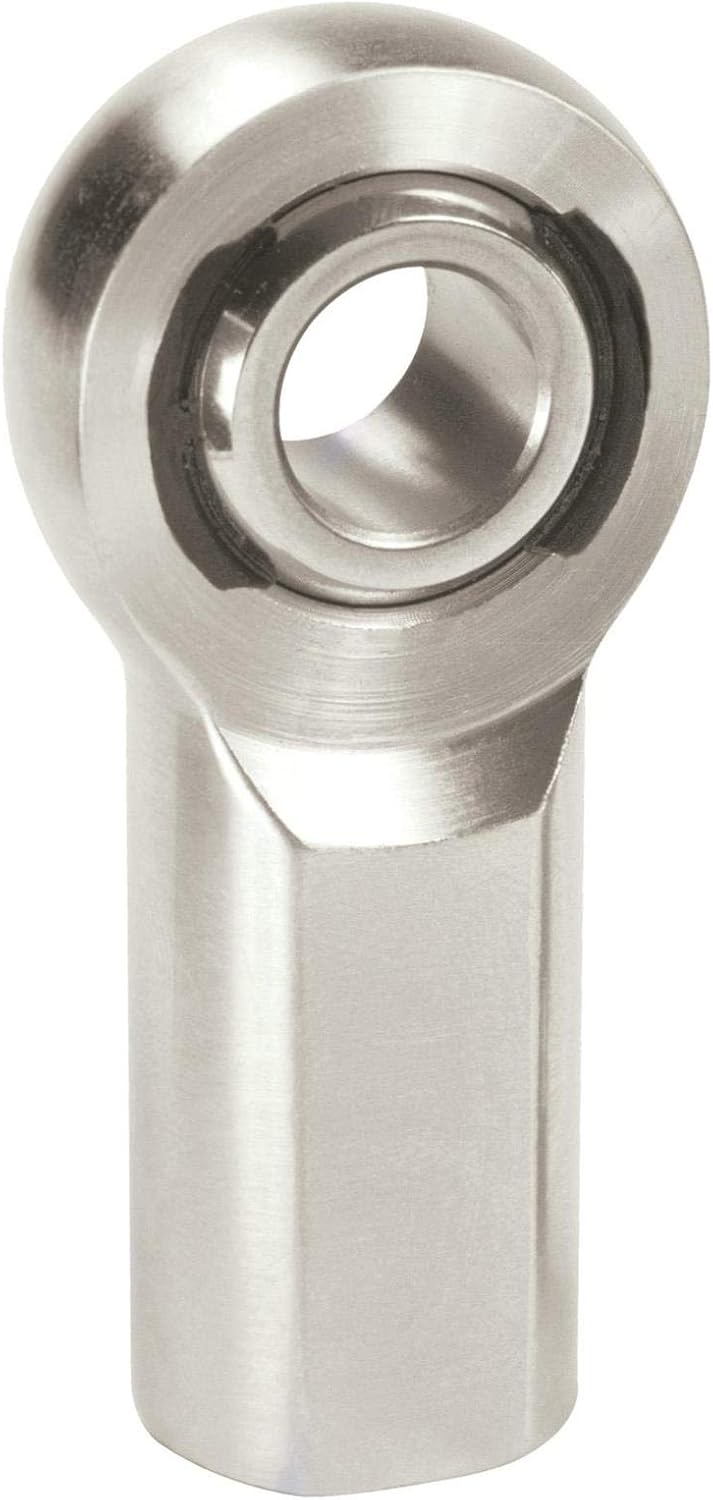

QA1 XFR10 Chromoly Steel Female Rod End

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XFR10
17 reviews
Sale Price

$21.96

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XFR10 is a premium chromoly steel female rod end from the XF Endura Racing Series, designed to deliver maximum strength and durability for demanding motorsports applications. This heavy-duty rod end features QA1's innovative loaded slot design with an injection-molded Nylon/PTFE race that provides superior performance and longevity compared to traditional three-piece rod ends.

Key Features:

  • Chromoly steel body construction, heat treated for maximum strength
  • Self-sealing and self-lubricating Nylon/PTFE injection molded race
  • 52100 bearing steel ball, heat treated, hard chrome plated, and precision ground
  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Protective coating for corrosion resistance
  • Injection molded race won't pound out like traditional PTFE liners

Why Choose the XF Series:

The QA1 Endura loaded slot design features a machined groove around the interior of the body where the ball is inserted, then sealed with an injected Nylon/PTFE material. This liner keeps dirt and debris out while continuously lubricating the joint, significantly extending service life. Commonly used on 4-link and ladder bar suspensions, the XF Series represents the ultimate in performance rod end technology for racing and high-performance street applications.

Technical Specifications:

  • Ball Material: 52100 bearing steel, heat treated and hard chrome plated
  • Race Material: Nylon/PTFE composite, self-lubricating and self-sealing
  • Body Material: Heat-treated chromoly steel with protective coating
  • Thread Type: Female threaded shank

Ideal for racers and enthusiasts who demand maximum reliability and performance from their suspension components.

Products specifications

A (+/-0.015)

2.5

Approx Bearing Weight

0.45

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.5

D (+/-0.010)

1.5

E (+/-0.010

1

F (+/-0.010)

0.875

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

16

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.500 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.750 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

16 degrees

Rod End Static Load Capacity

17,955 lbs.

Rod End Static Load Capacity (lbs)

17,955 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

5/8-18 RH in.

T (+/-0.005)

0.562

Thread Length

1.500 in.

Thread Type

Right Hand

Thread UNF-2B

5/8 -18

UTL Radical Static

17955

W (+/-0.005)

0.75

Title

QA1 Suspension Rod End Bearing XFR10
