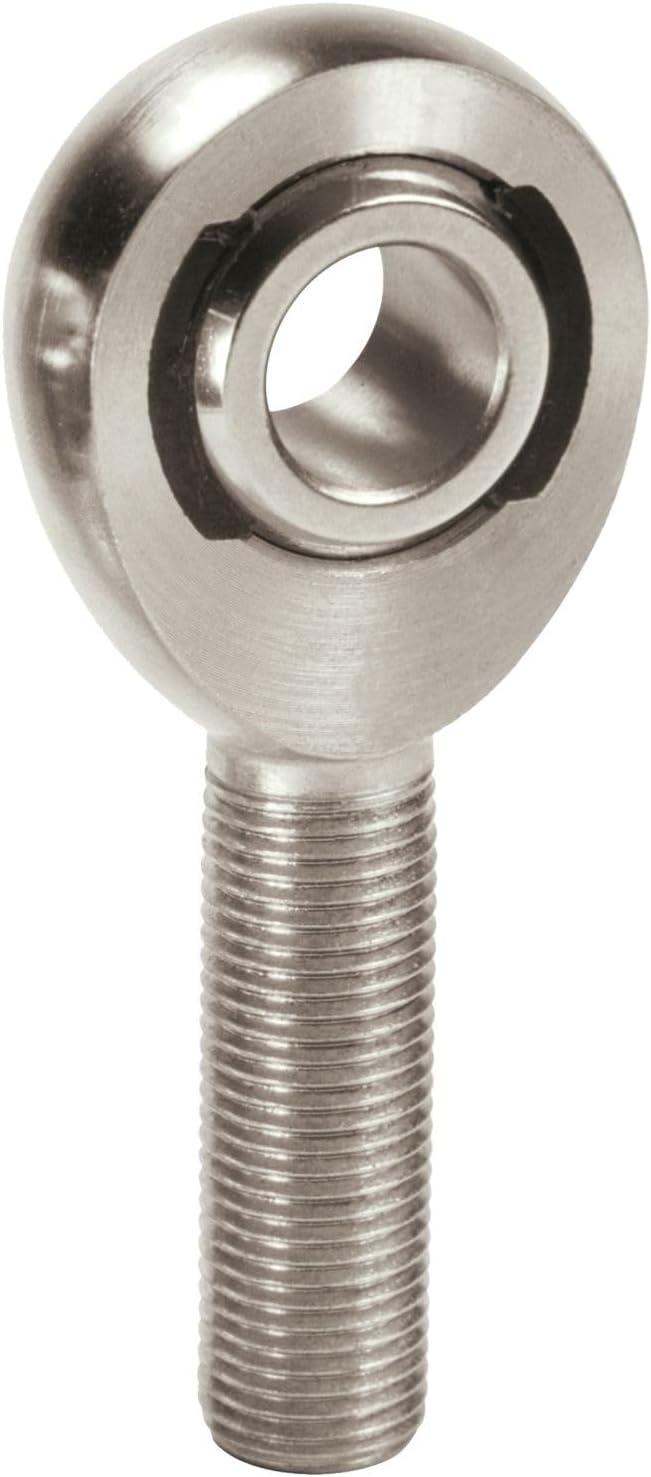

QA1 XML8 XM Series Chromoly Male Rod End

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XML8
8 reviews
Sale Price

$17.13

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XML8 is a heavy-duty male rod end from the XM Series Chromoly Steel lineup, engineered for maximum strength and durability in demanding motorsports applications. Featuring QA1's exclusive Endura Racing Series loaded slot design, this rod end utilizes an injection-molded Nylon/PTFE race that provides superior performance over traditional three-piece designs. Commonly used on 4-link and ladder bar suspension systems, the XML8 delivers the ultimate combination of strength, longevity, and maintenance-free operation.

Key Features:

  • Chromoly steel body, heat-treated and protective coated for corrosion resistance
  • 52100 bearing steel ball, heat-treated, hard chrome plated, and precision ground
  • Self-lubricating and self-sealing Nylon/PTFE injection-molded race keeps dirt and debris out
  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Injection-molded race won't pound out like traditional PTFE liners, extending service life

The Endura Racing Series loaded slot design features a significant groove machined completely around the interior body. After the ball is inserted, the Nylon/PTFE material is injected to form a durable race that serves as both a seal and lubricant. This innovative construction provides exceptional wear resistance and eliminates the need for regular maintenance, making it ideal for racing, off-road, and high-performance street applications.

Products specifications

A (+/-0.015)

2.437

Approx Bearing Weight

0.24

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.5

D (+/-0.010)

1.312

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.438 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

16,238 lbs.

Rod End Static Load Capacity (lbs)

16,238 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

1/2-20 LH in.

T (+/-0.005)

0.5

Thread Length

1.500 in.

Thread Type

Left Hand

Thread UNF-3A

1/2 -20

UTL Radical Static

16238

W (+/-0.005)

0.625
