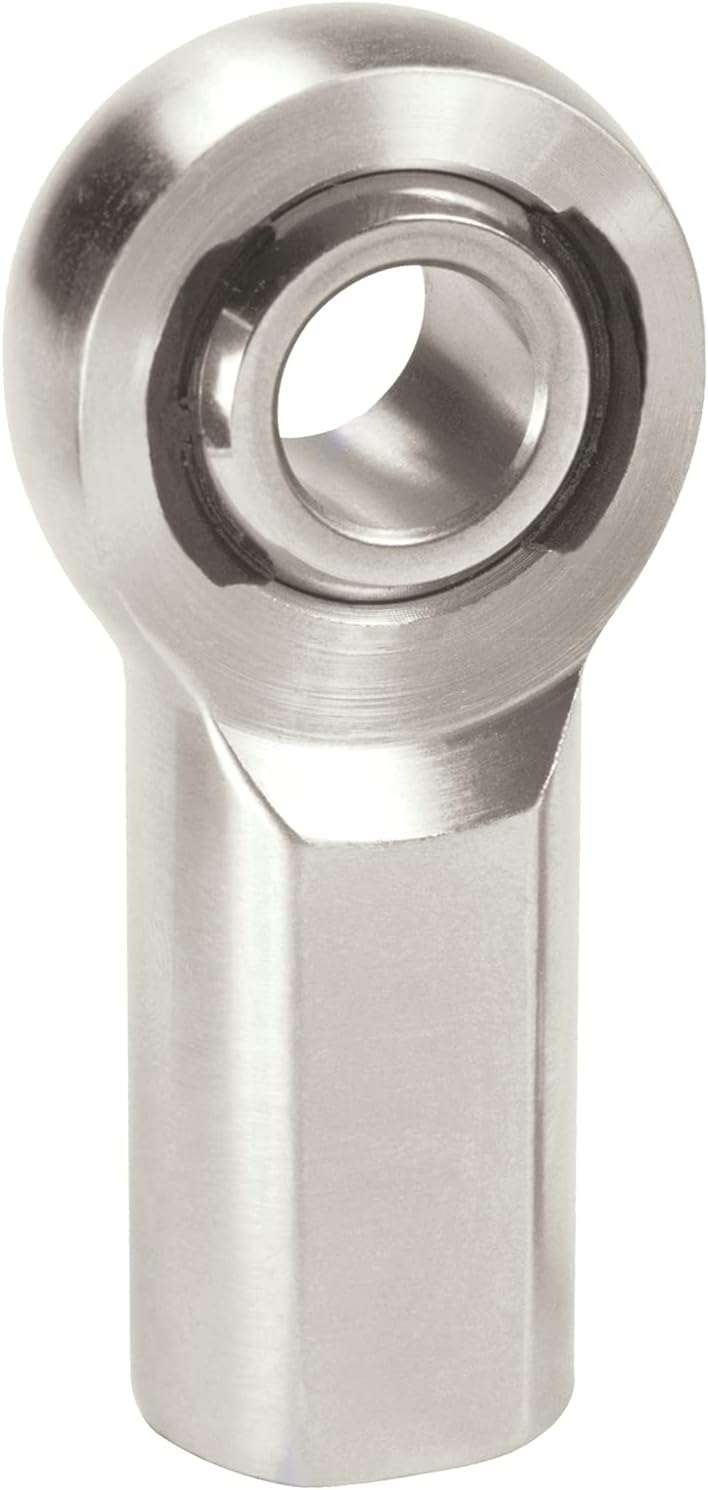

QA1 XFR8 X Series Chromoly Female Rod End 1/2 Bore 1/2-20 RH Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XFR8
11 reviews
Sale Price

$17.13

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XFR8 is part of the XF Series chromoly steel female rod ends, featuring a unique loader slot design that delivers ultra-high strength and performance for demanding motorsports applications. These heavy-duty rod ends are commonly used on 4-link and ladder bar suspensions for their exceptional strength and durability. This model features a 1/2 inch bore with 1/2-20 right-hand female threads.

Loader Slot Design Technology:

The XF Series features a reinforced Nylon 12 injection molded race with self-lubricating PTFE that helps keep out dirt and debris. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads. Unlike traditional PTFE liners that can pound out over time, the injection molded race provides superior longevity and consistent performance.

Ball Specifications:

  • 52100 bearing steel construction
  • Heat treated for maximum strength
  • Hard chrome plated finish
  • Precision ground for smooth articulation

Race Features:

  • Reinforced Nylon 12 with self-lubricating PTFE
  • Self-sealing design keeps contaminants out
  • Maintenance-free operation

Body Construction:

  • Heat treated alloy/chromoly steel
  • Protective coating for corrosion resistance
  • Rod end head diameter: 1.312 inches
  • Rod end head width: 0.625 inches

Exclusive Performance Features:

  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • 2-piece construction for reliability

XF Series rod ends offer good overall value and provide the best performance for most applications. The QA1 XFR8 is an ideal choice for race cars, street rods, and high-performance street vehicles where strength, durability, and maintenance-free operation are essential.

Products specifications

A (+/-0.015)

2.125

Approx Bearing Weight

0.31

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.187

D (+/-0.010)

1.312

E (+/-0.010

0.875

F (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

15,336 lbs.

Rod End Static Load Capacity (lbs)

15,336 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

1/2-20 RH in.

T (+/-0.005)

0.5

Thread Length

1.187 in.

Thread Type

Right Hand

Thread UNF-2B

1/2 -20

UTL Radical Static

15336

W (+/-0.005)

0.625
