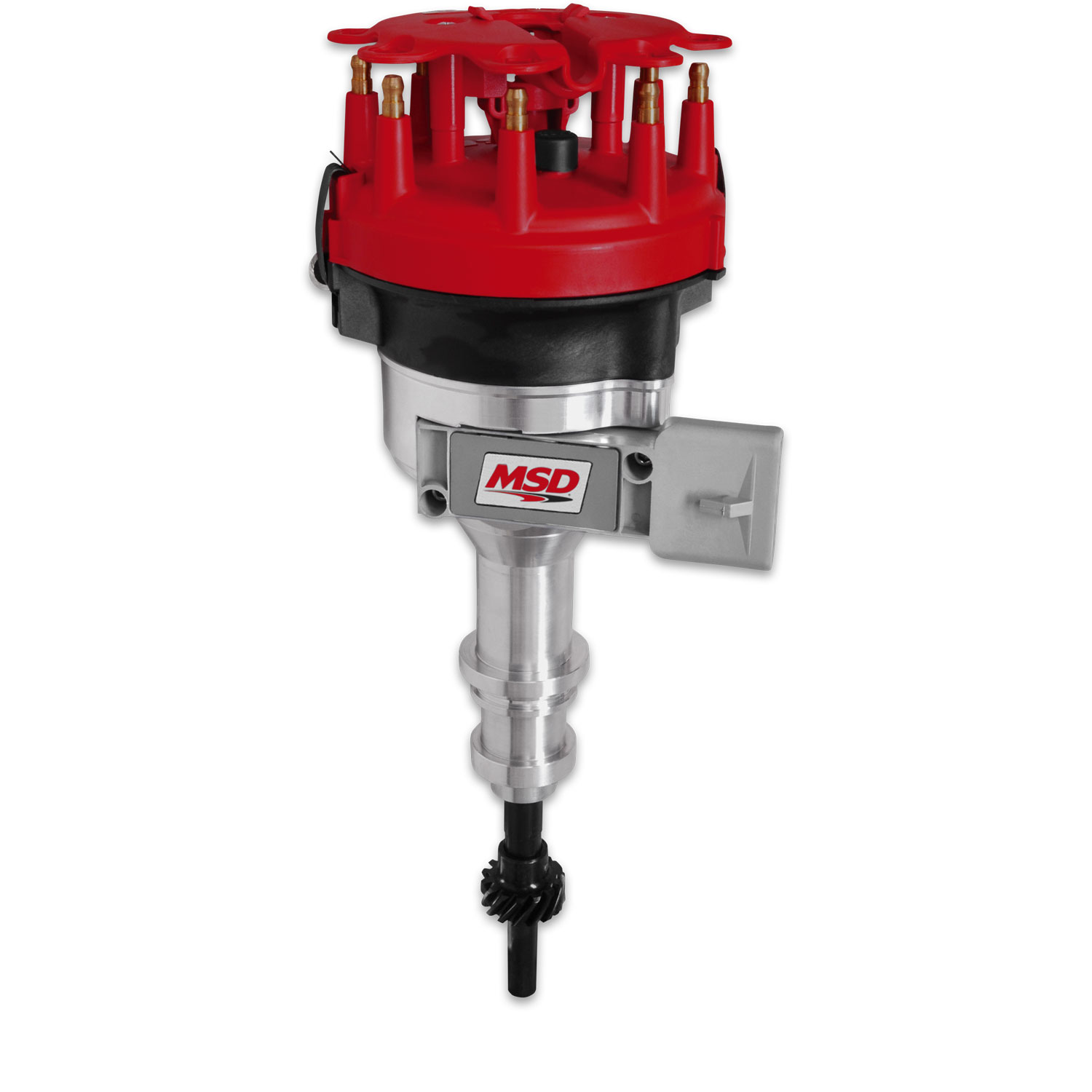

MSD 8456 Ford 5.0L Pro-Billet EFI Distributor

The MSD 8456 Pro-Billet Distributor is a direct drop-in upgrade for Ford 5.0L EFI engines, replacing the factory distributor shaft — one of the most common weak links on high-output EFI builds. Built from CNC-machined billet aluminum, this distributor delivers the precision, durability, and reliability demanded by serious performance applications.

At the core of the design is an oversized polished steel shaft supported by a sealed ball bearing at the top of the housing, ensuring accurate shaft guidance across the entire RPM range. The shaft receives a Melonite QPQ coating that reduces friction, resists corrosion, and minimizes initial wear. The distributor gear is manufactured from proprietary ductile iron with an increased outer hardened layer (RC 55-60), a micro-polished surface for smooth contact, and an elevated interstitial carbide concentration for long-term wear resistance.

Installation is straightforward — simply remove the stock distributor and bolt the MSD 8456 in its place. The stock-style trigger pick-up accepts factory EFI connectors with no wiring modifications required. The TFI module mounts directly to the distributor, maintaining a clean, factory-style integration.

Key Features:

• CNC-machined billet aluminum housing for precision fitment
• Oversized polished steel shaft with sealed top-mounted ball bearing
• Melonite QPQ-coated shaft for friction reduction and corrosion resistance
• Proprietary ductile iron gear with hardened outer layer (RC 55-60)
• Micro-polished gear surface for smooth, quiet engagement
• Interstitial carbide concentration for improved wear resistance
• Stock-style trigger pick-up — accepts factory EFI connectors
• TFI module mounted directly to distributor

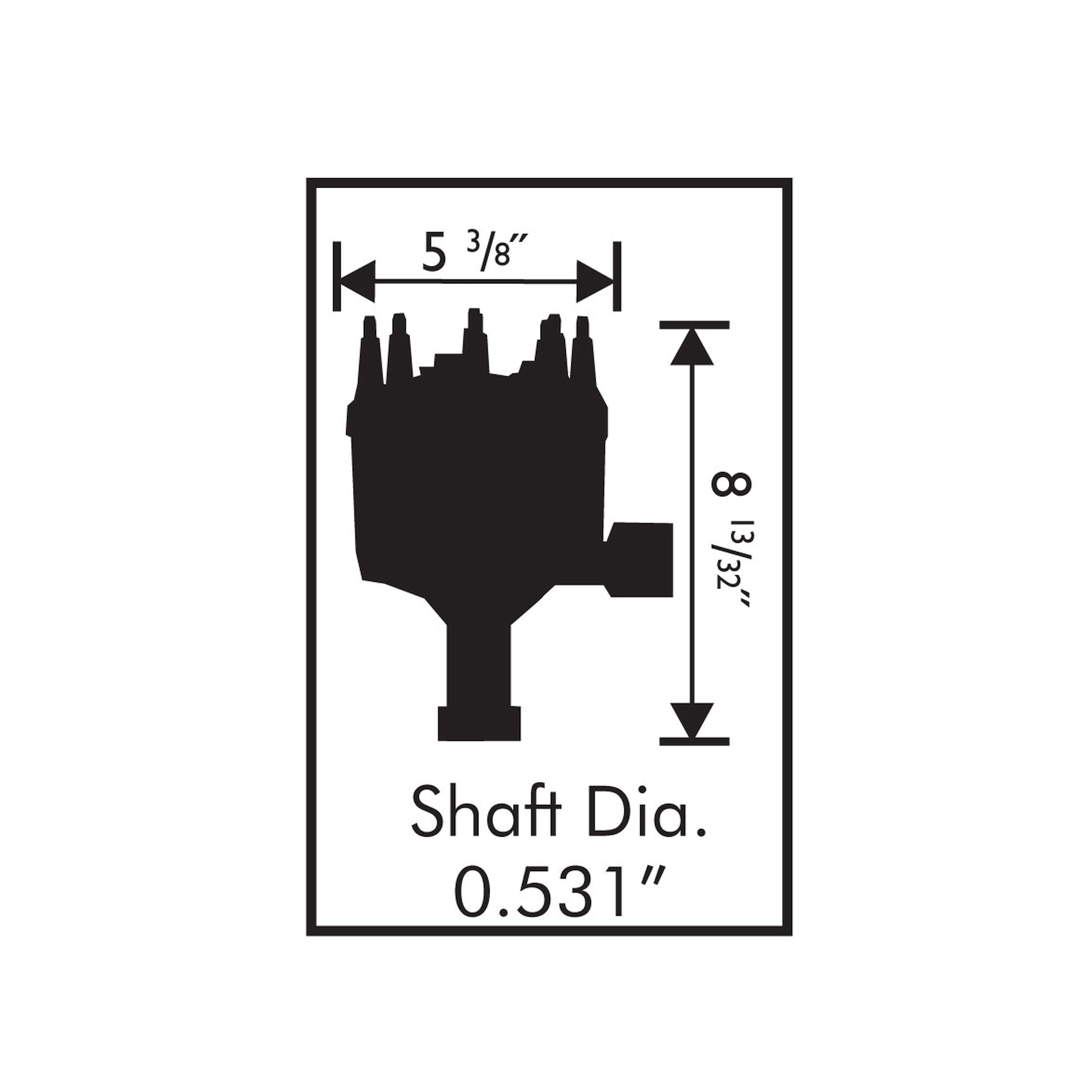

• Distributor stands 8.406 in. tall from engine deck to top of cap

What's Included:

• Pro-Billet distributor housing and shaft assembly
• High-quality distributor cap with brass terminals
• Heavy-duty rotor
• Special gear compatible with factory camshafts
• Camshaft and lifter lubricant for installation

The MSD 8456 is compatible with the MSD Ford TFI Replacement Module (sold separately) and accepts the MSD Ford 302/351W Steel Distributor Gear (PN 85834) as an optional upgrade for roller cam applications.
