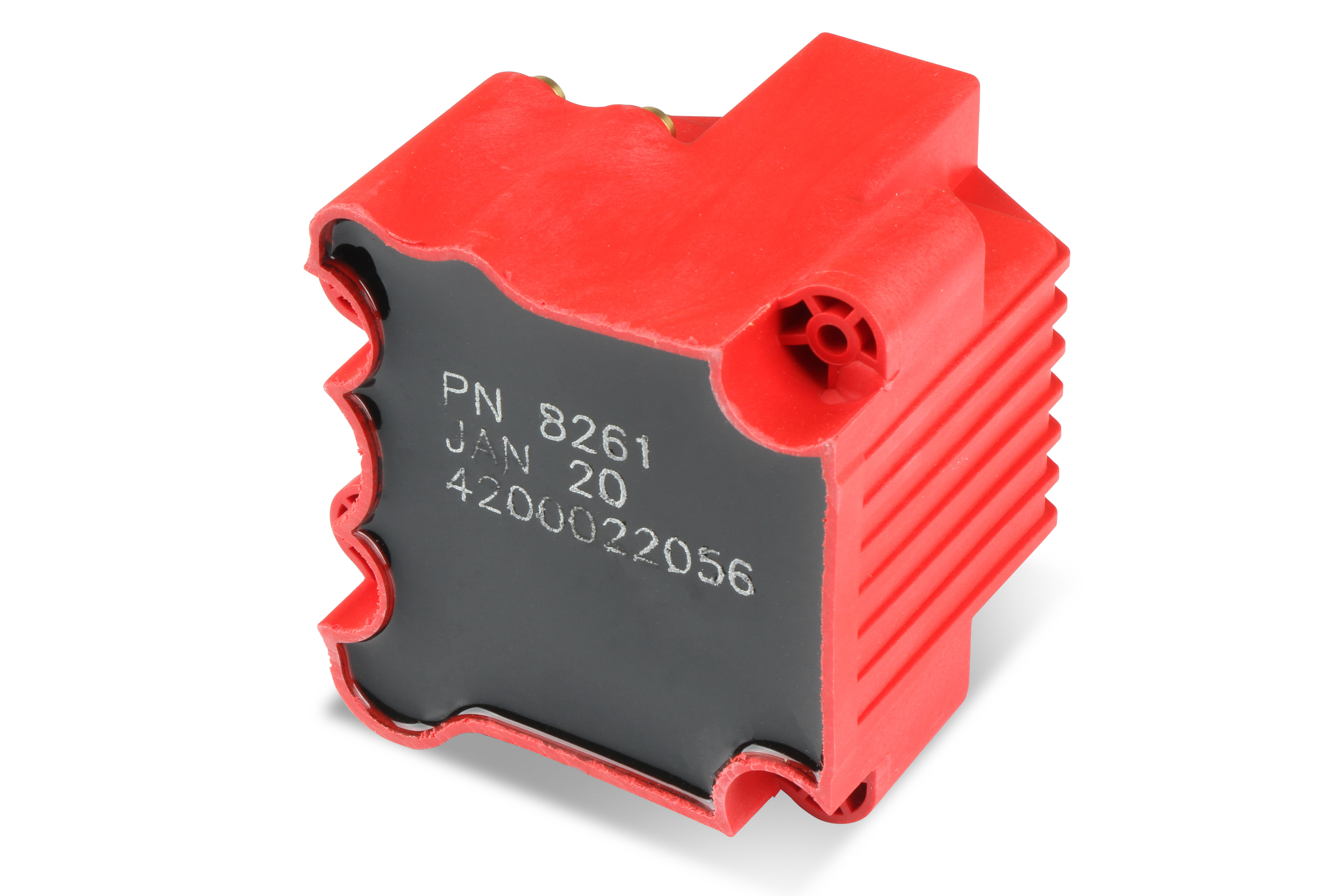

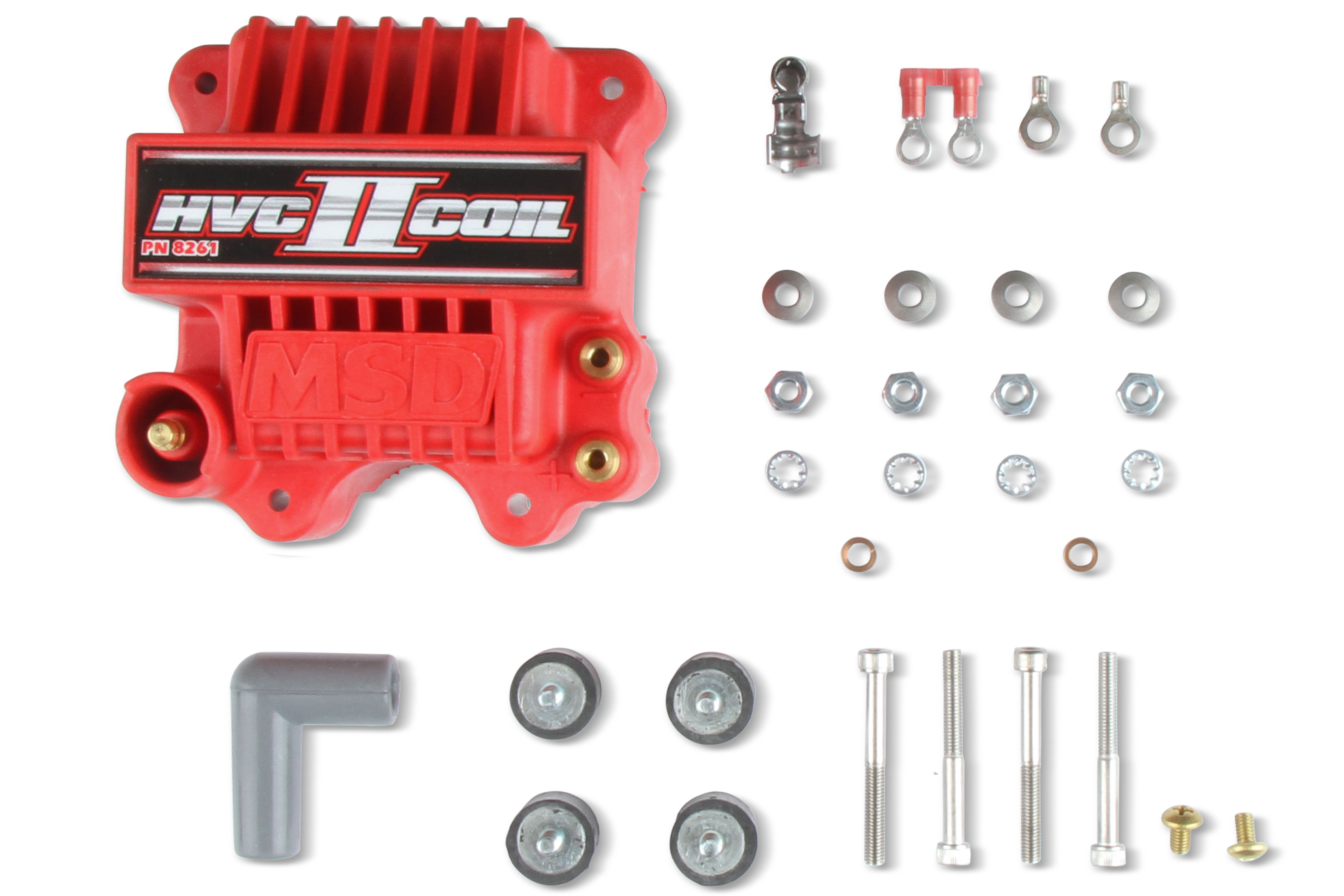

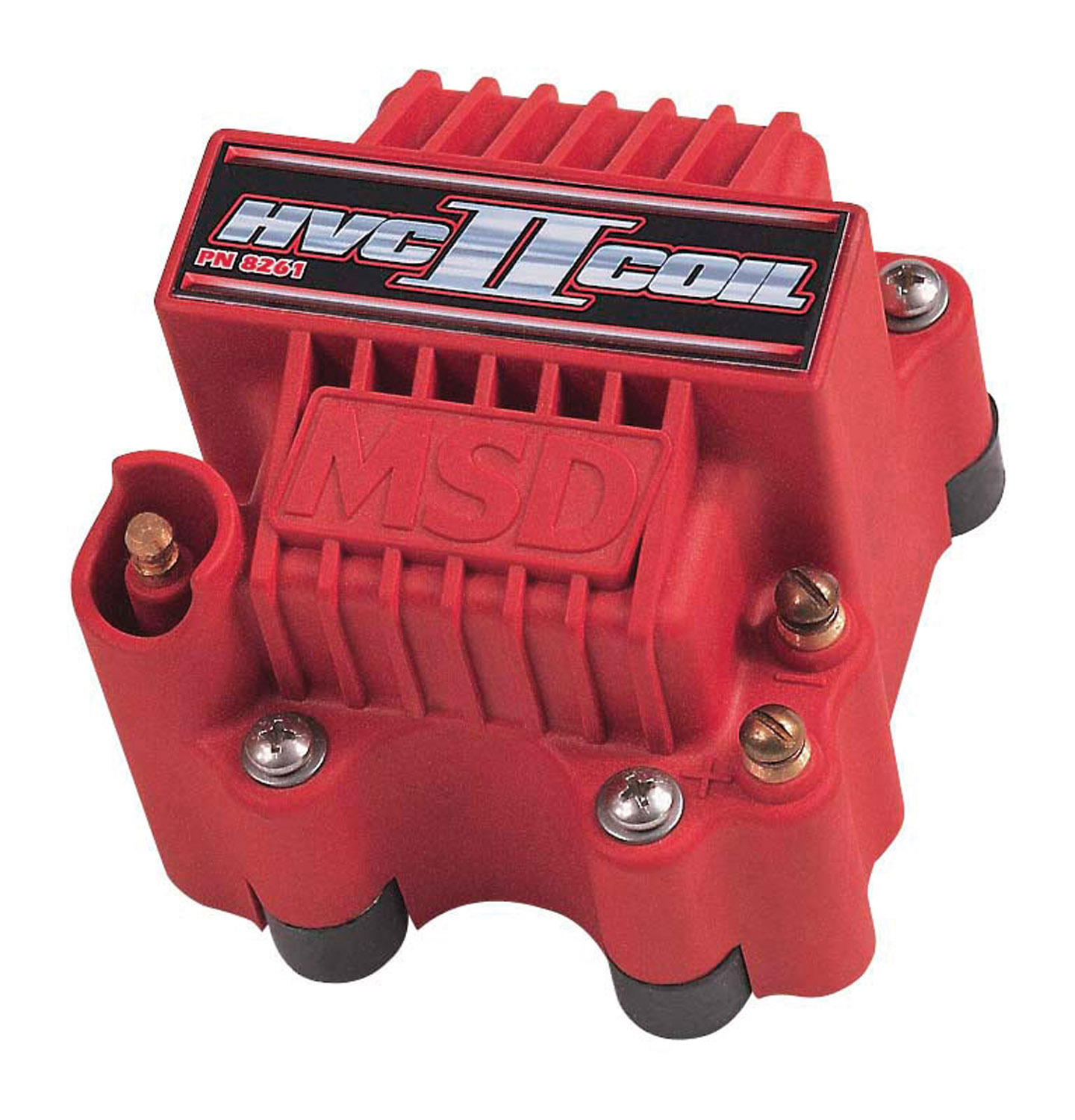

MSD 8261 HVC-2 Series High Voltage Racing Ignition Coil - Red

Manufacturer

Part Number

8261
Sale Price

$387.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MSD 8261 HVC-2 Series Ignition Coil is a high-performance, high voltage/high current racing ignition coil engineered for demanding drag race applications. Designed to pair with MSD 7 or 8 Series ignition controls, this coil delivers up to 45,000 volts of maximum output voltage with a 2-amp peak current and a 150-microsecond spark duration — ensuring reliable ignition even under extreme compression, forced induction, and alcohol-fuel conditions.

At the heart of the HVC-2 is an iron U-Core winding design with a segmented bobbin for optimized voltage distribution. The bobbin is molded from DuPont Rynite FR946 thermoplastic material, which provides exceptional dielectric strength at elevated temperatures. MSD also incorporates a premium winding material with enhanced insulation capable of withstanding extreme voltages, resulting in fast rise times, long spark duration, and minimal energy loss.

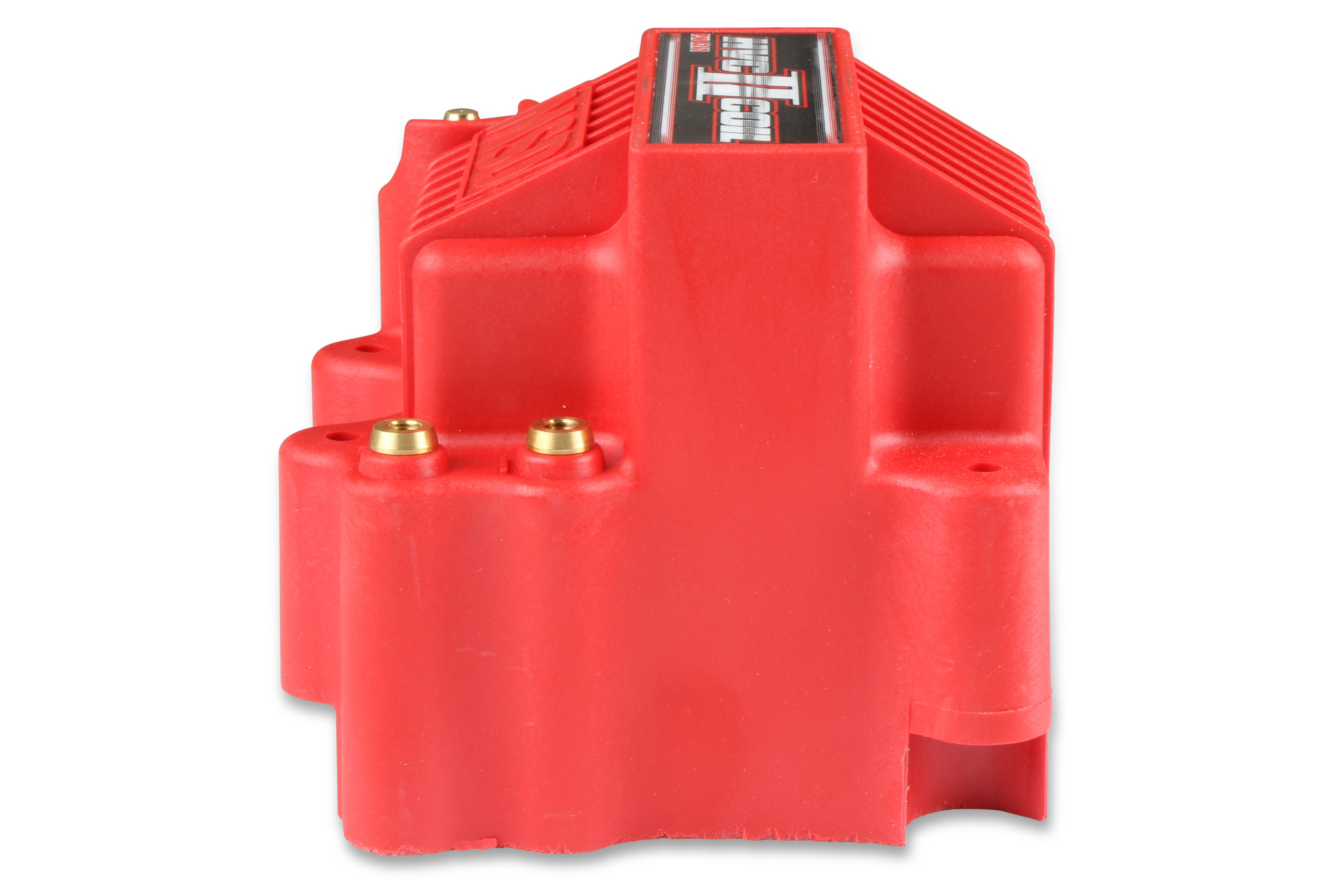

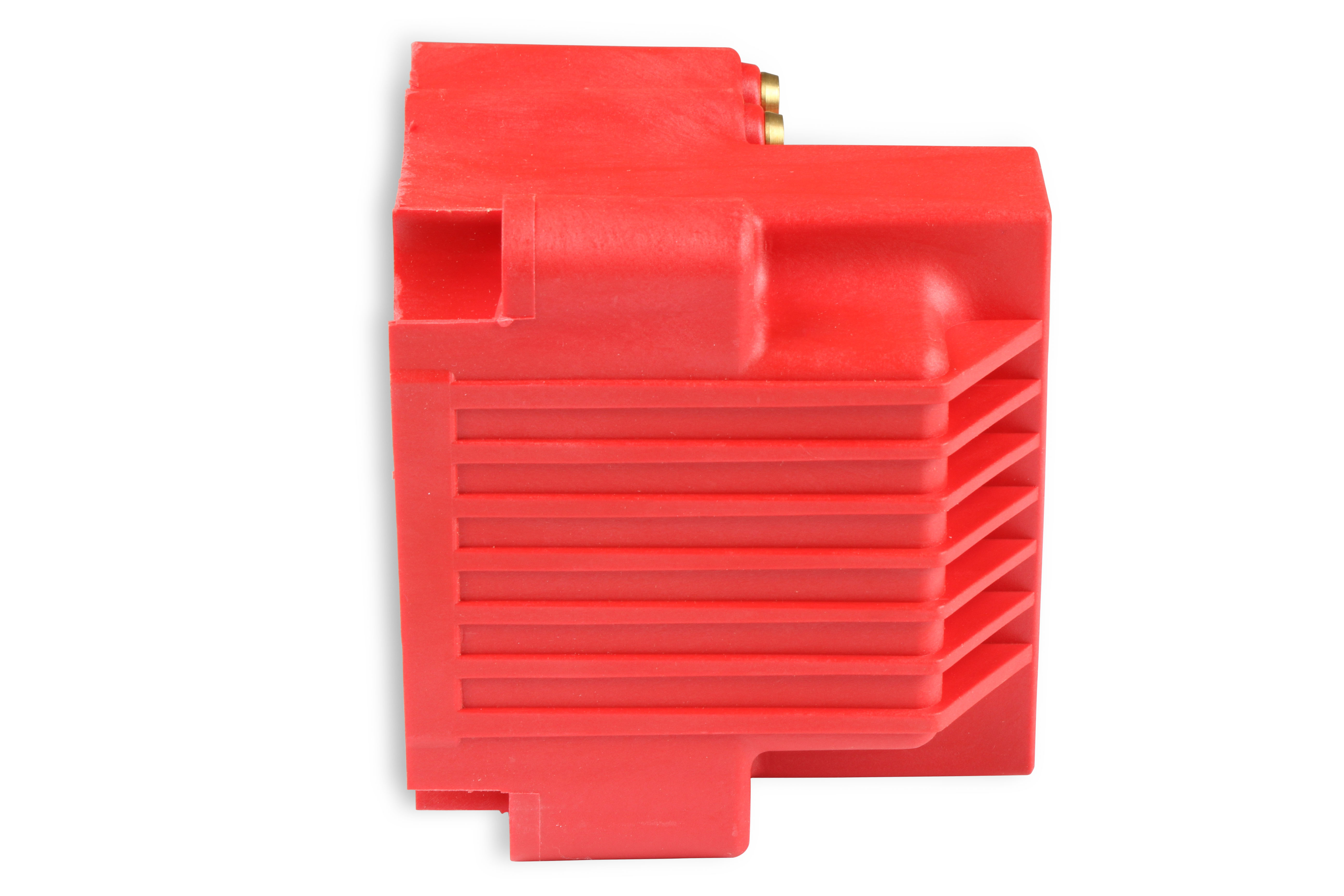

The square-profile housing — also molded from Rynite — features widely spaced brass primary terminals and an isolated secondary tower for increased spark isolation and safety. The entire assembly is fully potted in epoxy compound for fracture resistance and vibration immunity, and the coil ships with rubber shock mounts for secure, vibration-dampened installation.

Key Features:

  • Iron U-Core winding design with segmented bobbin for improved voltage distribution
  • 70:1 turns ratio with low primary resistance (0.160 ohms) for maximum voltage output
  • Up to 45,000V maximum output with 2A peak current and 150µS spark duration
  • DuPont Rynite FR946 housing with excellent high-temperature dielectric properties

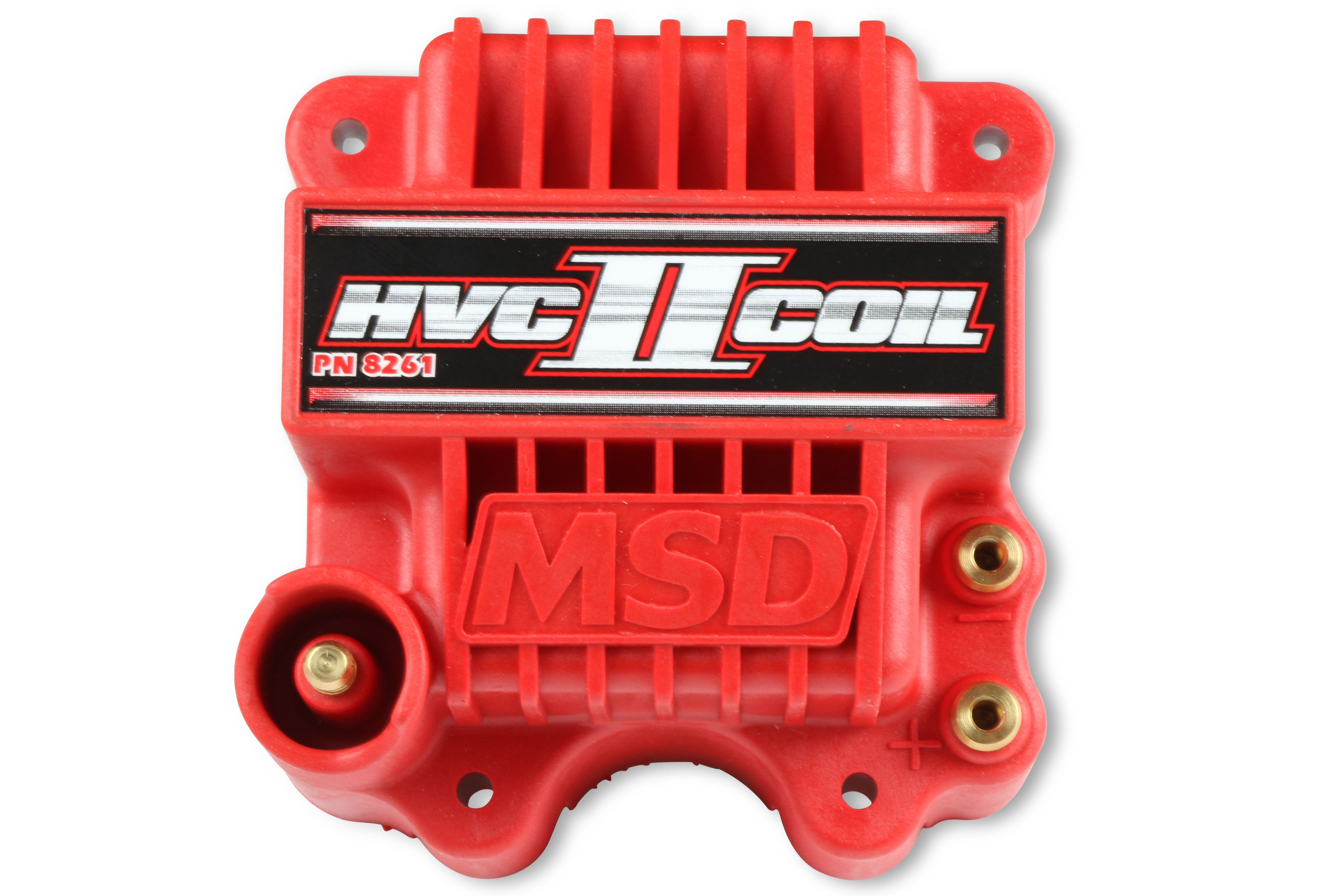

  • Isolated secondary tower and widely spaced brass primary terminals for spark isolation
  • Fully epoxy-potted windings for fracture and vibration resistance

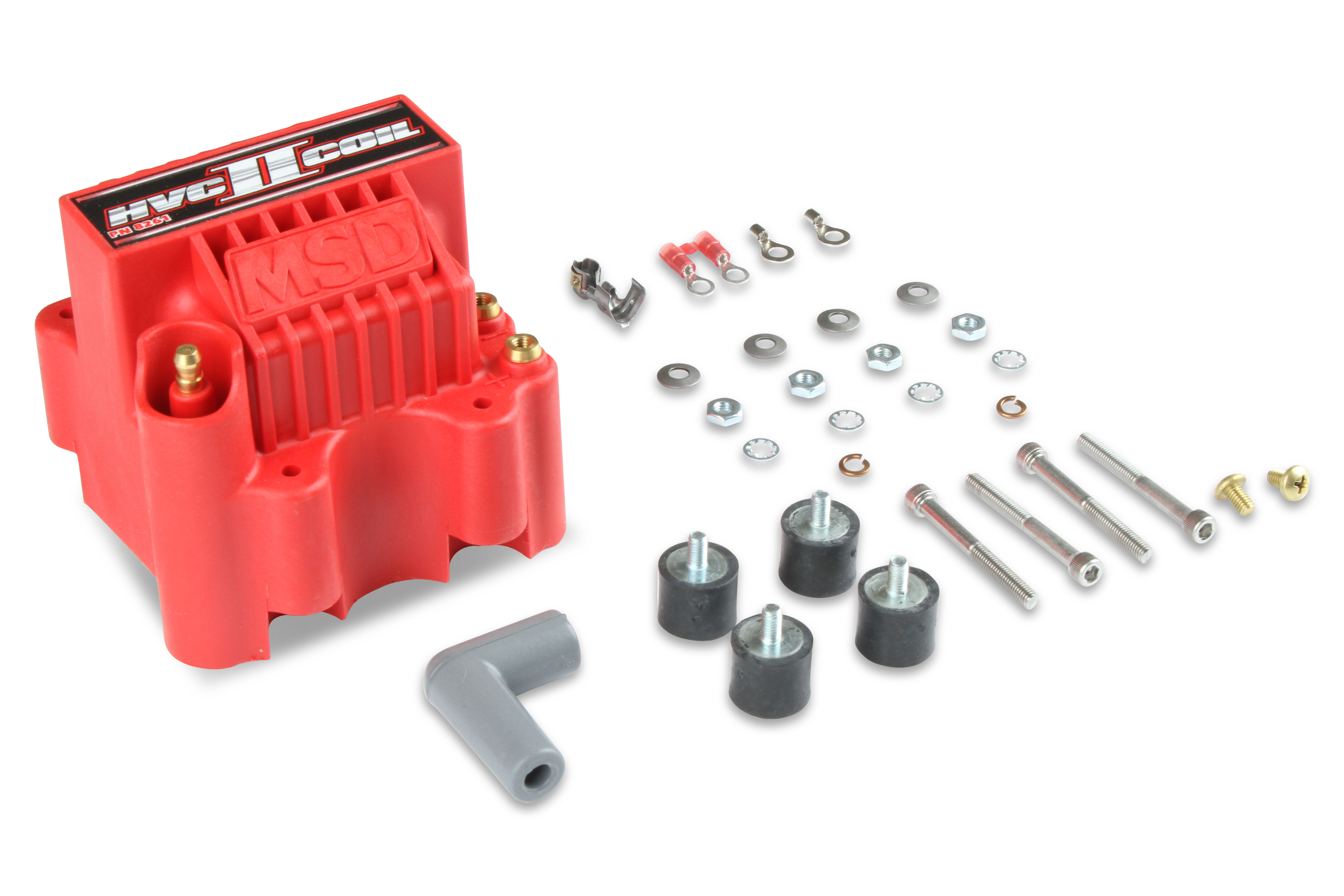

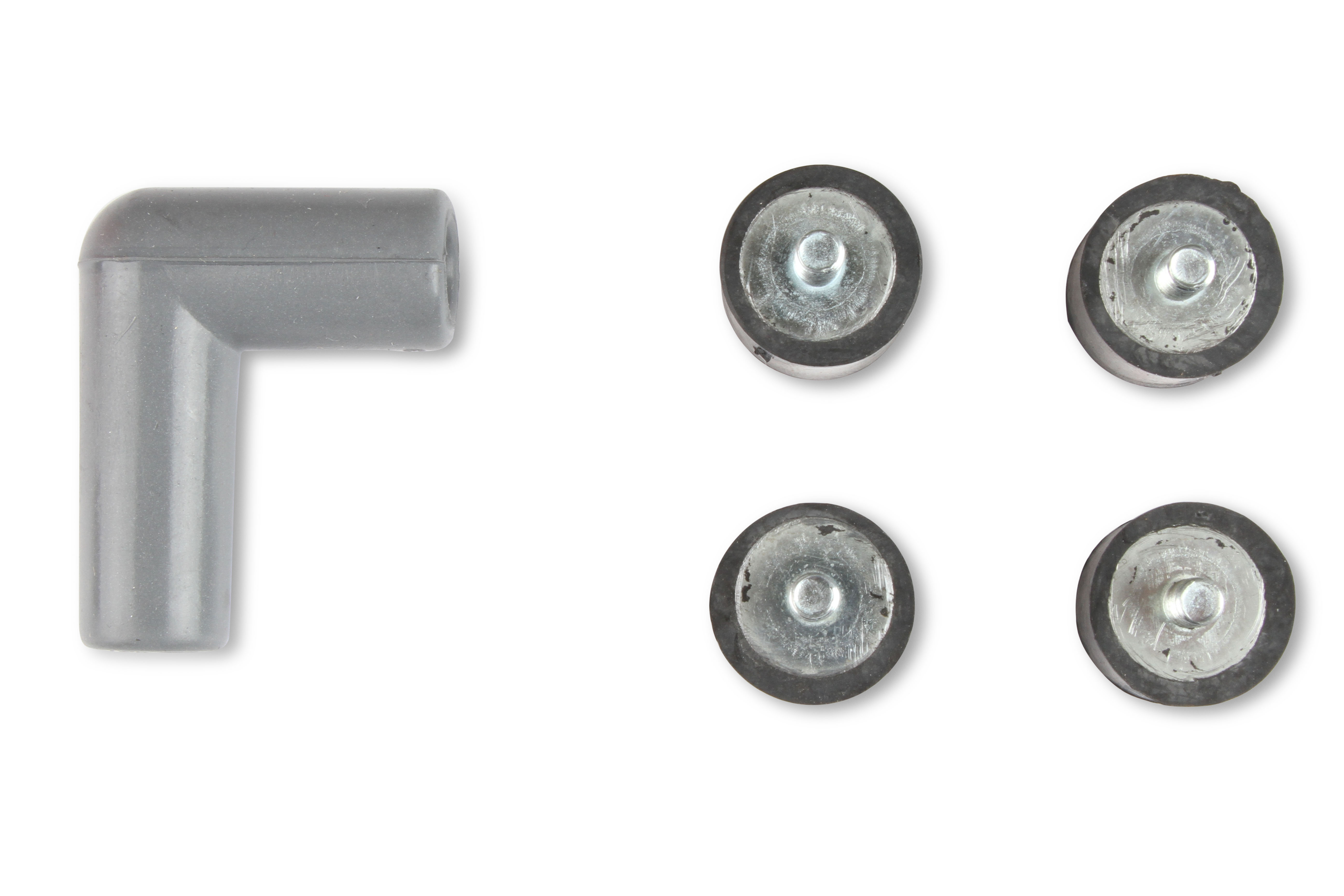

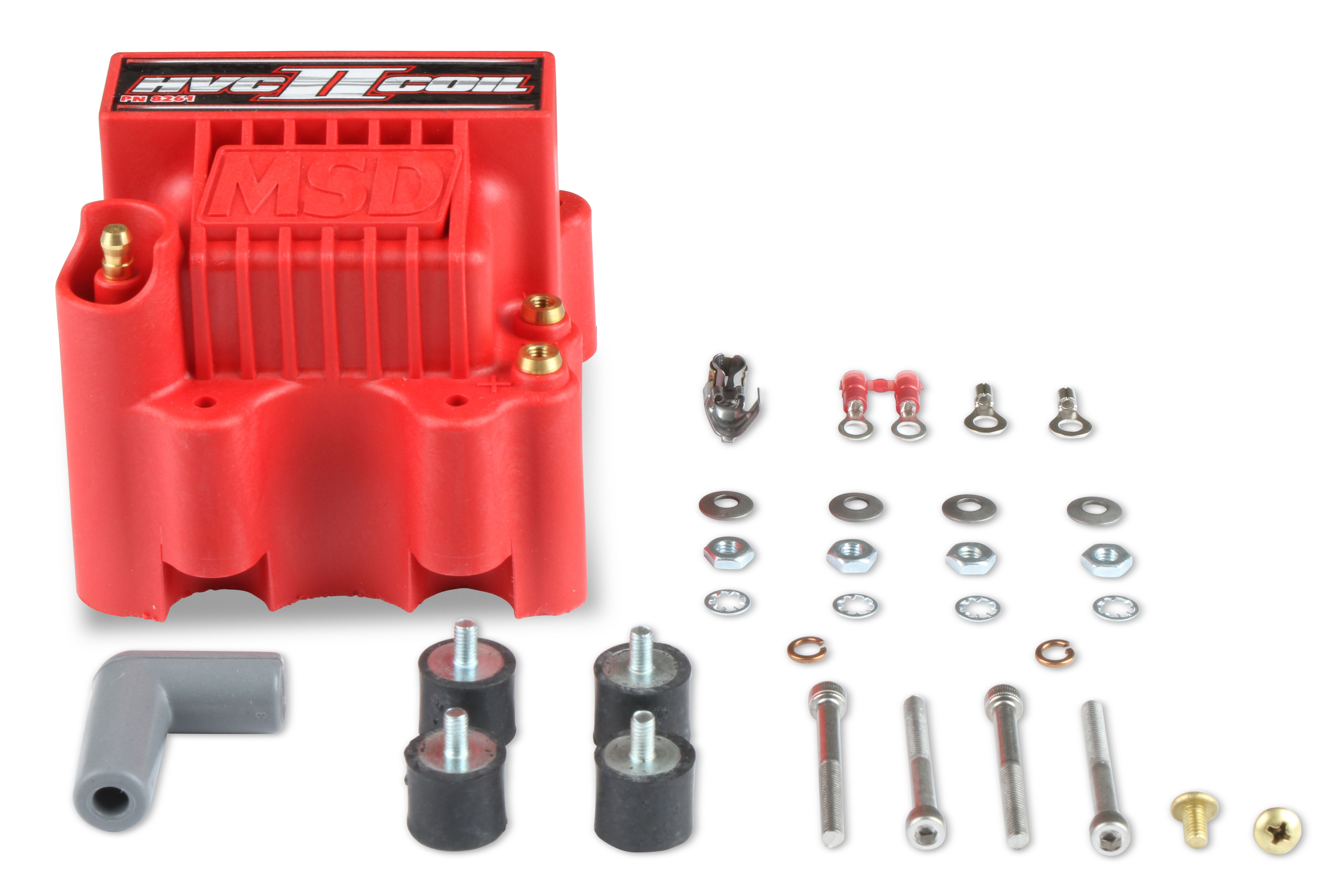

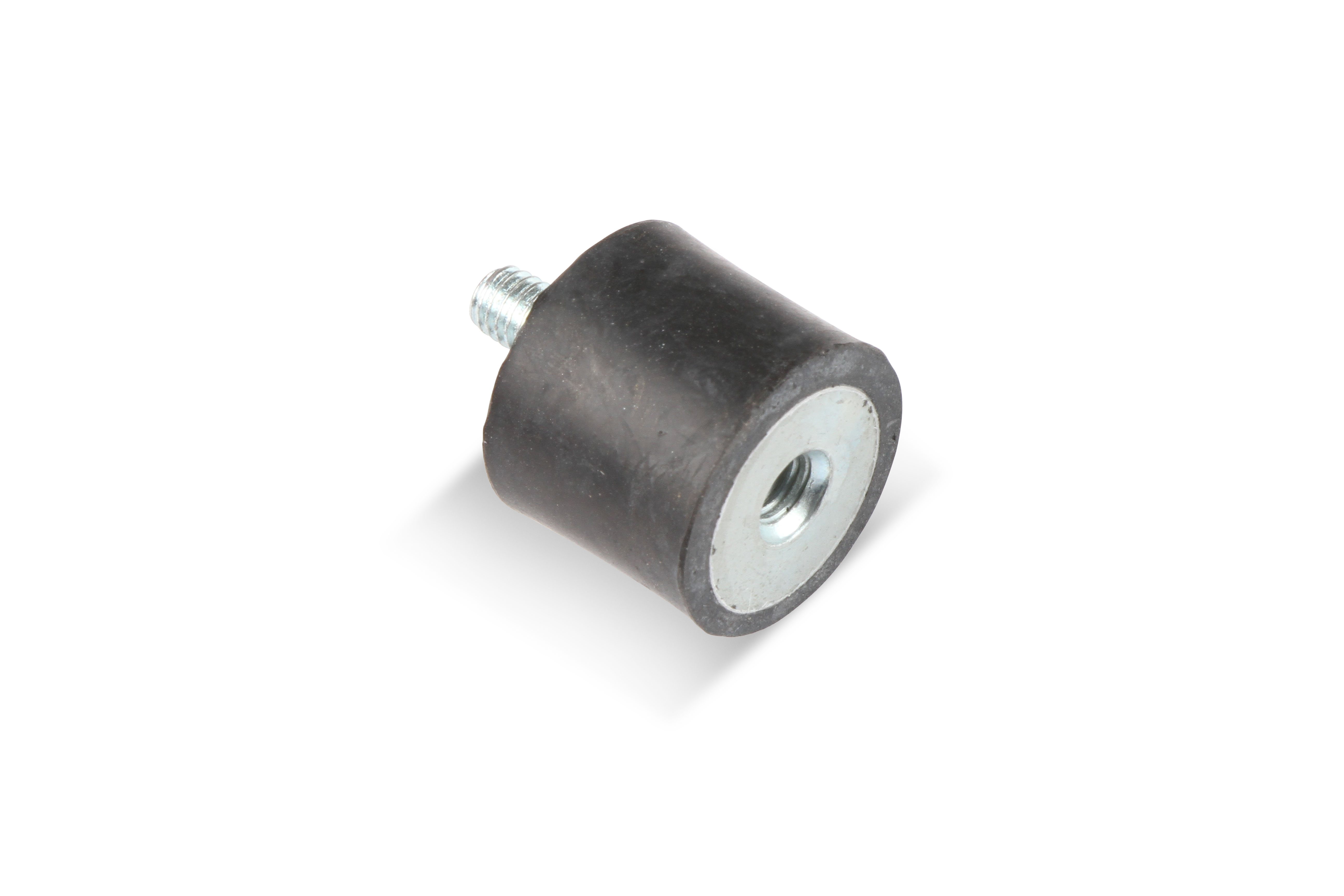

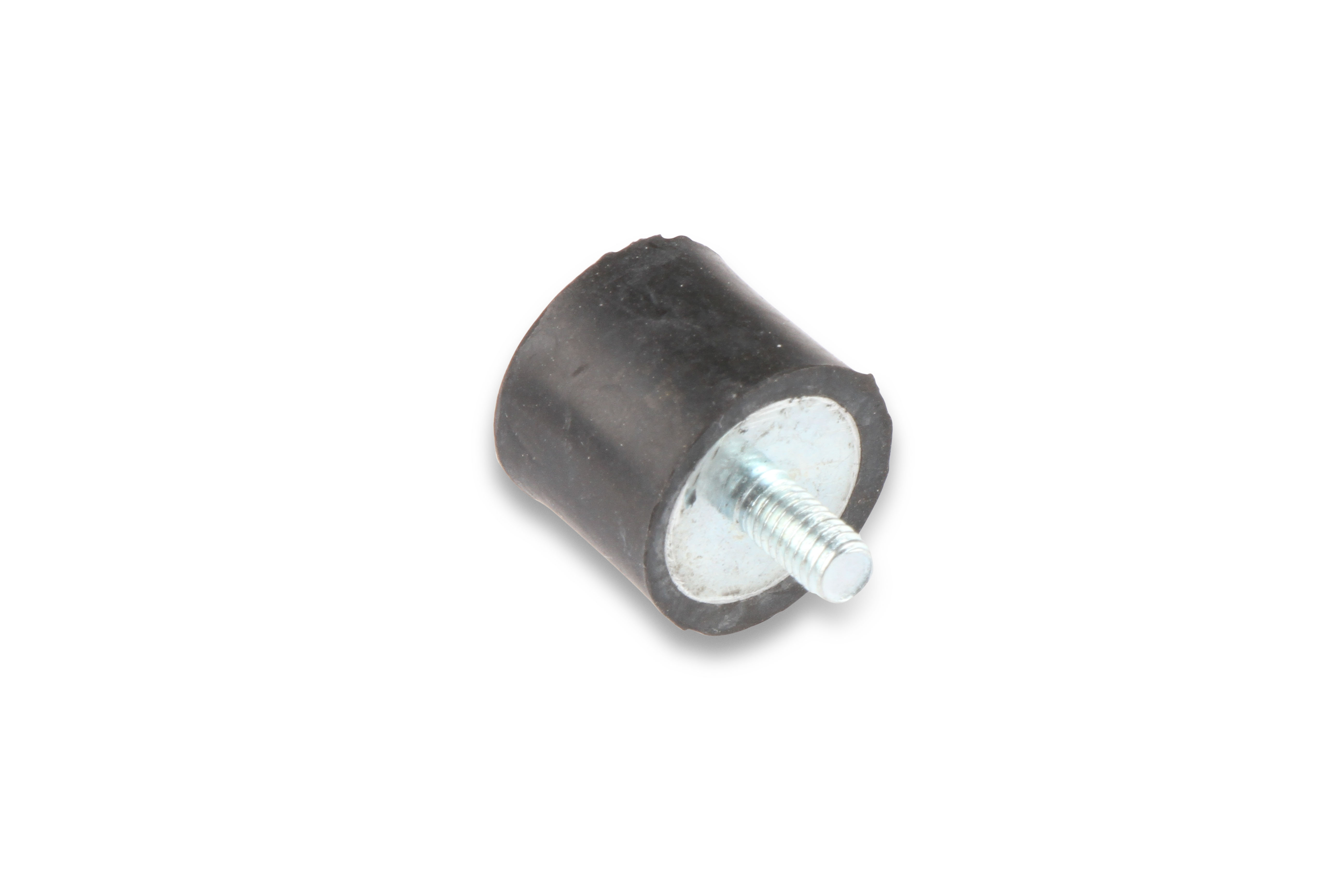

  • Supplied with rubber shock mounts for installation
  • 0.250 mH inductance; 30,000-ohm secondary resistance
  • Designed for drag racing use with MSD 7 or 8 Series ignition controls
  • Sold individually — Red finish

The MSD 8261 HVC-2 ignition coil is built entirely in-house by MSD, giving engineers direct control over quality and consistency. It is the ideal upgrade for high-compression, turbocharged, supercharged, or alcohol-fueled racing engines demanding maximum ignition energy.

Products specifications

Inductance

.250 mH

Secondary Resistance

30 ohms

Spark Duration

150 uS

Turns Ratio

70:1

Primary Resistance

.016 OHMs

Item Weight

3.750 lbs.

Type

Drag Race / Long Duration Use

Color

Red

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Maximum Voltage

45000

Peak Current

2 mA
