Wiseco Pistons K548M87 Pistons

(Mitsubishi Lancer 1996-2006, Eclipse 1993-2005, Outlander 2003, Mighty Max 1993-96, Galant 1994-2005, Montero Sport 1997-99 + 3 more models)

Manufacturer

Part Number

K548M87
Black Friday Price

$746.99

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

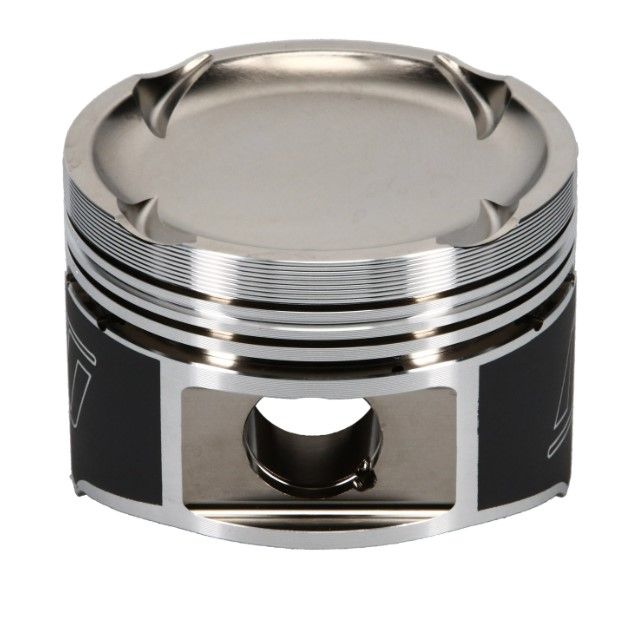

Wiseco Pistons K548M87 Pro Tru Pistons
Sport Compact Series
w/ .200" Wall Tool Steel Pins
Set of 4 Pistons
Recommended RingSet: 8700XX
Rings & Pins Included

World renowned for our work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated sport compact engines.

Wiseco?s Sport Compact Pro Tru line creates the best value in forged pistons today. These American made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines. By using dedicated forgings specific to the final piston shape, Pro Tru pistons are stronger and lighter than industry standards.

Pro Tru sets include plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages which provide excellent seal, friction reduction, and long life. Pro Tru pistons also come in a variety of volumes that allow the engine builder to choose the exact compression ratio required for their engine.

Products specifications

Fits

Mitsubishi Lancer 1996-2006, Eclipse 1993-2005, Outlander 2003, Mighty Max 1993-96, Galant 1994-2005, Montero Sport 1997-99; Buick Electra 1973-76; Eagle Talon 1993-98; Plymouth Laser 1993-94

Bore

87mm

Bore (in)

3.425 in.

Bore (mm)

87.000mm

Comp Height

35

Comp Ratio

8.5:1

Compression Distance (in)

1.378 in.

Dome Volume

-17

File Fit

No

Gapless

No

Gram Weight

360

Oil Ring Material

Stainless steel

Oil Ring Tension

Standard

Oil Ring Thickness

2.8mm

Pin Diameter (in)

0.866 in.

Piston Head Volume (cc)

+17.00cc

Piston Material

Forged aluminum

Piston Style

Dish, with four valve reliefs

Quantity

Sold as a kit.

Rod

150

Second Ring Facing Material

Phosphate coated

Second Ring Material

Cast iron

Second Ring Thickness

1.2mm

Stroke

100

Top Ring Facing Material

Gas nitrided

Top Ring Material

Steel

Top Ring Thickness

1.0mm

Wrist Pin Style

Press-fit or floating

Piston Quantity

4

Make

Mitsubishi

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

87.00

Industry

Automotive

Product Market

Sport Compact

Engine Type

ICE

Engine

4G63

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.8661

Compression Height

35.00

Forging Type

FLAT

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-17.00

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1

EBAY Category ID

33623

Engine - Web

4G63

Make - Web

Mitsubishi

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Title

Wiseco - Mitsubishi, 4G63, 87.00 mm Bore, Piston Set of 4

Title - Web

Professional Mitsubishi 4G63 Piston Set of 4 - 87.00 mm Bore - 35.00 mm CH, -17.00 CC
