Product Details

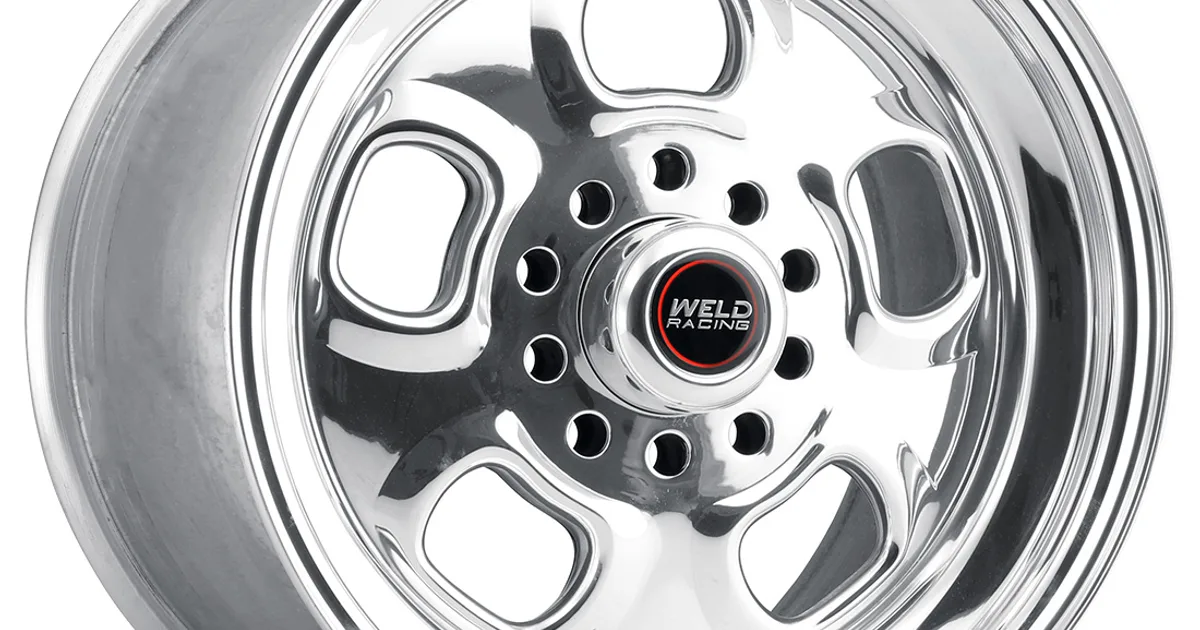

The Weld Racing Sport Forged Rodlite brings together classic street rod styling with modern forged aluminum wheel technology. Precision crafted from cold forged aluminum, the Rodlite delivers superior strength while weighing pounds less than similar cast wheel designs.

Key Specifications:

  • Size: 15 inches diameter x 14 inches width
  • Bolt Pattern: Dual drilled 5x4.5" and 5x4.75" (fits Ford and GM applications)
  • Backspacing: 7.5 inches (0mm offset)
  • Center Bore: 3.18 inches
  • Lug Nut Seat: Shank style
  • Weight: 23.0 lbs per wheel

Construction & Features:

  • Two-piece wheel design uses revolutionary cold forged and welded construction for a lighter and stronger wheel compared to cast alternatives
  • Mirror-like polished finish on both center and shell
  • Guaranteed tubeless with brilliantly polished show-quality finish
  • Aluminum push-thru center cap included with each wheel
  • Non-beadlock design
  • Not hub-centric
  • Manufactured in the USA

The Rodlite offers the best strength-to-weight ratio and lowest rotational moment of inertia of all mid-priced wheels, making it an excellent choice for street and strip applications where reducing unsprung weight improves acceleration and handling. The Sport Forged wheels represent classic designs that are perhaps the most well-known in the Weld family, with a timeless look that has no shortage of style.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

7.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Rodlite Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

0.00mm

Offset (mm)

0.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

No

Washer Outside Diameter (in)

1.250 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

14.00 in.
