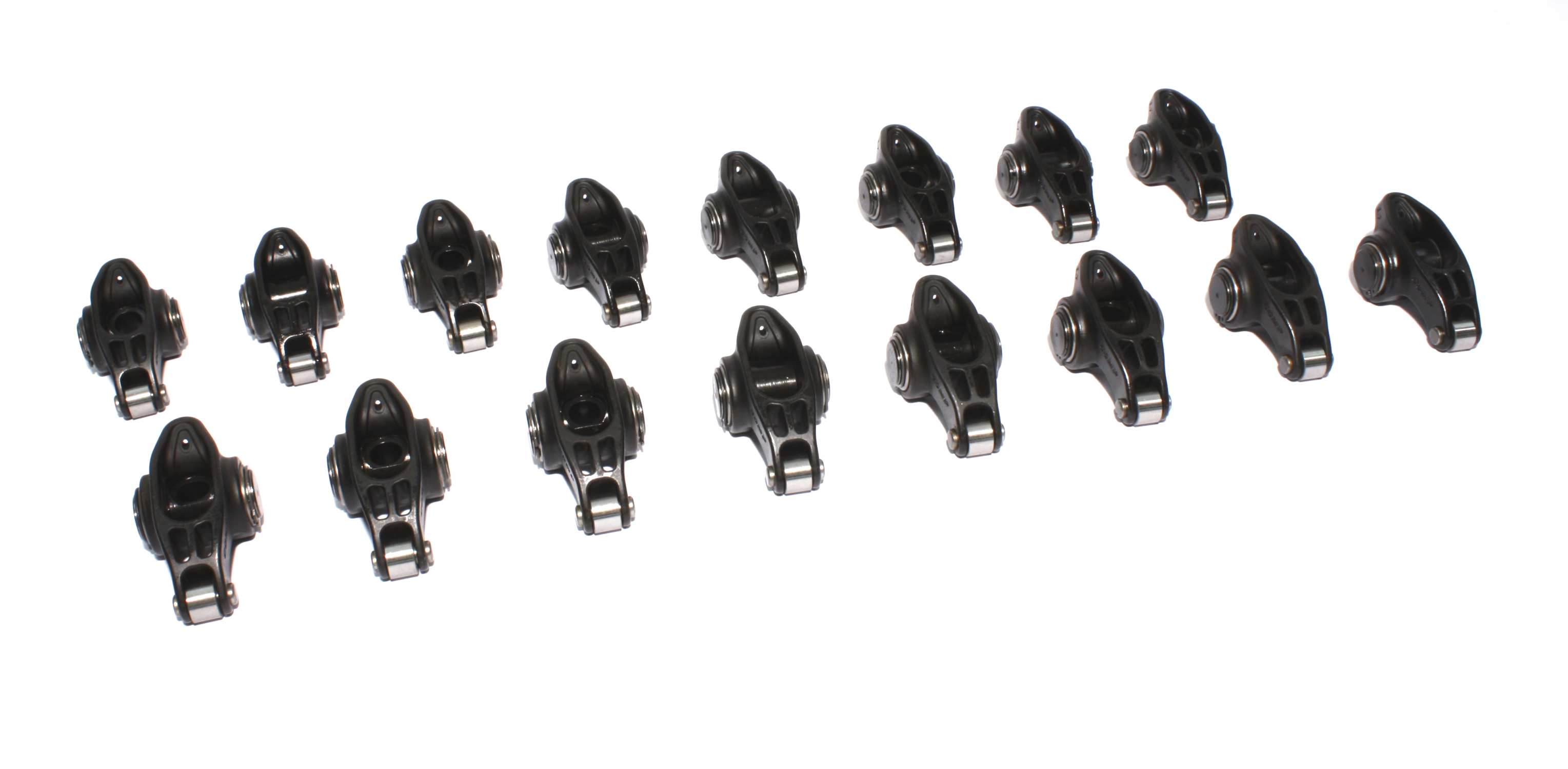

COMP Cams 1630-16 Ultra Pro Magnum Roller Rocker Arms 1.7 Ratio Ford 7/16" Stud

(Ford F-150 1975-79, Mustang 1969-73, F-250 1975-97, Thunderbird 1968-76, F-350 1975-97, Galaxie 500 1969-74, F-100 1975-79 + 38 more models)

Manufacturer

Picture for manufacturer COMP Cams

Part Number

1630-16
11 reviews
Sale Price

$534.95

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 1630-16 Ultra Pro Magnum Roller Rocker Arm Set features an investment cast 8650 chromoly body with an arched, web-like design that delivers a nearly 29 percent increase in strength and rigidity while reducing the moment of inertia and optimizing dynamic balance. Designed specifically for Ford V8 Boss 302, 351C, 429-460 applications with 7/16" studs and 1.7 ratio, this complete 16-piece set represents the pinnacle of stud-mount rocker arm performance.

Key Features:

  • Oversized trunnion with precision-sorted needle bearings designed for high-load valve springs
  • Hardened roller tips reduce friction and eliminate valve stem side loading that causes premature valve guide wear
  • Increased retainer and valve spring clearances enable the use of large-diameter valve springs, retainers, and +.050" locks without clearance issues
  • Black oxide exterior finish offers distinctive appearance with long-term corrosion resistance
  • Design maximizes lift and valvetrain control at high RPM

Utilizing years of valvetrain design experience, FEA stress analysis technology, and exhaustive dyno and Spintron testing, COMP Cams engineering team scrutinized everything from casting techniques to valve spring clearance to ensure Ultra Pro Magnum rocker arms deliver superior stud mount rocker performance, stability, and value. These full roller rocker arms are engineered for serious performance builds demanding maximum reliability and precision.

Products specifications

Fits

Ford F-150 1975-79, Mustang 1969-73, F-250 1975-97, Thunderbird 1968-76, F-350 1975-97, Galaxie 500 1969-74, F-100 1975-79, F-250 Pickup 1973-79, 1983-97, Fairlane 1970, Ranchero 1970-77, Torino 1970-76, F53 1988-97, Falcon 1970 + 32 more models

Maximum Valve Spring Open Pressure

850

Engine Family

Ford Boss 302, 351C, 429-460

AMAZON ASIN

B003HGFPCC

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Rocker Arm Material

8650 Chromemoly Steel

Rocker Arm Ratio

1.7

Rocker Arm Series

Ultra Pro Magnum

Rocker Stud Diameter

7/16
