JE Pistons 242928 Piston Set, 2618, Inv Dome/dish, 3.228 Bore, 1.286 Cd, 0.787 Pin, Set Of 4.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons 279947 Piston Set, 2618, Flat Top, 3.327 Bore, 1.593 Cd, 0.787 Pin, Set Of 6.

Part Number

242928
5 reviews
04/16/2034 11:28 PM
Sale Price

$696.91

Estimated ship date Tuesday, April 16

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

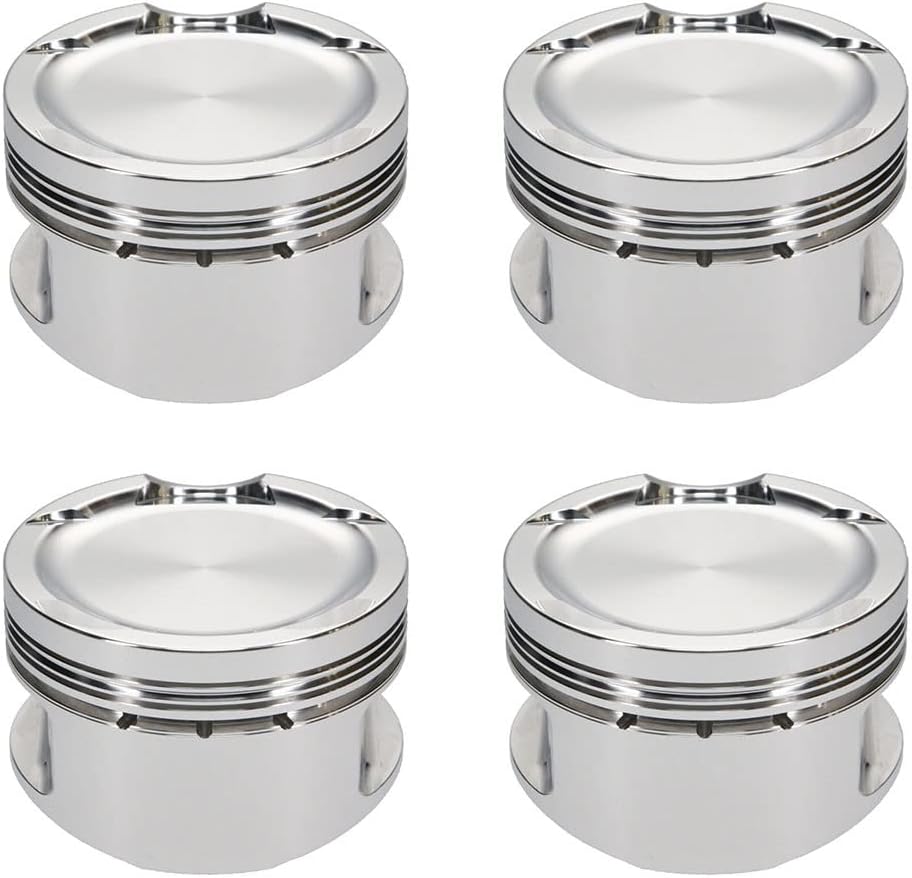

JE Pistons 242928 Piston Set, 2618, Inv Dome/dish, 3.228 Bore, 1.286 Cd, 0.787 Pin, Set Of 4.

JE Pistons
Set of 4 Pistons
Recommended RingSet: JG1004-3228

JE Pistons are specifically engineered for extreme applications up to, and including, professional competition. In this environment, higher compression ratios, extreme boost levels and heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy found in every JE Piston.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included
*JE ProSeal Piston Rings are included with your JE Pistons

JE Pistons are sold as matched sets.

*Custom Applications are also Available

Products specifications

Bore

82mm

Bore (in)

3.228 in.

Bore (mm)

82.000mm

C/D

32.66mm

Comp Ratio

8.5:1

Compression Distance (in)

1.286 in.

Dome CC

-9.3

Gram Weight

310

Head CC

43

Notes

Suitable for turbo or nitrous. Full round skirt design.

Oversized

1mm

Piston Head Volume (cc)

+9.30cc

Piston Material

Forged aluminum

Piston Ring Thickness

1.0mm x 1.2mm x 2.8mm

Piston Style

Dish, with four valve reliefs

Quantity

Sold individually.

Rod

144mm

Skirt Type

Full Round

Stroke

86.4mm

Wrist Pin Style

Press-fit or floating

Forging Type

Round

Piston Head Type

Dish

Oil Ring Thickness

0.111

Bore Diameter

82.00

Make

VOLKSWAGEN

Piston Material

2618

Engine

1.8T 20V 20MM PIN

Piston Pin Length

2.250

Piston Pin Material

5115

Piston Volume

-9.3

Piston Avg Wt

313

Piston Pin Outside Diameter

0.787

Piston Pin Wall Thickness

0.180

Out of Stock Message

Call for Availability

Add-On

787-2250-18-51C

Category Hierarchy

Pistons>Piston Kits

Industry

Automotive

Product Market

Sport Compact

Add-On

787-050-MW

Add-On

JG1001-3228

Ringset Included

Yes

Second Compression Ring Thickness

0.048

Top Compression Ring Thickness

0.04

Compression Height

1.286

Cylinder Head

1.8T APH
