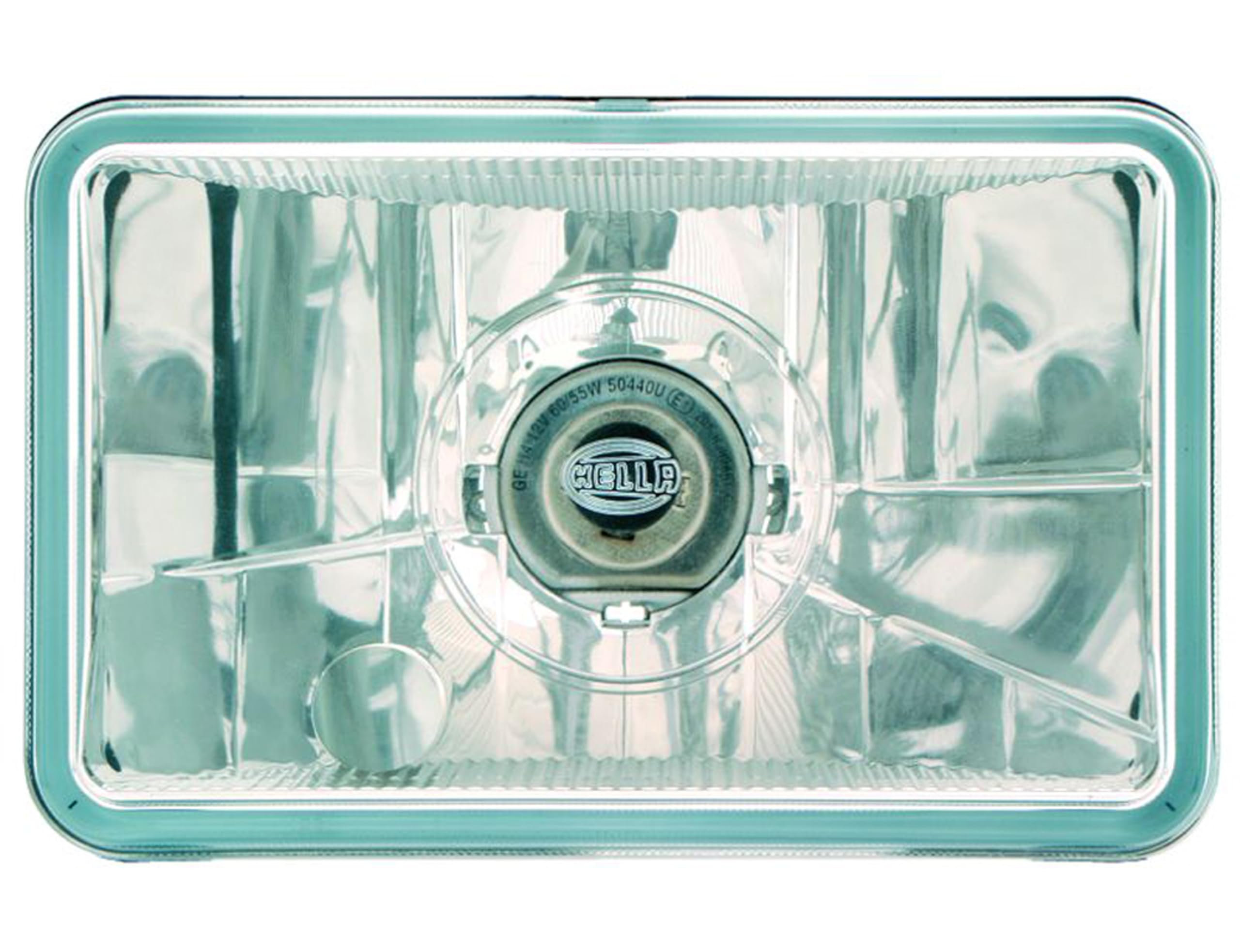

Hella 008888101 Module 164x103mm HB2 Single High/Low Beam Headlamp

Manufacturer

Part Number

008888101
Black Friday Price

$91.02

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 008888101 is a 164 x 103mm rectangular HB2 headlamp module engineered to deliver superior illumination for passenger vehicles, commercial trucks, and over-the-road applications. Designed to meet DOT, SAE, and ECE regulatory standards, this unit is fully US-legal and built to Hella's renowned European optical standards.

At the heart of this headlamp is a High-Boost Free Form reflector that maximizes light output while projecting a razor-sharp low-beam cut-off line — delivering outstanding road illumination while minimizing glare for oncoming drivers. The optically tempered glass lens is free of fluting for a clean, modern appearance and distortion-free light output.

The module uses an H4 (HB2) replaceable bulb, giving you the flexibility to choose from a wide range of 12V bulb upgrades to suit any driving condition. The included 100/80W H4 bulbs and cross-over adapters make installation straightforward. The lamp can also be wired exclusively to the high-beam circuit for high-beam-only applications, and is compatible with 24V bulbs for commercial truck use.

Key Features:

  • DOT, SAE, and ECE approved — fully US-legal headlamp
  • 164 x 103mm rectangular form factor (HB2/H4 module)
  • High-Boost Free Form reflector for maximum light output
  • Optical-quality tempered glass lens with no fluting
  • Razor-sharp low-beam cut-off for reduced oncoming glare
  • Replaceable 100/80W 12V H4 bulbs and cross-over adapters included
  • Compatible with 24V bulbs for commercial/truck applications
  • Can be used as a high-beam-only lamp when wired accordingly
  • Clear lens for crisp, undistorted illumination

The Hella 008888101 is an excellent upgrade or direct replacement headlamp for over-the-road trucks and vehicles originally equipped with 164mm rectangular headlights, combining European optical engineering with compliance for North American roads.

Products specifications

Headlight Shape

Rectangular

Notes

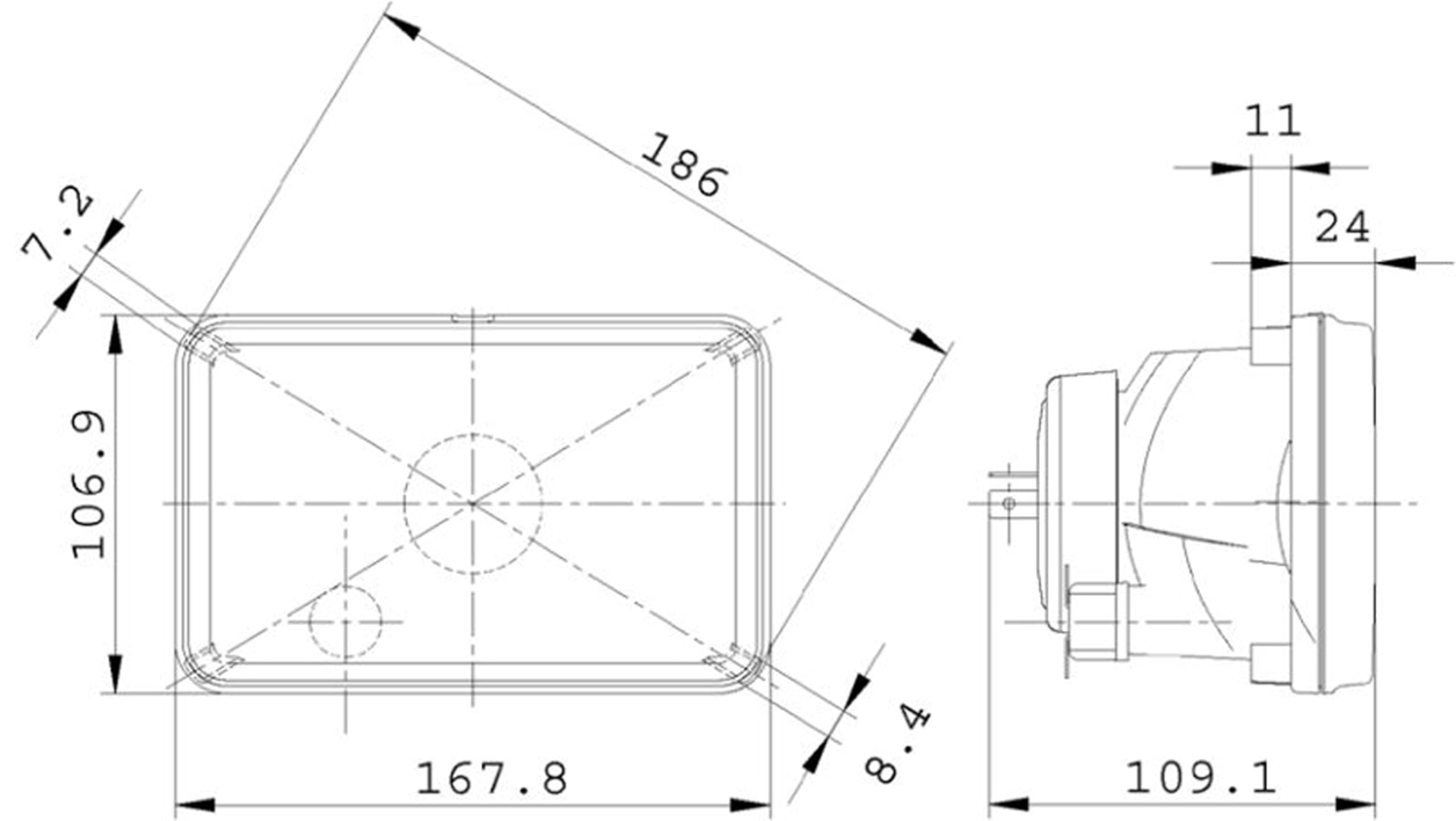

Measures 4 in. x 6.5 in.

Quantity

Sold individually.
