LuK 04-226 RepSet Pro Clutch Kit with Concentric Slave Cylinder

The LuK 04-226 RepSet Pro Clutch Kit is a complete, OE-quality clutch replacement solution designed and engineered to perfectly match the vehicle's unique performance characteristics. As an original-equipment supplier, LuK develops the performance specifications for individual vehicle applications, ensuring this kit delivers the same flawless performance as your factory-installed components.

This kit features an 11.5-inch organic friction disc paired with a diaphragm-style pressure plate and an integrated concentric slave cylinder (CSC) for a self-adjusting, comprehensive clutch replacement. The organic friction material provides smooth, comfortable engagements while offering excellent heat-absorbing capacity and a superior quality friction surface.

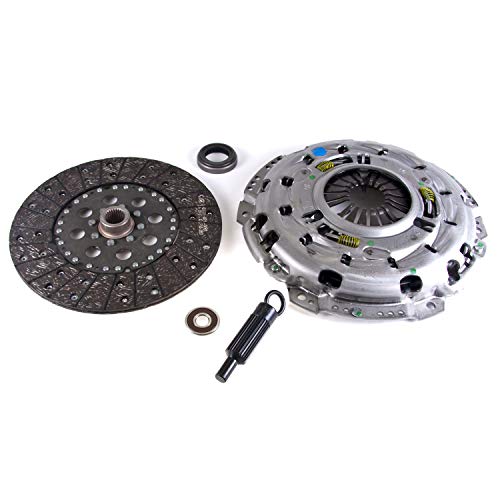

Kit Contents:

• Cover Assembly (Pressure Plate)
• Clutch Disc — 11.5 in. (292.1 mm) diameter, organic friction material
• Release Bearing / Concentric Slave Cylinder (CSC)
• All necessary pilots and accessory pack

Key Specifications:

• Clutch Diameter: 13-9/16"
• Clutch Disc Diameter: 11-1/2" (292.1 mm)
• Input Shaft Diameter: 1-3/16"
• Clutch Disc Spline Quantity: 26
• Pressure Plate Type: Coil Spring
• Disc Material: Organic
• Self-Adjusting: Yes
• Flywheel: Not Included

Features & Benefits:

• 100% functionally tested to meet OEM performance specifications
• Precision-machined from premium-grade cast iron
• Engineered for torque capacity, material hardness, hub spline tolerance, wear capacity, clamp load, pressure plate lift, and torsional vibration dampening
• Perfectly balanced for smooth, vibration-free operation
• Manufactured in Mexico (Country of Origin: MX)

Warranty: 12 months or 12,000 miles, whichever comes first.

Cross-Reference Part Numbers: 04226, 6293007770, 1104226 (NAPA)
