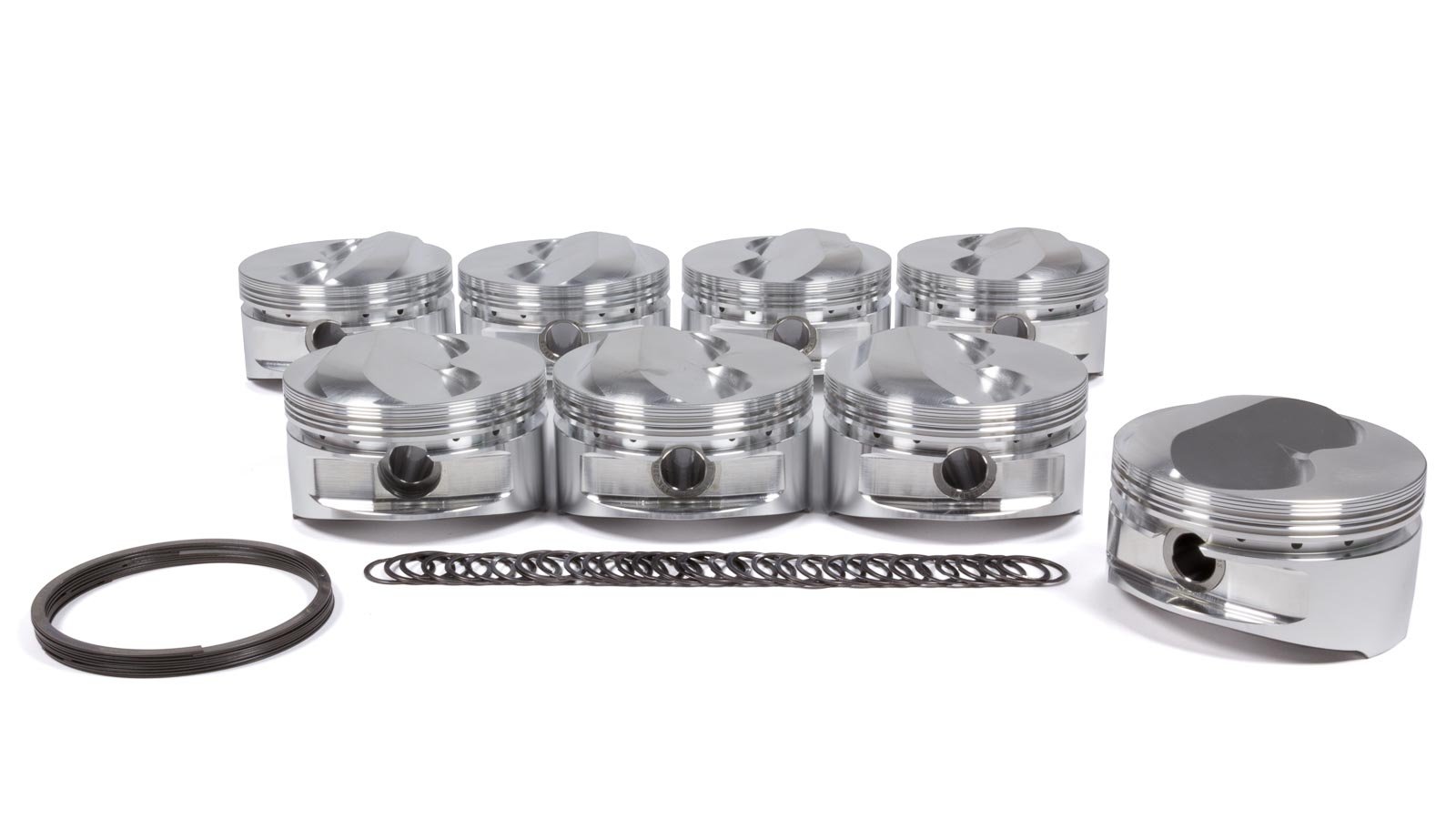

JE Pistons 182006 Piston Set, 2618, Dome, 4.040 Bore, 1.125 Cd, 0.927 Pin, Set Of 8.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons 927-073-MW Wrist Pin Retainer, Wire Lock, 0.927 In. Dia., 0.073 In. Thickness, Each.

Part Number

182006
4 reviews
04/23/2034 10:02 AM
Sale Price

$978.33

Estimated ship date Tuesday, April 23

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

JE Pistons 182006 Piston Set, 2618, Dome, 4.040 Bore, 1.125 Cd, 0.927 Pin, Set Of 8.

JE Pistons
23deg Dome
Oil Rail Support is Included
Set of 8 Pistons
Recommended RingSet: J10008-4040-5

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Block Height

9

Bore (in)

4.040 in.

Bore (mm)

102.616mm

CID

385

Comp Height

1.125

Comp Ratio @ 58CC

14.7:1

Comp Ratio @ 64cc

13.4:1

Comp Ratio @ 76CC

11.4:1

Compression Distance (in)

1.125 in.

Dome Volume

9.5

Gram Weight

424

Notes

Oil rail support included.

Oversize

0.035

Pin Diameter (in)

0.927 in.

Piston Head Volume (cc)

-9.50cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6

Stroke

3.75

Wrist Pin Style

Press-fit or floating

Industry

Automotive

Engine

SMALL BLOCK CHEVROLET

Category Hierarchy

Pistons>Piston Kits

Forging Type

Round

Piston Material

2618

Second Compression Ring Thickness

0.064

Piston Pin Wall Thickness

0.150

Add-On

927-042-CS

Oil Ring Thickness

0.218

Ringset Included

No

Product Market

Domestic

Out of Stock Message

Call for Availability

Bore Diameter

4.040

Cylinder Head

CHEVROLET 23 DEG 20/30

Make

Chevrolet

Piston Pin Outside Diameter

0.927

Piston Pin Length

2.750

Add-On

J10008-4040-5

Compression Height

1.125

Piston Volume

11.2

Piston Avg Wt

429

Piston Pin Material

5115

Add-On

927-2750-15-51S

Top Compression Ring Thickness

0.064

Piston Head Type

Dome
