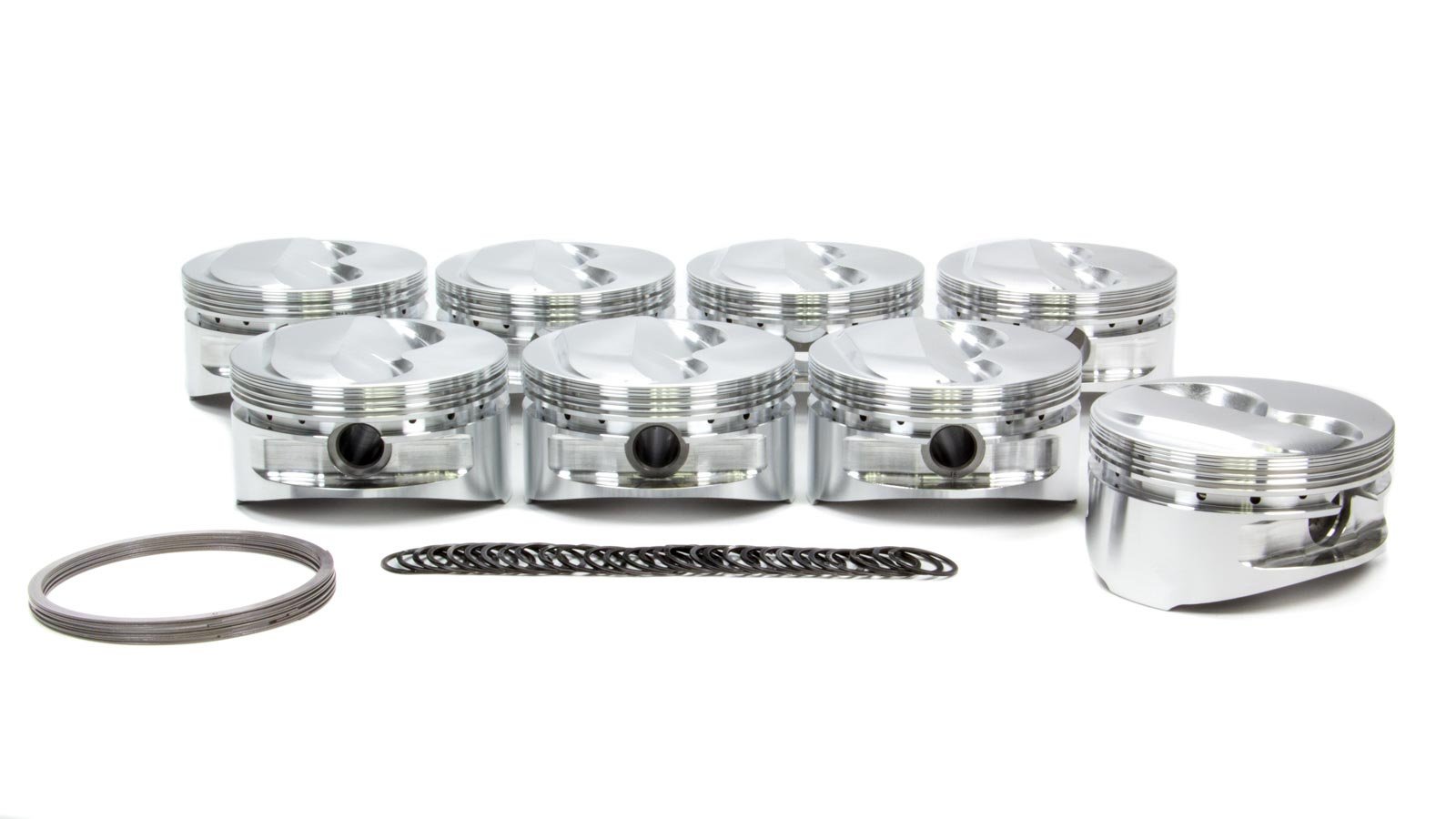

JE Pistons 182035 Piston Set, 2618, Dome, 4.145 Bore, 1.062 Cd, 0.927 Pin, Set Of 8.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons 317761 Piston Set, 2618, Dome, 3.543 Bore, 1.176 CD, 0.866 Pin, Set of 4.

Part Number

182035
5 reviews
04/19/2034 6:49 PM
Sale Price

$978.33

Estimated ship date Friday, April 19

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

JE Pistons 182035 Piston Set, 2618, Dome, 4.145 Bore, 1.062 Cd, 0.927 Pin, Set Of 8.

JE Pistons
23deg Dome
Oil Rail Support is Included
Set of 8 Pistons
Recommended RingSet: J10008-4145-5

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Block Height

9

Bore

4.145

Bore (in)

4.145 in.

Bore (mm)

105.283mm

CID

418

Comp Height

1.06

Comp Ratio @ 58CC

14.3:1

Comp Ratio @ 64cc

13.2:1

Comp Ratio @ 76CC

11.4:1

Compression Distance (in)

1.062 in.

Dome Volume

3

Gram Weight

455

Notes

Oil rail support included.

Oversize

0.015

Pin Diameter (in)

0.927 in.

Piston Head Volume (cc)

-3.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6

Stroke

3.875

Wrist Pin Style

Press-fit or floating

Piston Pin Outside Diameter

0.927

Engine

SMALL BLOCK CHEVROLET

Ringset Included

No

Piston Head Type

Dome

Piston Pin Material

5115

Product Market

Domestic

Piston Avg Wt

455

Add-On

927-2750-15-51S

Compression Height

1.062

Add-On

J10008-4145-5

Top Compression Ring Thickness

0.064

Out of Stock Message

Call for Availability

Piston Volume

5.6

Piston Pin Length

2.750

Piston Pin Wall Thickness

0.150

Bore Diameter

4.145

Make

Chevrolet

Piston Material

2618

Cylinder Head

CHEVROLET 23 DEG 20/30

Add-On

927-042-CS

Oil Ring Thickness

0.218

Category Hierarchy

Pistons>Piston Kits

Forging Type

Round

Industry

Automotive

Second Compression Ring Thickness

0.064
