JE Pistons 182039 Forged Dome Piston Set Bore Alloy - 4.130 2618 8-Piece

(1970-1980 Chevrolet 400 Small Block)

Part of: JE Pistons Forged Dome Piston Set Bore

Other options in this family: JE Pistons 353906 JE Pistons 186235 JE Pistons 359152 JE Pistons 361278 JE Pistons 182027

Manufacturer

Picture for manufacturer JE Pistons

Part Number

182039
8 reviews
Sale Price

$1,076.99

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

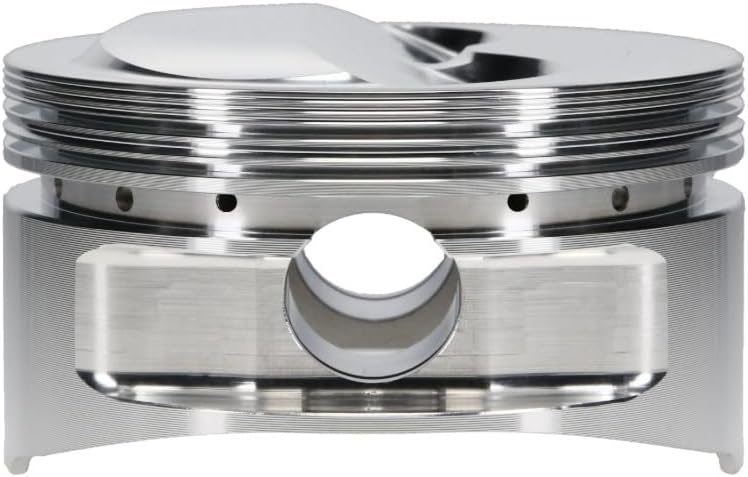

The JE Pistons 182039 is a premium forged piston set engineered from 2618 aluminum alloy for high-performance engine builds. This 8-piston set features a 23-degree dome design with a 4.130-inch bore diameter, 1.062-inch compression distance, and 0.927-inch wrist pin for precise fitment in race and street/strip applications.

Key Features:

  • Application-specific forgings deliver optimized, uniform crown thickness for maximum strength and heat resistance
  • Contact reduction groove minimizes frictional drag for improved efficiency
  • Accumulator groove increases top ring stability and sealing performance
  • CNC-machined side relief with lower support band provides additional skirt strength and stability
  • Honed pin bores ensure precise wrist pin fit and reduced friction
  • Double pressure-fed pin oilers enhance lubrication for extended durability
  • Wire locks included for secure wrist pin retention
  • Oil rail support included for proper ring support and sealing

JE Pistons are precision-matched and sold as complete sets to ensure balanced rotating assembly. Recommended ring set: J10008-4130-5. Backed by over 60 years of racing piston innovation and proven performance in Chevy, Ford, Mopar, and Buick engine builds.

Products specifications

Fits

1970-1980 Chevrolet 400 Small Block

Block Height

9

Bore

4.125

Bore (in)

4.130 in.

Bore (mm)

104.902mm

CID

417

Comp Height

1.06

Comp Ratio @ 58CC

15.3:1

Comp Ratio @ 64cc

14:1

Comp Ratio @ 76CC

12:1

Compression Distance (in)

1.062 in.

Dome Volume

8

Gram Weight

436

Notes

Oil rail support included.

Oversize

0.005

Pin Diameter (in)

0.927 in.

Piston Head Volume (cc)

-8.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6

Stroke

3.875

Wrist Pin Style

Press-fit or floating

Compression Height

1.062

Forging Type

Round

Engine

SMALL BLOCK CHEVROLET

Second Compression Ring Thickness

0.064

Category Hierarchy

Pistons>Piston Kits

Make

Chevrolet

Out of Stock Message

Call for Availability

Piston Pin Wall Thickness

0.150

Piston Avg Wt

440

Piston Material

2618

Piston Pin Material

5115

Ringset Included

No

Add-On

927-042-CS

Piston Head Type

Dome

Piston Pin Outside Diameter

0.927

Industry

Automotive

Product Market

Domestic

Cylinder Head

CHEVROLET 23 DEG 20/30

Add-On

J10008-4130-5

Piston Volume

10.8

Add-On

927-2750-15-51S

Bore Diameter

4.130

Piston Pin Length

2.750

Oil Ring Thickness

0.218

Top Compression Ring Thickness

0.064

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Wrist Pin Outer Diameter

0.927

Piston Quantity

8
