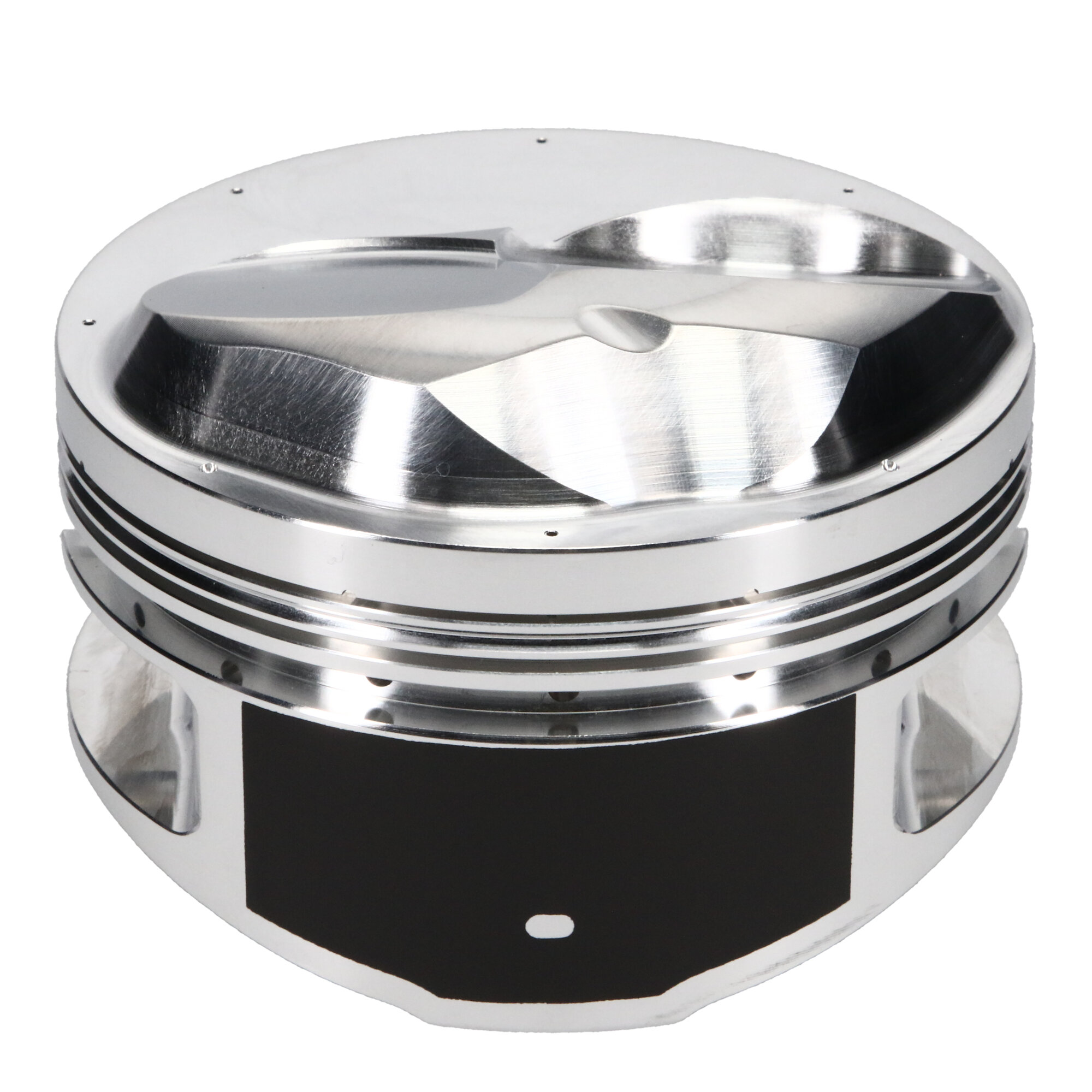

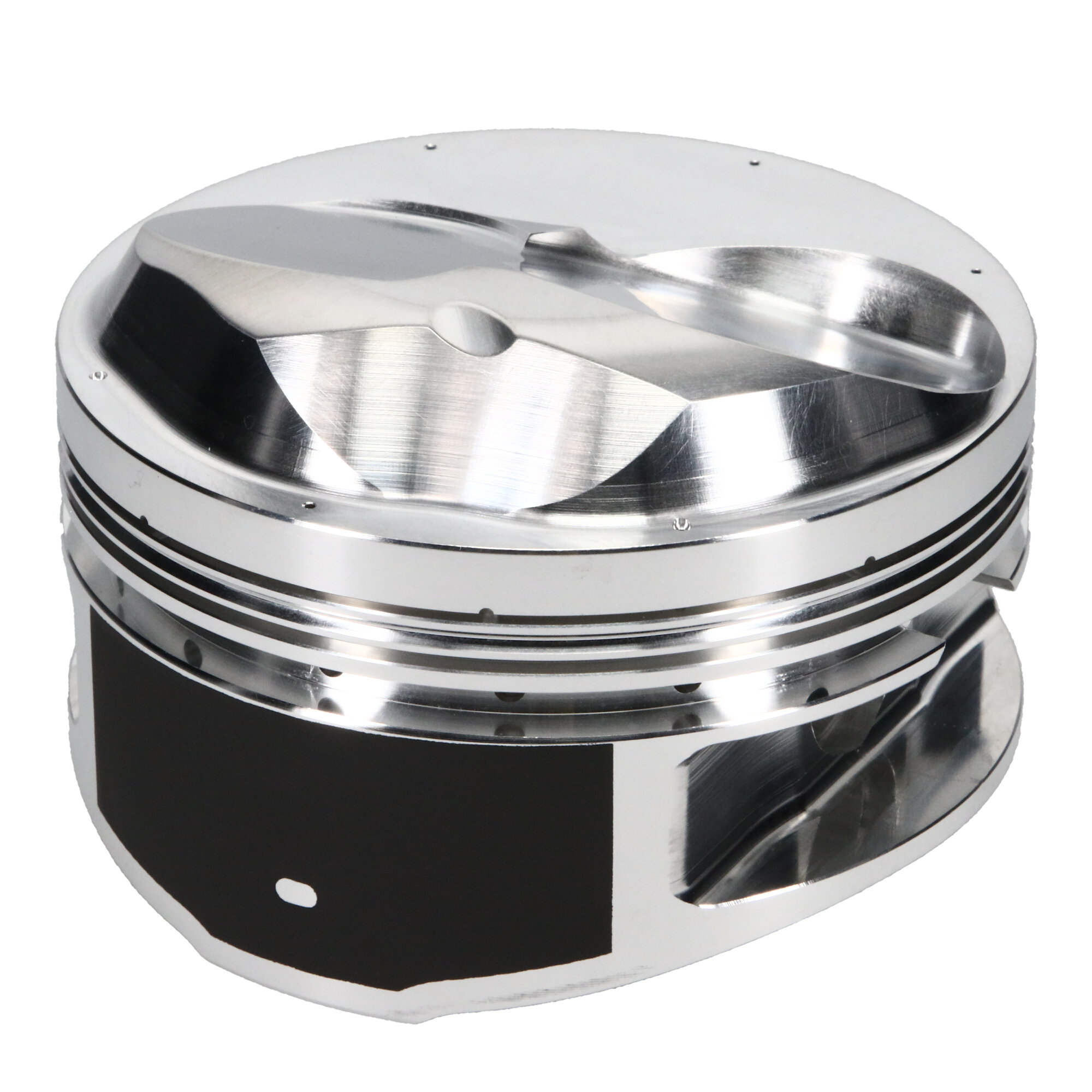

JE Pistons 258201 Piston Set, 2618, Dome, 4.600 Bore, 1.290 Cd, 0.990 Pin, Set Of 8.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons 4030-183 Oil Rail Support, 4.030 In. Min Bore, 4.059 In. Max Bore, 0.183in. Radial Depth

Part Number

258201
17 reviews
04/24/2034 3:09 AM
Sale Price

$1,155.64

Estimated ship date Wednesday, April 24

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

JE Pistons 258201 Piston Set, 2618, Dome, 4.600 Bore, 1.290 Cd, 0.990 Pin, Set Of 8.

JE Pistons
Gas Ported
For Decked Block
For Nitrous Aps
Oil Rail Support is Included
Set of 8 Pistons
Recommended RingSet: J860L8-4600-5

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Block Height

9.8

Bore

4.6

Bore (in)

4.600 in.

Bore (mm)

116.840mm

CID

565

Comp Height

1.285

Comp Ratio @ 110cc

16:1

Comp Ratio @ 118cc

14.6:1

Comp Ratio @ 124cc

13.7:1

Compression Distance (in)

1.290 in.

Dome Volume

44

Gram Weight

708

Notes

Oil rail support included.

Pin Diameter (in)

0.990 in.

Piston Head Volume (cc)

-44.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

0.043 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6.385

Stroke

4.25

Wrist Pin Style

Press-fit or floating

Compression Height

1.290

Top Compression Ring Thickness

0.0435

Piston Avg Wt

710

Make

Chevrolet

Piston Pin Length

2.930

Add-On

990-042-CS

Piston Pin Outside Diameter

0.990

Engine

BIG BLOCK CHEVY

Forging Type

Round

Bore Diameter

4.600

Piston Pin Wall Thickness

0.180

Cylinder Head

OPEN CHAMBER

Second Compression Ring Thickness

0.064

Piston Pin Material

5115

Piston Material

2618

Ringset Included

No

Piston Head Type

Dome

Oil Ring Thickness

0.218

Product Market

Domestic

Industry

Automotive

Category Hierarchy

Pistons>Piston Kits

Out of Stock Message

Call for Availability

Piston Volume

44

Add-On

JG86L8-4600-5

Add-On

990-2930-18-51S
