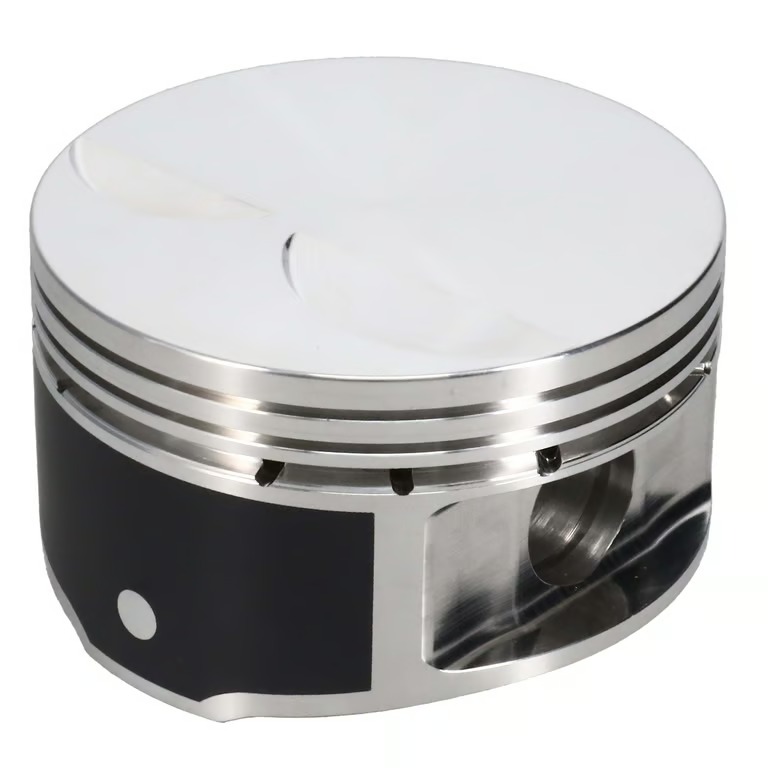

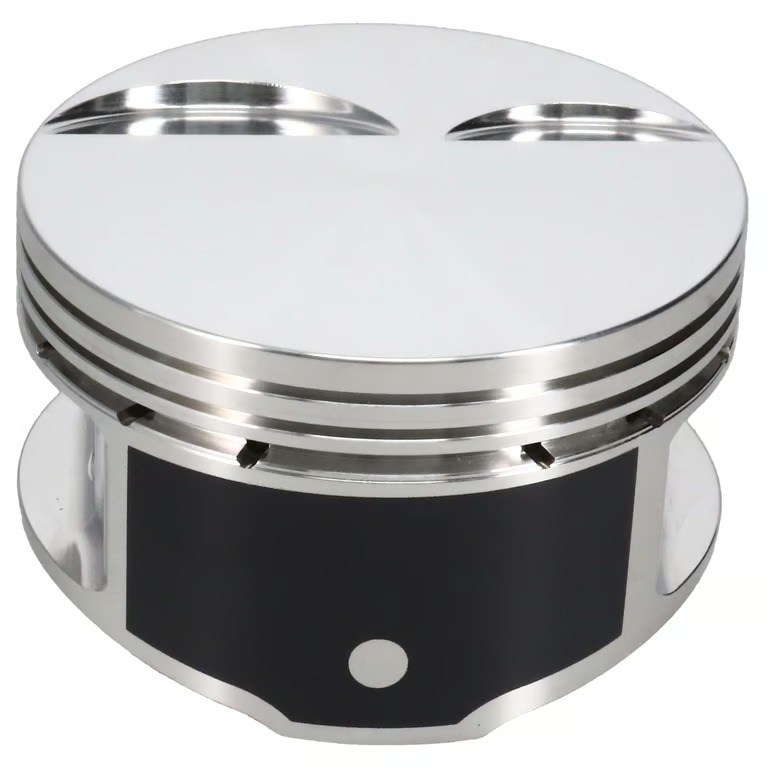

JE Pistons 194884 Piston Set, 2618, Flat Top, 3.905 Bore, 1.340 Cd, 0.945 Pin, Set Of 8.

(1998-2002 Chevrolet Camaro; 1997-2004 Chevrolet Corvette; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird)

Manufacturer

Picture for manufacturer JE Pistons

Part Number

194884
18 reviews
Sale Price

$989.99

Estimated ship date Wednesday, November 11

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details
JE Pistons
15deg Flat Top
.945 Pin Diameter
Set of 8 Pistons
Recommended RingSet: J68008-3900-3

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Fits

1998-2002 Chevrolet Camaro; 1997-2004 Chevrolet Corvette; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird

Block Height

0.01

Bore

3.905

Bore (in)

3.905 in.

Bore (mm)

99.187mm

CID

347

Comp Height

1.335

Comp Ratio @ 64cc

10.6:1

Comp Ratio @ 66cc

10.3:1

Comp Ratio @ 72cc

9.6:1

Compression Distance (in)

1.340 in.

Dome Volume

-2

Gram Weight

430

Oversize

0.005

Pin Diameter (in)

0.945 in.

Piston Head Volume (cc)

+2.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1.5mm x 1.5mm x 3.0mm

Piston Style

Flat top, with two valve reliefs

Quantity

Sold individually.

Rod

6.098

Stroke

3.622

Wrist Pin Style

Press-fit or floating

Add-On

945-2500-14-51S

Piston Avg Wt

450

Out of Stock Message

Call for Availability

Second Compression Ring Thickness

0.06

Engine

CHEVROLET LS

Industry

Automotive

Ringset Included

No

Add-On

J68008-3900-3

Piston Pin Material

5115

Oil Ring Thickness

0.119

Bore Diameter

3.905

Add-On

927-042-CS

Piston Pin Length

2.500

Cylinder Head

LSX/L92 12 DEG

Compression Height

1.340

Piston Material

2618

Forging Type

Round

Make

Chevrolet

Top Compression Ring Thickness

0.06

Piston Pin Outside Diameter

0.945

Piston Head Type

Flat

Piston Pin Wall Thickness

0.140

Product Market

Domestic

Category Hierarchy

Pistons>Piston Kits

Piston Volume

-2

Piston Quantity

8

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Engine

LS
