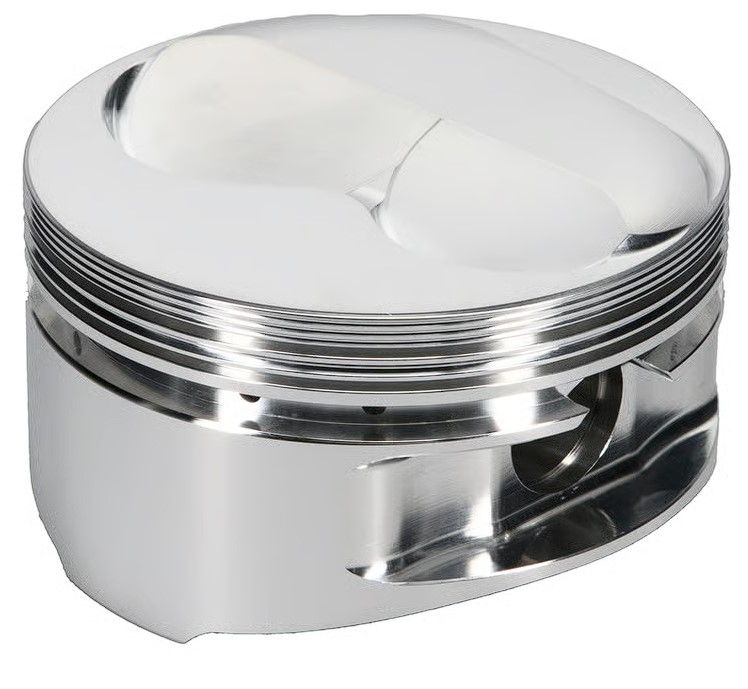

JE Pistons 182030 Piston Set, 2618, Dome, 4.145 Bore, 1.000 Cd, 0.927 Pin, Set Of 8.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons 173618 Piston Set, 2618, Flat Top, 4.040 Bore, 1.550 Cd, 0.927 Pin, Set Of 8.

Part Number

182030
6 reviews
04/26/2034 4:29 PM
Sale Price

$978.33

Estimated ship date Friday, April 26

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

JE Pistons 182030 Piston Set, 2618, Dome, 4.145 Bore, 1.000 Cd, 0.927 Pin, Set Of 8.

JE Pistons
23deg Dome
Oil Rail Support is Included
Set of 8 Pistons
Recommended RingSet: J10008-4145-5

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Block Height

9

Bore

4.145

Bore (in)

4.145 in.

Bore (mm)

105.283mm

CID

432

Comp Height

1

Comp Ratio @ 58CC

15.9:1

Comp Ratio @ 64cc

14.5:1

Comp Ratio @ 76CC

12.4:1

Compression Distance (in)

1.000 in.

Dome Volume

8

Gram Weight

432

Notes

Oil rail support included.

Oversize

0.015

Pin Diameter (in)

0.927 in.

Piston Head Volume (cc)

-8.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6

Stroke

4

Wrist Pin Style

Press-fit or floating

Piston Pin Outside Diameter

0.927

Piston Material

2618

Add-On

J10008-4145-5

Piston Volume

10.8

Cylinder Head

CHEVROLET 23 DEG 20/30

Engine

SMALL BLOCK CHEVROLET

Category Hierarchy

Pistons>Piston Kits

Piston Pin Wall Thickness

0.150

Industry

Automotive

Top Compression Ring Thickness

0.064

Compression Height

1.000

Product Market

Domestic

Add-On

927-042-CS

Ringset Included

No

Out of Stock Message

Call for Availability

Piston Pin Length

2.750

Piston Pin Material

5115

Make

Chevrolet

Add-On

927-2750-15-51S

Forging Type

Round

Bore Diameter

4.145

Oil Ring Thickness

0.218

Second Compression Ring Thickness

0.064

Piston Head Type

Dome

Piston Avg Wt

432
