JE Pistons 258218 Piston Set, 2618, Dome, 4.530 Bore, 1.120 Cd, 0.990 Pin, Set Of 8.

Manufacturer

JE Pistons

Picture for manufacturer JE Pistons XC7500 Piston Ring Set, 1 Cyl., File Fit, Each.

Part Number

258218
9 reviews
04/26/2034 2:44 PM
Sale Price

$998.61

Estimated ship date Friday, April 26

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

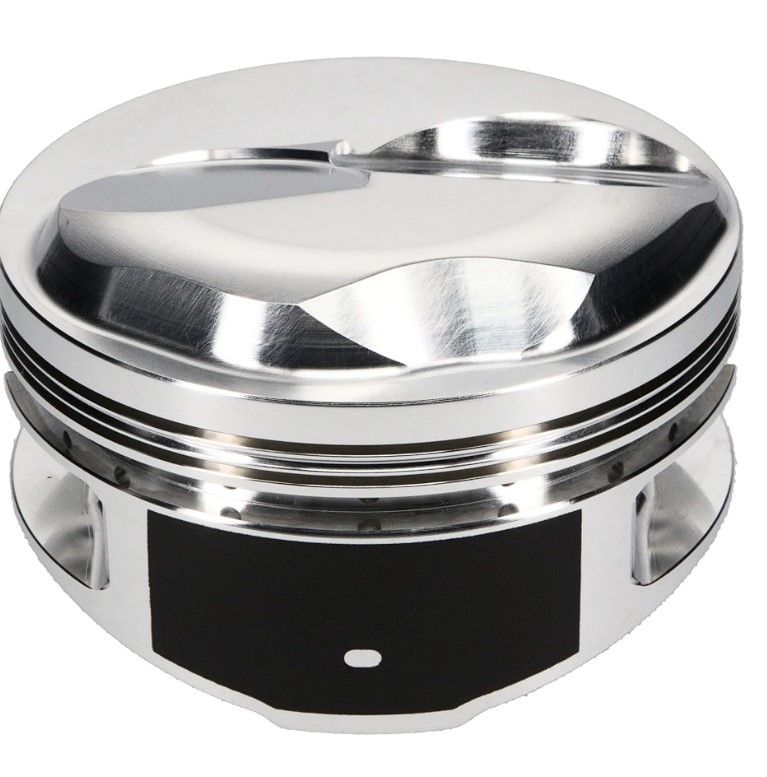

JE Pistons 258218 Piston Set, 2618, Dome, 4.530 Bore, 1.120 Cd, 0.990 Pin, Set Of 8.

THIS PRODUCT CONSISTS OF 8 PIECES.

JE Pistons
Dome
Open Chamber
Oil Rail Support is Included
Set of 8 Pistons
Recommended RingSet: J10008-4530-5

For over 60 years, JE Pistons has been the industry leader in forged racing pistons for Chevy, Ford, Mopar and Buick engines.

*Application Specific Forgings for an Optimized, Uniform Crown Thickness
*Contact Reduction Groove to Minimize Frictional Drag
*Accumulator Groove for Increased Top Ring Stability and Sealing
*CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength
*Honed Pin Bores, Double Pressure Fed Pin Oilers and Wire Locks Included

JE Pistons are sold as matched sets.

Products specifications

Block Height

9.78

Bore (in)

4.530 in.

Bore (mm)

115.062mm

CID

548

Comp Height

1.115

Comp Ratio @ 110cc

14.9:1

Comp Ratio @ 118cc

13.7:1

Comp Ratio @ 124cc

12.9:1

Compression Distance (in)

1.120 in.

Dome Volume

40

Gram Weight

595

Notes

Oil rail support included.

Pin Diameter (in)

0.990 in.

Piston Head Volume (cc)

-40.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6.535

Stroke

4.25

Wrist Pin Style

Press-fit or floating

Second Compression Ring Thickness

0.064

Piston Avg Wt

595

Add-On

J10008-4530-5

Out of Stock Message

Call for Availability

Oil Ring Thickness

0.218

Piston Pin Outside Diameter

0.990

Ringset Included

No

Piston Volume

40

Piston Pin Length

2.930

Piston Pin Wall Thickness

0.150

Compression Height

1.120

Make

Chevrolet

Top Compression Ring Thickness

0.064

Add-On

990-2930-15-51S

Piston Material

2618

Product Market

Domestic

Industry

Automotive

Piston Head Type

Dome

Forging Type

Round

Cylinder Head

OPEN CHAMBER

Category Hierarchy

Pistons>Piston Kits

Add-On

990-042-CS

Bore Diameter

4.530

Piston Pin Material

5115

Engine

BIG BLOCK CHEVY
