Skunk2 306-05-1190 Alpha Series Connecting Rods

Manufacturer

Part Number

306-05-1190
08/12/2032 9:15 PM
Sale Price

$392.26

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

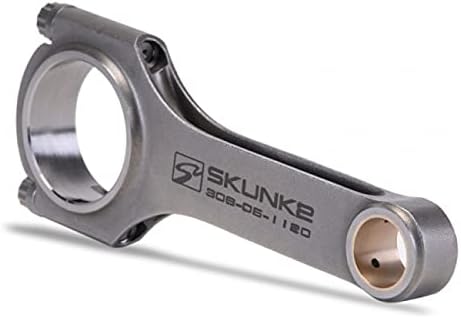

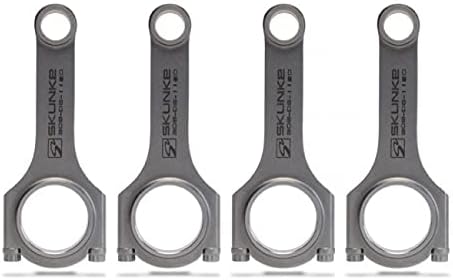

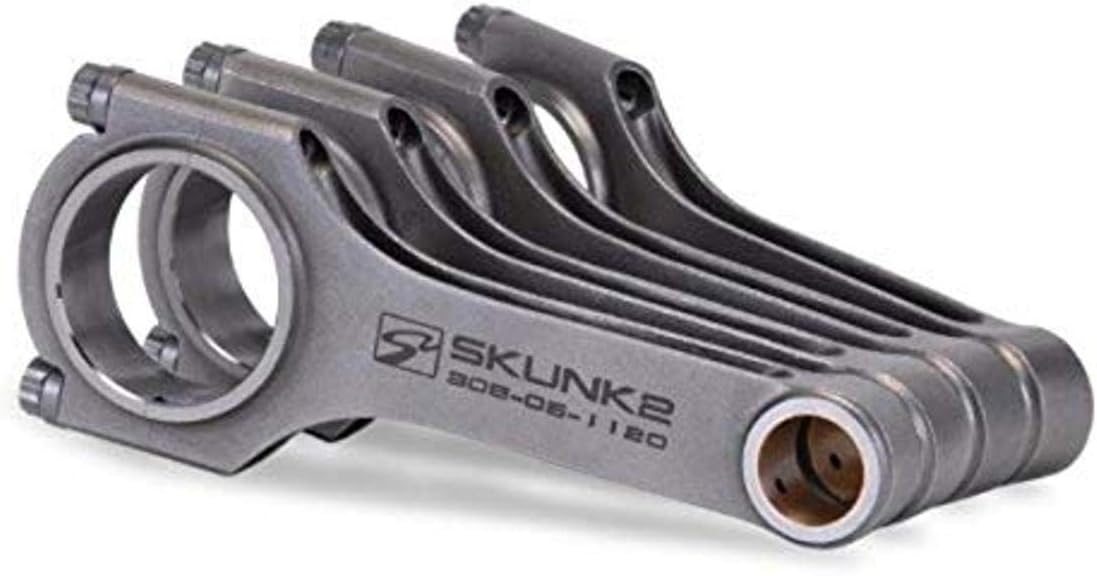

Skunk2 306-05-1190 Alpha Series Connecting Rods

Skunk2 Alpha Series Connecting Rods

Alpha Series Connecting Rods
Long Rods
Set of 4

Skunk2 is proud to introduce its all-new Alpha Series Connecting Rods, available for most popular Honda and Acura applications.

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2s rigid specifications.

Skunk2s engineers spent nearly three years developing and testing its straight H-beam rod design. The results are one of the strongest beam configurations available, capable of handling more than 900 hp. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2s straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary.

Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. By orienting the metals grain in the direction of stress along the rod cap, perpendicular to the stress exerted along the beam, strength is significantly increased. Skunk2s two-piece forgings provide a precision-tight fit between the rods cap and its beam without resorting to the brittle materials required by other processes.

Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2s carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle.

Connecting rod bolts endure more stress than any other engine fastener. Each Alpha Series Rod features high-quality, Skunk2-branded, 3/8-inch ARP2000 bolts. ARP2000 rod bolts are forged, heat-treated, precision-machined, and capable of clamping loads as high as 220,000 psi. Precision-machined, bronze wrist pin bushings are also fitted to each Alpha Series Rod for increased wear resistance, and are compatible with most aftermarket pistons without additional machining.

Not all forged H-beam rods are the same. Only Skunk2s Alpha Series Rods feature our unique design, precision machining, and are capable of handling more than 900 hp, all at an economical price.

FEATURES:

  • Precision Machined
  • 3/8-Inch ARP2000/Skunk2 Bolts
  • Shot-Peened For Reduced Fatigue
  • Bronze Wrist Pin Bushings
  • Laser-Etched Skunk2 Logo For Authenticity
  • Fatter, H-Beam Design Without Drastic Weight Increase
  • Pin End Compatible With Most Pistons Without Machining
  • Dual-Pin Oil Passages For Increased Lubrication And Strength
  • 900+ HP Capable
  • Balanced +/- 1 Gram
  • Magna-flux Inspected
  • Heat-Treated
  • FEA Analyzed
