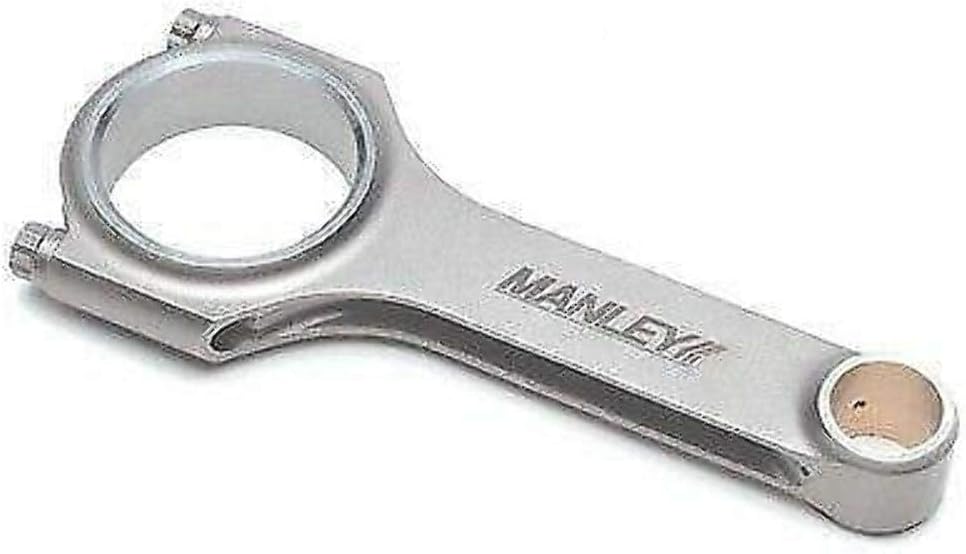

Manley 14011-4 H-Beam Connecting Rod Set 4340 Forged Steel

(1990-2005 Mazda Miata)

Manufacturer

Part Number

14011-4
Black Friday Price

$554.27

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details
H Beam Rods
Set of 4

Manley Performance manufactures the finest steel connecting rods in the Sport Compact industry. Our Pro Series I Beam is forged from 4340 aircraft quality vacuum degassed material. We utilize our proven Turbo Tuff design and add 3/8 ARP 2000 cap screws. All rods are properly shot peened after machining and 100% magnafluxed.

I Beam Turbo Tuff
Manley Pro Series Turbo Tuff connecting rods are used by the best tuners in and outside of the United States in some of the fastest, high horsepower, heart stopping engines being produced.

H Beam Economical
For the budget conscious enthusiast, we also offer our very high quality, yet economical, H-Beam design connecting rods. These are also manufactured from 4340 alloy forgings. They are fully machined, heat treated, stress relieved, shot peened, and magnafluxed. They also are built standard with 3/8 ARP 2000 bolts.

All Manley connecting rod sets, are weight matched to 1.5 grams, big and small end bores are final honed to a tolerance of .0002, critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none.

Products specifications

Fits

1990-2005 Mazda Miata

Big End Bore

1.890"

Big End Width

.860"

Center-to-Center

5.233"

Pin Bore

.7881"

Pin Diameter

.787" (20mm )

Weight

TBA

Make

Mazda

Connecting Rod Type

H-Beam

Engine Type

ICE

Length

Stock

Connecting Rod Material

4340

Product Type

Engine Connecting Rod Set

Connecting Rod Series

H-Beam

Rod Bolt Material

ARP 2000

Connecting Rod Journal Diameter

Stock

Journal Size

Stock

Rod Quantity

4

Average Gram Weight

535

Center To Center Length

5.233

Pin End Bore

0.7881

Wrist Pin Diameter

0.787
