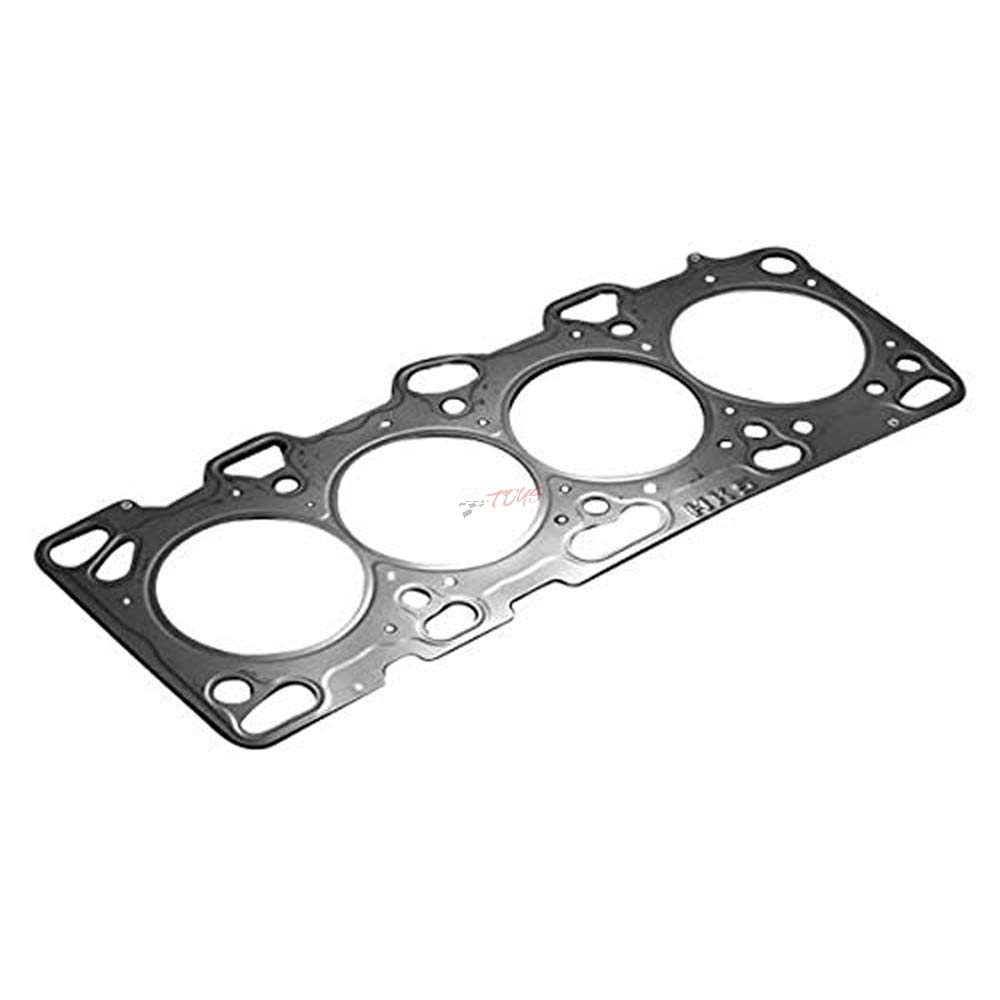

HKS 2301-RT045 Multi-Layer Steel Head Gasket 1.6mm 3S-GTE

(1988-1993 Toyota Celica; 1991-1995 Toyota MR2 Spyder; 1991-1995 Toyota MR2)

Manufacturer

Part Number

2301-RT045
Sale Price

$350.00

Estimated ship date Sunday, December 20

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The HKS 2301-RT045 is a high-performance multi-layer steel (MLS) head gasket engineered for the Toyota 3S-GTE engine, featuring a 1.6mm thickness designed to support high-horsepower and high-boost performance builds. Built to withstand extreme heat and cylinder pressure, this gasket delivers the reliable head-to-block sealing that demanding forced induction applications require.

HKS metal head gaskets are constructed from multiple layers of corrosion- and heat-resistant steel, then coated with a specialized fluorine rubber compound to ensure an exceptional seal under severe operating conditions. The gasket is designed to accommodate standard bore diameters as well as certain oversized cylinder bores, making it compatible with both stock and built engine configurations.

Multiple gasket thicknesses are available across the HKS head gasket lineup for most applications, allowing tuners to adjust the dynamic compression ratio to match specific power levels and engine builds. Note: Compression ratios listed are for comparison purposes only — actual ratio achieved may vary depending on application. HKS head gaskets are not intended to correct sealing issues caused by head or block surface irregularities.

HKS Head Gasket Construction Types:

  • Stopper-Type: Maximum number of steel layers combined with a molded stopper ring around each combustion chamber opening for the highest level of sealing integrity
  • Bead-Type: Features a precision-formed raised bead structure surrounding each combustion chamber to ensure a consistent, reliable seal
  • Grommet-Type: Utilizes a metal grommet around each combustion chamber to create an excellent seal between the cylinder head and engine block

Engineered and manufactured by HKS — one of the most recognized names in Japanese performance tuning since 1973 — this head gasket is the ideal choice for 3S-GTE builds targeting elevated boost levels, high compression, or extended high-performance use.

Products specifications

Fits

1988-1993 Toyota Celica; 1991-1995 Toyota MR2 Spyder; 1991-1995 Toyota MR2

Bore

88mm

Comp Ratio

8.2:1

Gasket Type

Stopper

Thickness

1.6mm
