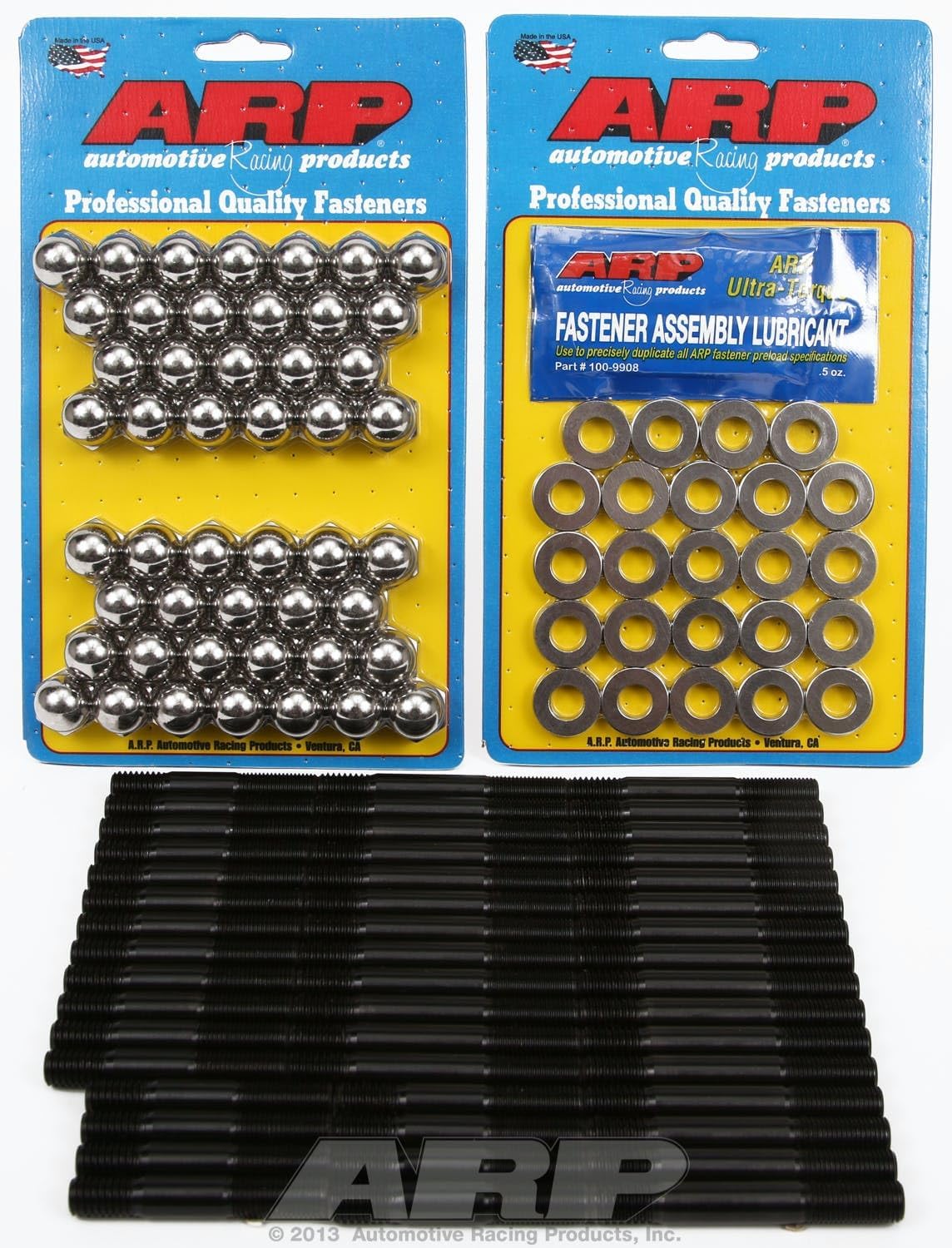

ARP 154-4102 Head Stud Kit Chrome Moly Steel - 8740

The ARP 154-4102 Head Stud Kit delivers professional-grade engine fastening performance using premium 8740 chrome moly steel construction. Engineered for high-performance and racing applications, these studs are precision-manufactured to provide superior clamping force and reliability under extreme conditions.

Advanced Manufacturing Process:

• Heat-treated to 200,000 psi using vertical rack positioning for complete heat penetration
• Centerless ground for near-perfect concentricity and straightness
• Thread rolled after heat-treat for 10x better fatigue strength than pre-heat-treat threading
• Specially undercut shorter studs equalize stretch for consistent clamping force
• Precision tolerances ensure cylinder heads and gaskets align perfectly during installation

Key Benefits:

• Superior strength compared to standard head bolts - rated at 200,000 psi
• More accurate and consistent torque loading than bolts
• Studs stretch only on vertical axis during torquing, eliminating rotational stress
• Easier engine assembly with assured proper head and gasket alignment
• Helps prevent blown head gaskets through optimized clamping force
• Includes hardened parallel-ground washers for even load distribution

Installation Advantages:

Unlike head bolts which twist during installation and react to two simultaneous forces, studs install finger-tight in a relaxed mode and stretch purely along the vertical axis when torqued. This provides more predictable and consistent clamping force. The undercut design on shorter studs compensates for head gasket compression, helping maintain optimal engine sealing. Each stud is marked with the ARP stamp as assurance of quality.

Note: Studs require cylinder head removal with engine out of vehicle or adequate clearance. Re-torque after initial engine operation to compensate for gasket compression.
