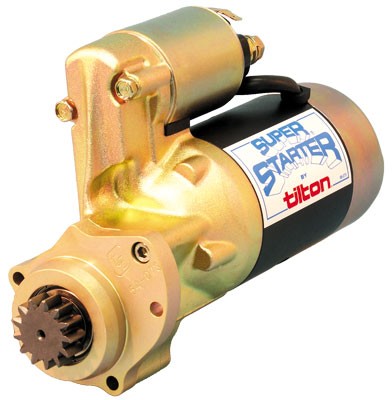

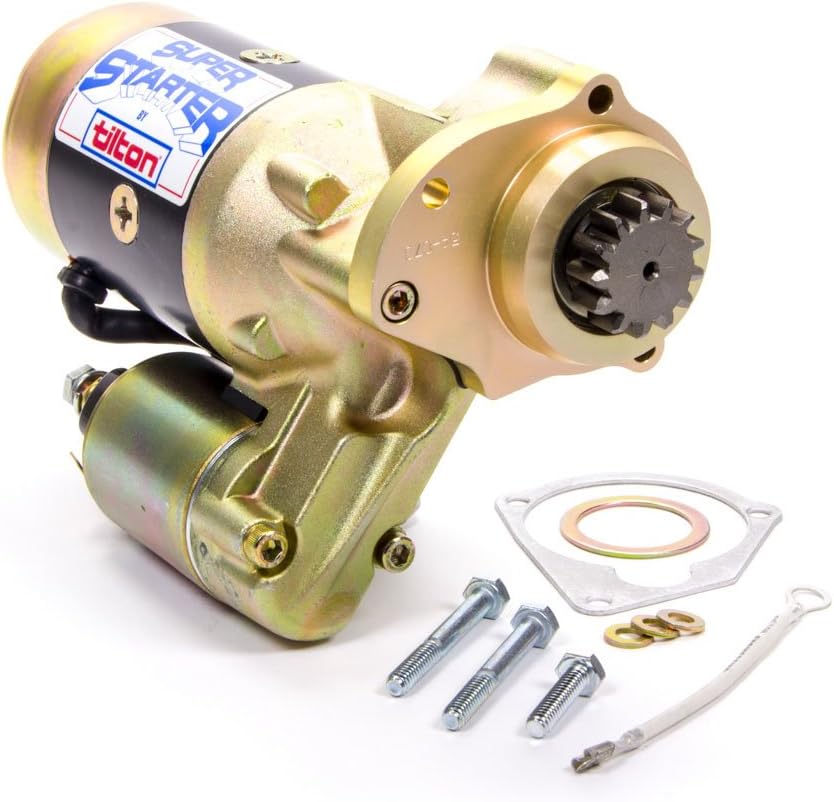

Tilton Engineering 54-41062 Severe Duty Super Starter High Torque

The Tilton Engineering Severe Duty Super Starter is a high-performance starting solution designed for demanding high-compression racing applications. Engineered for 450 cubic inch and larger engines, this compact powerhouse delivers exceptional cranking performance where standard starters fall short.

Superior Performance in a Compact Package:

Featuring a 3.75:1 gear reduction ratio, this Super Starter generates 50% more torque than OE starters while measuring less than 2/3 the size of factory units. The reduced footprint provides critical clearance for headers, oil pans, and frame components in tight engine bay configurations. At approximately 12 pounds total weight, the starter produces 3 horsepower (2.2kW) of cranking power with a remarkably low 250 amp current draw, ensuring maximum available spark energy during engine start.

Key Features:

• 3.75:1 gear reduction for 50% more torque than OE starters
• 3 HP (2.2kW) output with 250 amp current draw
• Full ball bearing construction for extreme temperature reliability
• Compact design—less than 2/3 the size of OE starters
• Approximately 12 lbs total weight
• 43% more cranking power than standard Super Starters
• Recommended for V8 engines with compression ratios over 11:1
• Ideal for small diameter flywheel applications
• UTGC rear mount bellhousing configuration
• Compatible with 102-tooth flywheels

The full ball bearing construction ensures consistent performance in both hot and cold weather conditions, making this starter ideal for racing applications where reliability is paramount. This Severe Duty model is approximately 1 inch longer and 1 pound heavier than standard Tilton Super Starters, delivering enhanced cranking power for the most challenging high-compression engine combinations.
