American Autowire 510303 Classic Update Complete Wiring Harness Kit 1953-56 Ford Truck

(1954-1956 Ford F100 Pickup)

Manufacturer

Part Number

510303
Black Friday Price

$993.70

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

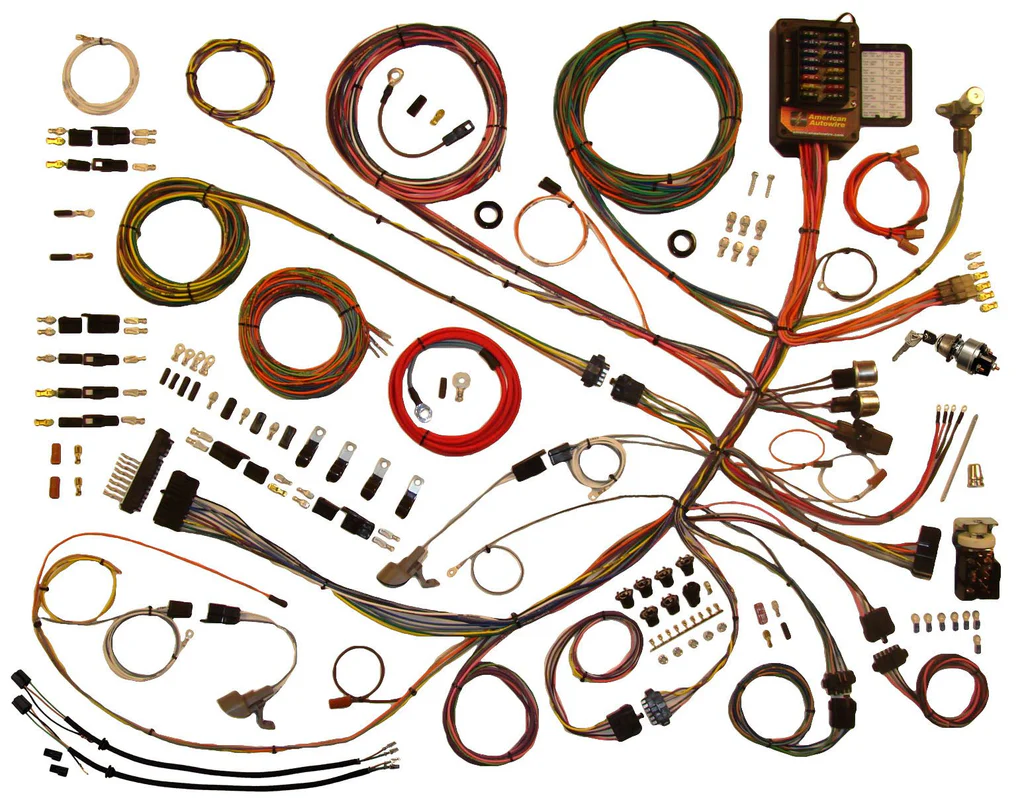

The American Autowire 510303 Classic Update Kit is a comprehensive wiring solution designed specifically for 1953-1956 Ford F-Series trucks. This complete harness provides everything needed to rewire your classic Ford truck from headlight to tail light, with modern features and upgraded components that accommodate popular resto-mod additions like electronic fuel injection, aftermarket gauges, and air conditioning systems.

Complete Kit Includes:

  • Updated ATC/ATO-style fuse panel with fully enclosed box assembly, labeled fuse cover identifying all circuits by description and fuse ratings, and mounting hardware
  • Modern GXL wire throughout with wire functions clearly labeled every 3 to 5 inches
  • Pre-built dash harness with exclusive gauge cluster disconnect system for easy service and assembly
  • Replacement headlight switch with internal 30 amp circuit breaker, adjustable length shaft, and custom knob
  • Standard turn signal flasher, hazard flasher, and horn relay pre-mounted on harness
  • Engine and front light harness with extra-long leads for custom routing and updated engine/transmission combinations
  • Rear body harness assembly that plugs into main harness at left kick panel with longer leads for stock or custom wire routing
  • Six-way power accessory plug for convenient aftermarket accessory connections
  • Original switch connector bodies and terminals (American Autowire exclusive feature)
  • Steering column connectors compatible with most aftermarket columns or stock 1953-56 Ford columns using included adapter and terminals
  • Separate under-dash courtesy lamp assemblies and door jamb switches for original dome/interior lighting
  • Heavy gauge alternator feed and fusible link for high output alternators

Advanced Features:

  • Accommodates all F-Series body applications including panel trucks
  • Instrument cluster wiring connects to stock clusters using original terminals and connectors, or works with popular aftermarket gauges from Autometer, Classic Instruments, Stewart Warner, VDO, and others
  • Spring steel reinforced terminals on all high amperage output circuits
  • Harness is professionally laid out, properly protected and sheathed, with optimized branch lengths for clean installations
  • Designed to accommodate modern essentials like Dakota Digital gauges, Vintage Air systems, and electronic fuel injection

This Classic Update kit delivers more circuits than original chassis harnesses, making it ideal for resto-mod projects that require modern electrical capacity while maintaining compatibility with classic Ford truck architecture.

Products specifications

Fits

1954-1956 Ford F100 Pickup
