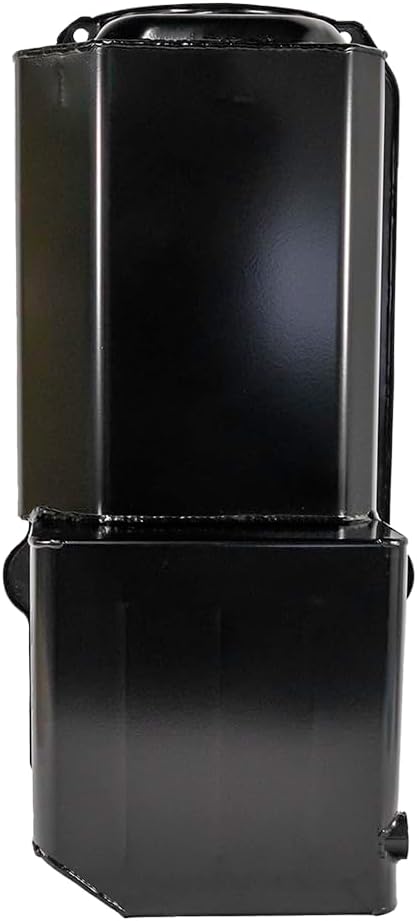

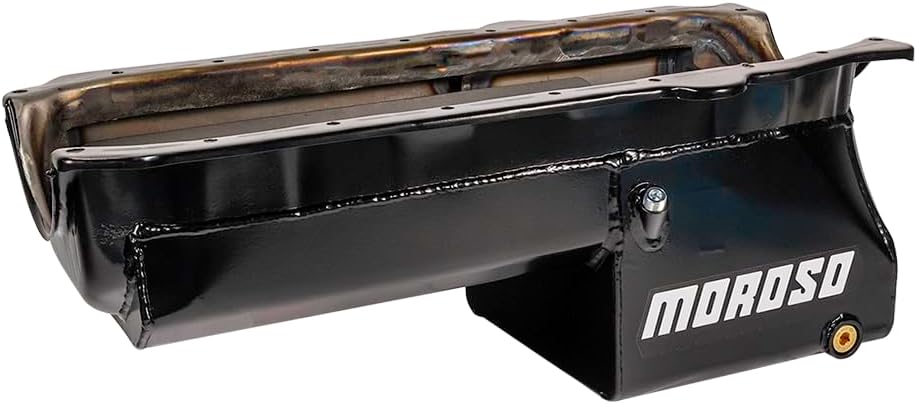

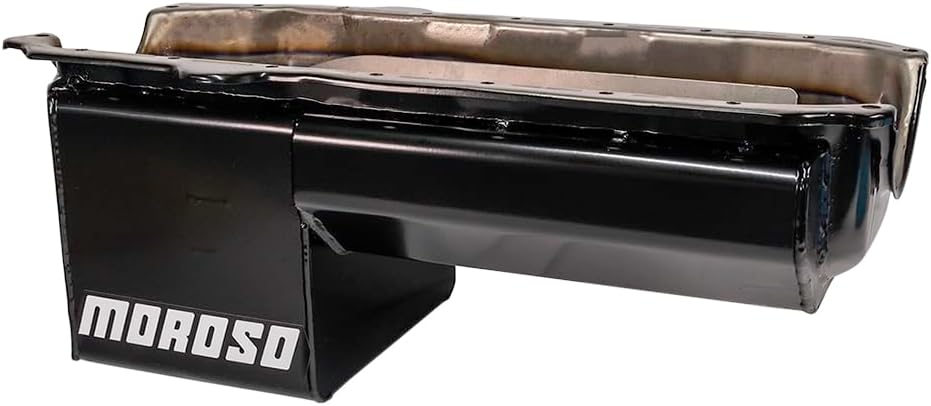

Moroso 21017 Deep Sump Oil Pan with Louvered Windage Tray

(Chevrolet Camaro 1972, 1976-77, Impala 1976-77, Malibu 1973-79, Chevelle 1965, 1968-73, Blazer 1969-79, Caprice 1973-77, 1979, C10 1961-79 + 16 more models)

Manufacturer

Part Number

21017
Black Friday Price

$581.61

In Stock (10)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Moroso 21017 deep sump oil pan is engineered for high-performance small block Chevy engines, delivering superior oil control and increased horsepower potential. This pan features a deep 8-1/4 inch rear sump and 4-3/4 inch front sump design with a passenger side kickout for maximum ground clearance and oil capacity.

Key Features:

  • Accommodates stroker cranks up to 4-inch stroke with steel connecting rods
  • Deep rear sump design (8-1/4 inches) for increased oil capacity and control
  • Passenger side kickout configuration for improved chassis clearance

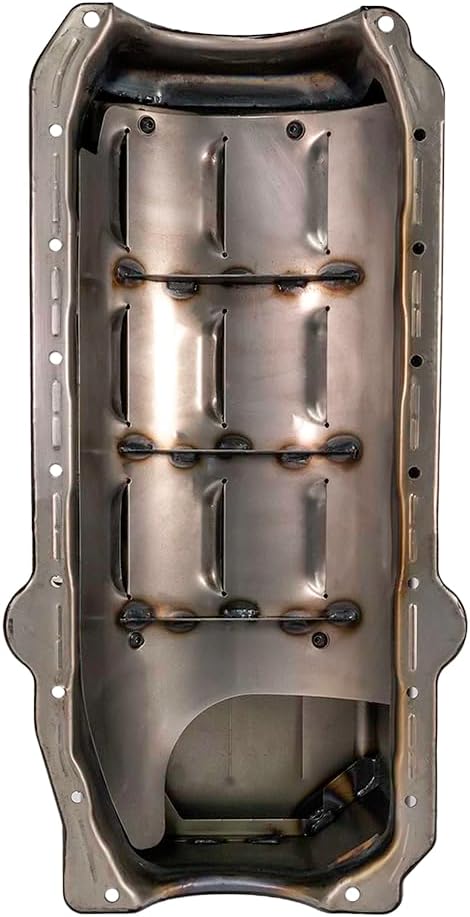

  • Solid louvered windage tray with main cap partitions for maximum oil control
  • Designed to minimize oil movement during hard acceleration and cornering
  • Core exchange required (core-based product)

This oil pan is ideal for drag racing, road racing, and other high-performance applications where consistent oil delivery and windage control are critical. The integrated louvered tray separates oil from crankshaft rotation, reducing parasitic power loss and ensuring proper lubrication under extreme conditions.

Products specifications

Fits

Chevrolet Camaro 1972, 1976-77, Impala 1976-77, Malibu 1973-79, Chevelle 1965, 1968-73, Blazer 1969-79, Caprice 1973-77, 1979, C10 1961-79, El Camino 1968-74, 1977, Nova 1973-79, Chevy II 1968, G20 1975-79, Bel Air 1962-75 + 11 more models

Baffled

Yes

Capacity

7 Quart

Color

Clear Zinc

Crank Scraper Included

No

Depth

8.25"

Dipstick Location

Driver side

Dipstick Provision

Yes

Drain Plug Thread Size

1/2-20 in.

Kicked Out

Yes

Kickout Position

Passenger side

Maximum Stroke with OE Rod

4.000 in.

Notes

Fits dipstick on either side. Remote pan-mounted 1/4 NPT dipstick. Use GM starter with 168-tooth fly

Oil Pan Capacity

7 quarts

Oil Pan Depth (in)

8.250 in.

Oil Pan Finish

Clear zinc

Oil Pan Material

Steel

Pickup Included

No

Quantity

Sold individually.

Rear Main Seal Style

2-piece

Stroker Clearanced

Yes

Sump Style

Wet
