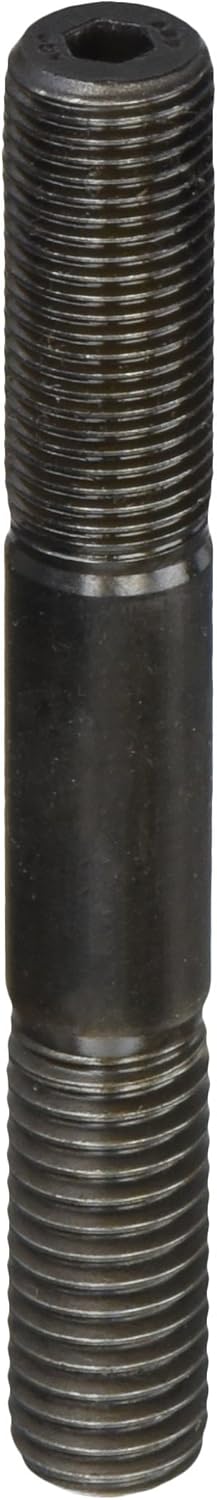

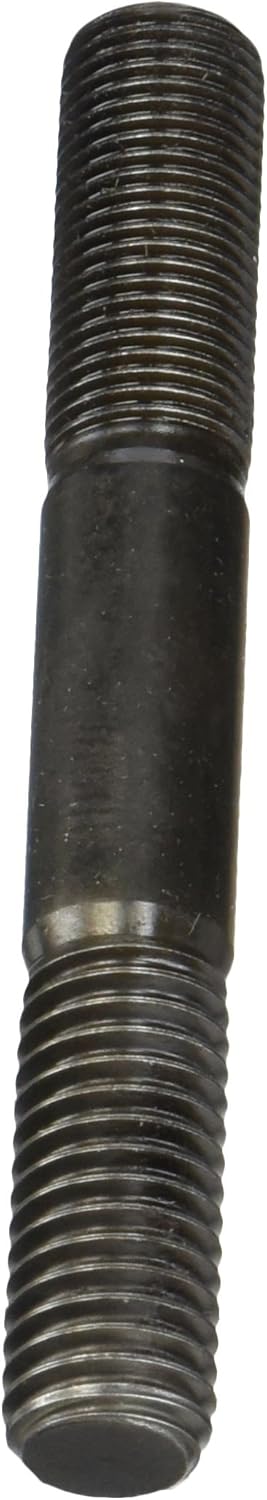

ARP 190-4003 Cylinder Head Stud Kit Chrome Moly Steel - 8740

The ARP 190-4003 head stud kit is engineered for high-performance and competition applications, delivering superior clamping force and reliability. Manufactured from premium grade 8740 chrome moly steel, these studs are heat-treated to 200,000 psi using a vertical rack process that ensures complete and uniform heat penetration throughout each fastener.

Key Features:

• Premium 8740 chrome moly alloy rated at 200,000 psi tensile strength
• Centerless ground after heat-treat for exceptional straightness and concentricity
• Thread rolled after heat-treat for 10x better fatigue strength compared to pre-heat-treat threading
• Hex head design for secure installation
• Includes hardened parallel-ground washers for even load distribution
• Select applications feature undercut short studs for equalized stretch and consistent clamping

Why Studs Over Bolts:

Head studs provide more accurate torque loading because they stretch only on the vertical axis during installation, unlike bolts which experience torsional twist. This results in more consistent clamping force and better cylinder head gasket sealing. Studs also simplify engine assembly by allowing the cylinder head and gasket to glide into perfect alignment.

Installation Notes:

Install studs finger-tight in a relaxed mode—never crank them in using a jammed nut. Apply torque to the nut only, allowing the stud to stretch vertically. Re-torque after initial engine run-in to compensate for head gasket compression.

Each stud is stamped with the ARP logo as assurance of quality and zero-defect manufacturing standards. This kit is trusted by professional engine builders across all forms of motorsports for competition powerplants.
