June Sale: $115.67
In Stock
May ship from manufacturer
Free Shipping

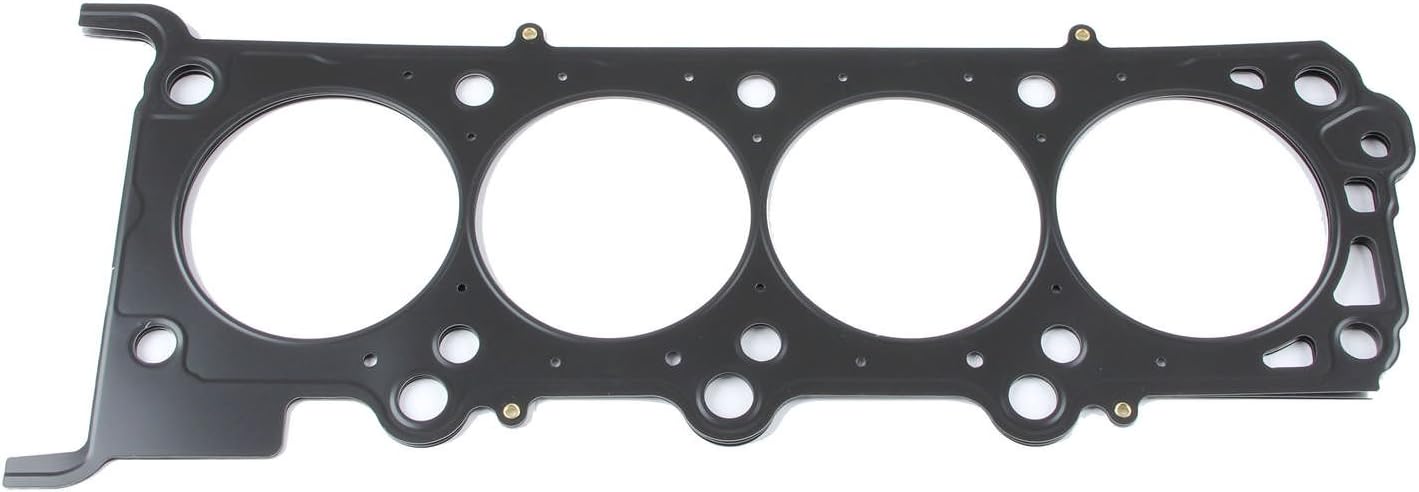

Part number: C5970-030
Product Details
Cometic C5970-030 in our Head Gaskets Deptartment
Products specifications
Bore 94mm
Bore (in) 3.700 in.
Bore (mm) 94.000mm
Calculator Compression Calculator
Compressed Thickness (in) 0.030 in.
Compressed Volume (cc) 5.286cc
Gasket Material Multi-layer steel
Lock Wire No
Material MLS
Notes 3 Valve engines. Right side only.
Quantity Sold individually.
Thickness .030in
Position Right
Bore Diameter 94mm
Engine Ford 4.6L Modular V8
Cylinder Head Type 3 Valve Head
Head Gasket
Right-Side Gasket

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.

The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.

The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.

A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.


Add your review
Shopping experience excellent (so far)!
Website is easy to navigate. Parts are easy to find. Checkout was very simple to use. Good overall service.
Lowest prices around the web and excellent customer service. The only real issue was the wait between placing the order and when it was shipped. Took 4 days but I chalk that up to the large amount of business they due to their prices being so competitive. For the lowest prices that I've seen I didn't mind waiting a bit longer!
Very fast shipping and product was secure in package to avoid damage....will be ordering from autoplicity again for sure. Also the price could not be beat.
Show All Reviews
Ford Mustang
2004 Ford Mustang Base / GT / GT Base / GT Equipado / Mach I / SVT Cobra
2003 Ford Mustang Base / Equipado / GT / Mach I / SVT Cobra / SVT Cobra 10th Anniversary
Lincoln Aviator
2004 Lincoln Aviator ALL / Base / Luxury / Ultimate
2003 Lincoln Aviator Base
